ASM AVS - USER MANUAL
PAGE 15 OF 182

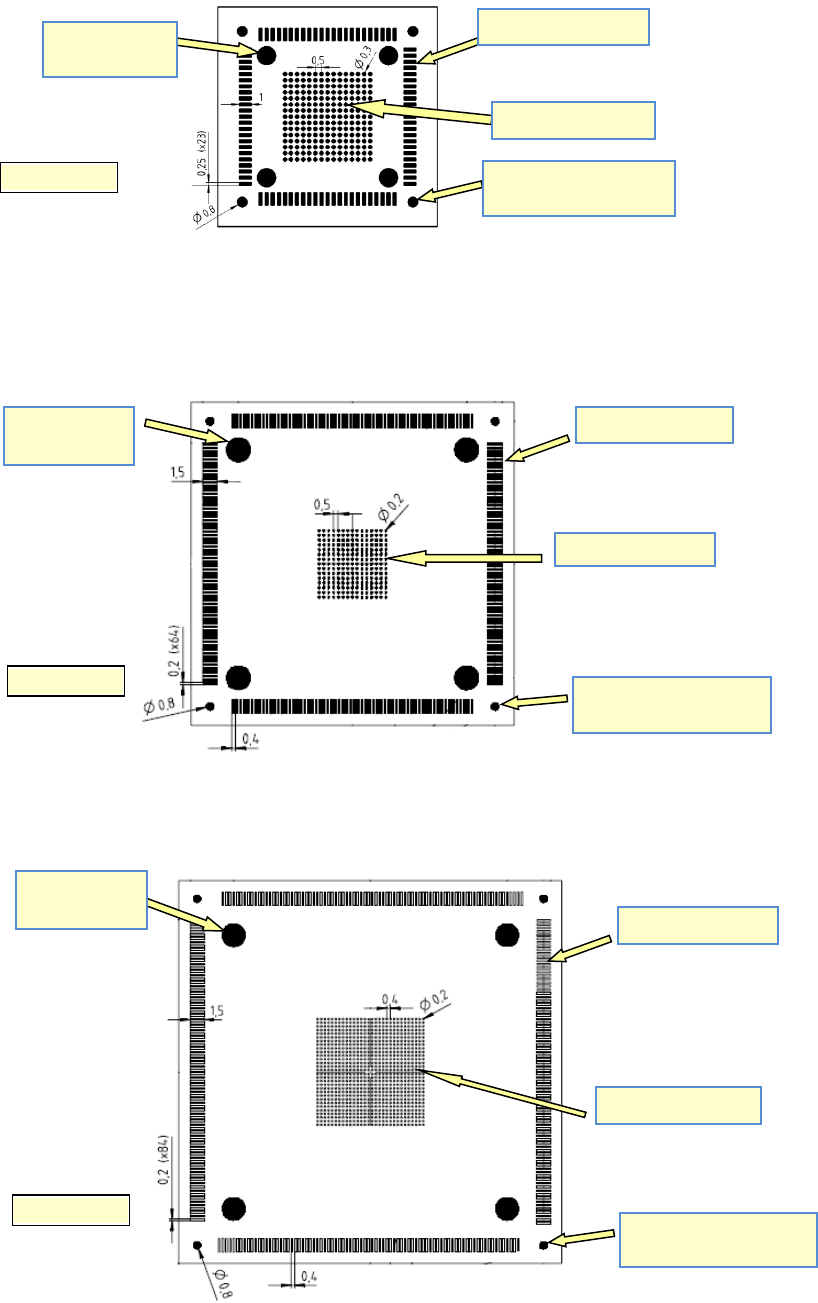

03063445-01 "GC AC 01" refers to components of size 18x18mm.
The following structures are applied to the underside of these components.
03063450-01 "GC AC 02" refers to glass components of size 32x32mm.
The following structures are applied to the underside of these components.
03063453-01 "GC AC 03" refers to glass components of size 42x42mm.
The following structures are applied to the underside of these components.
GC AC 01
QFP92-Structure
BGA225-Structure
Measurement fiducials
for SIIPLACE AVS
Solder bumps
(Leads)
QFP256-Structure
BGA225-Structure
Measurement fiducials
for ASM AVS
Solder bumps
(Leads)
GC AC 02
QFP336-Structure
BGA900-Structure
Measurement fiducials
for ASM AVS
Solder bumps
(Leads)
GC AC 03
ASM AVS - USER MANUAL
PAGE 16 OF 182
2.1.3.3 Trays for glass components:
There are two Trays with glass components in the standard accessories box.
• 03063444-01 Complete tray with 60 GC-AC-01
• 03063449-01 Complete tray with 40 GC-AC-02
For spare parts, see documentation Checklist AVS.
The form of the tray allows you, either to place the tray onto a tray holder (see 2.1.3.5 Tray
holder), or to place it into the conveyor of the SIPLACE machine like a PCB. Therefore see ad-
ditional instructions under 2.1.3.6 Tray in the PCB conveyor.
2.1.3.4 Adapters for tray on the WPC / MTC
To use a Tray on a WPC/MTC an additional adapter is needed to be able to align the tray on
the tray carrier plate. These adapters are always with the Tray and have to be removed from
it, if using the tray on another tray carrier (2.1.3.5 Tray holder) or in the conveyor (2.1.3.6).
• 03069672-01 „Adapter long ACT Tray on WPW/MTC“
• 03069673-01 „Adapter short ACT Tray on WPW/MTC“
2.1.3.5 Tray holder
There are two tray carriers in the standard accessories box. These are to place the Trays (see
2.1.3.3 Trays for glass components:) on the tables of the Siplace.
• 03059291-01 „Tray holder X“
• 03059289-01 „Tray holder S“

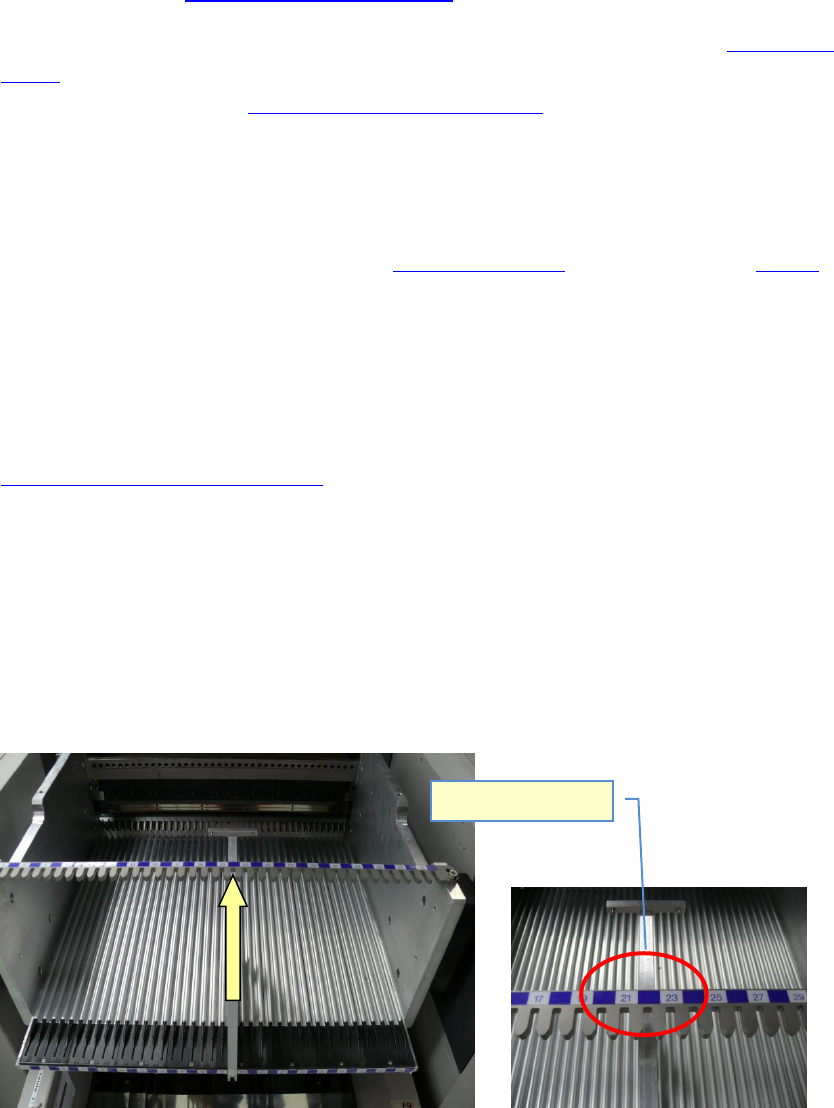

2.1.3.5.1 03059291-01 „Tray holder X“
This tray holder is to use in X-Machines with X-tables.
The design of the tray carrier follows the concept of an X-Feeder.
and has to be set up in the same way like standard X-Feeders.
Place on Track 22
ASM AVS - USER MANUAL
PAGE 17 OF 182
Once the tray carrier is placed on the table, the tray can be placed.
For security, the Tray can be fixed on the backside with the part:
03067242-01 Protection block
Move the tray holder forward
to the front end of the table,
until the pin on the front side of
the carrier moves into the X-
FCU hole.
Set the tray onto the carrier
(centered) and move it onto the
two pins of the carriers T-part.
To fix the tray with the 03067242-01 „safety
block“, you can use the 03031104-01 „DIN
464 M4 x 16 units (knurled-head bolts)“,
which you get from the tray’s cover.
