7.3 Vision parameter settings for component shapes (GF)
All settings for the Vision parameters for the various component shapes on the different ana-
logue cameras are shown in tabular format below.
These values form a database. However, the illumination values in particular also depend on the
individual camera.
NOTICE
With older machines in particular, it is generally recommended that an FCCS is carried out prior to a ma-
chine capability analysis in order to adjust the camera illumination to a standard value. This establishes a
basis for comparison.

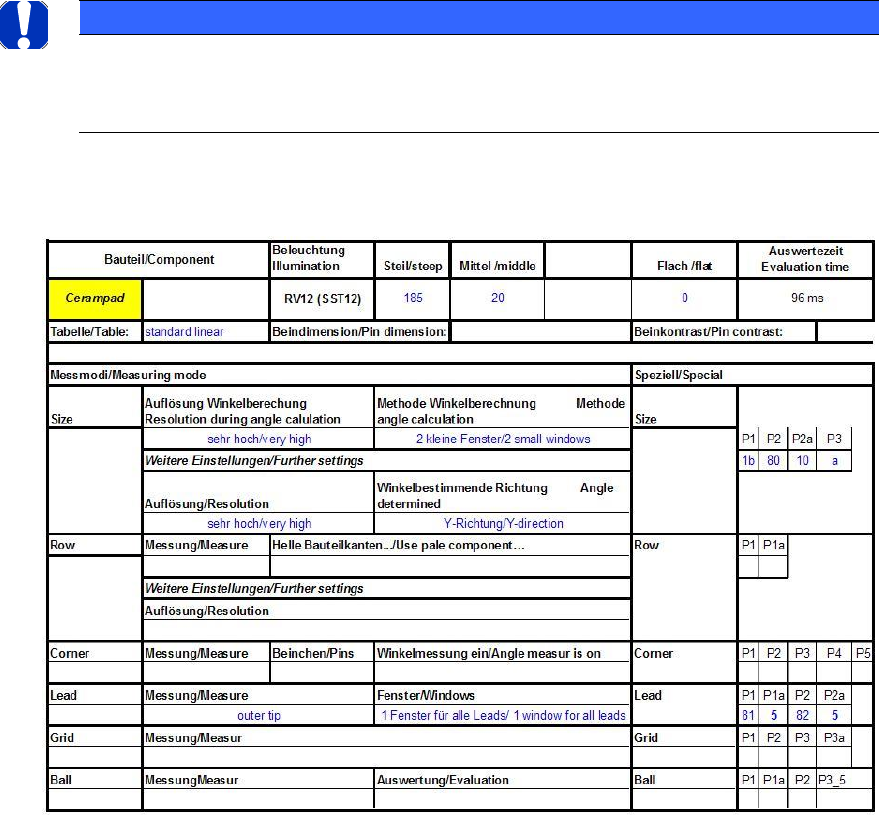

7.3.1 SST12 and SST14 => RV12 head on ICOS machines (analog Vision)
ASM AVS - USER MANUAL
PAGE 166 OF 182
ASM AVS - USER MANUAL
PAGE 167 OF 182
7.3.2 SST13 and SST14 => RV6 Kopf on ICOS machines (analog Vision)
