ASM AVS - USER MANUAL
PAGE 22 OF 182

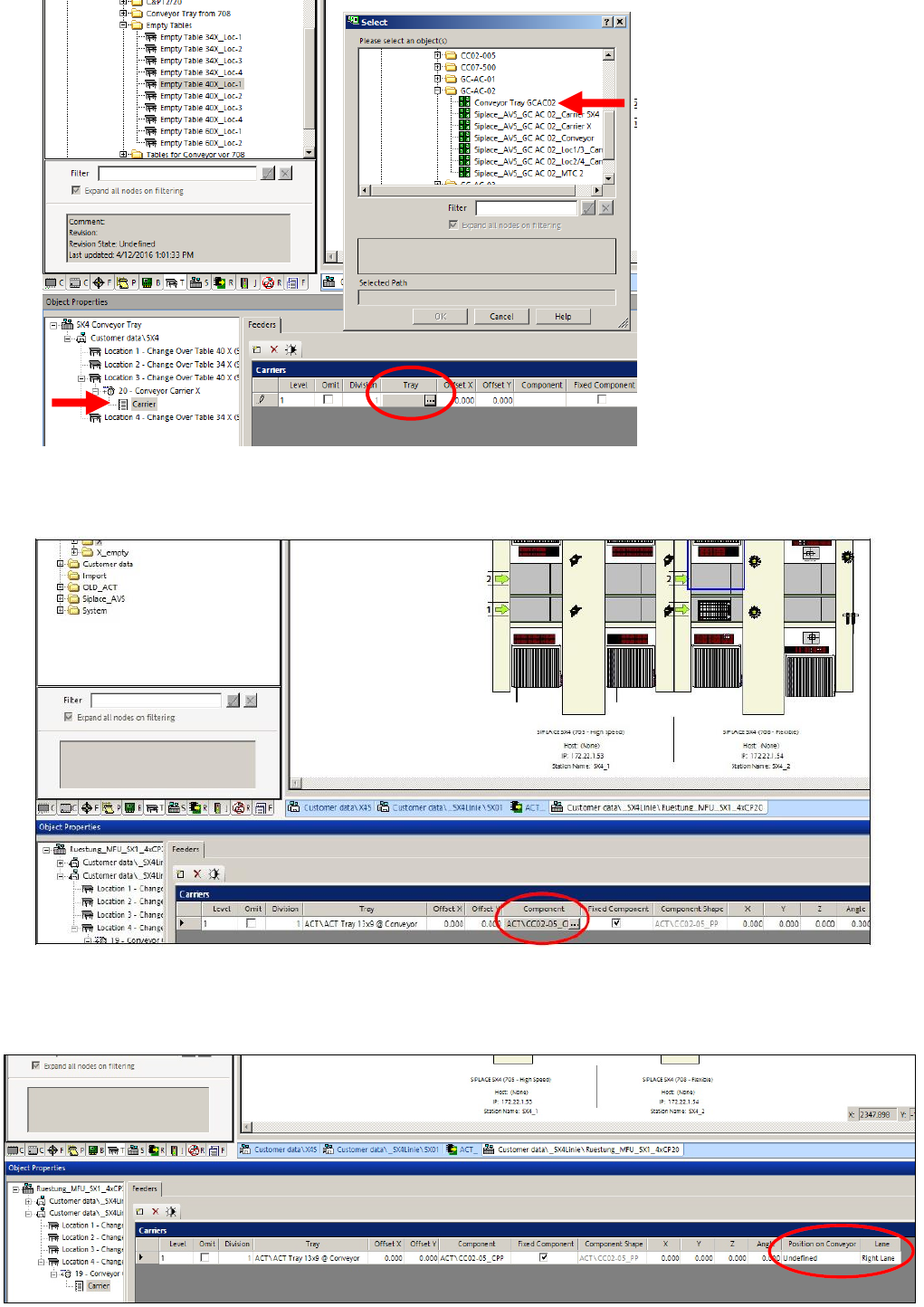

• Then select the component you want to feed in the tray.
For determining the position of the tray in the conveyor, the two Position on Conveyor and
Lane parameters have to be considered.
ASM AVS - USER MANUAL
PAGE 23 OF 182
Position on the conveyor
This parameter is required for the single conveyor mode.
Conveyor lane
This parameter is required for the dual conveyor mode.
Left lane (2)
Right lane (1)
Tot he left of the board
To the right oft he board
Behind the board
In front of the board
NOTICE
2TPick up positions
You do not have to enter any offset values.
By using the Conveyor Carrier X tray carrier, the pickup position is automatically specified by the board
reference corner in the machine.
ASM AVS - USER MANUAL
PAGE 24 OF 182
2.1.3.6.3 Restrictions
• Tray in Conveyor for ACT for X-tables only
The Option Tray in Conveyor is only possible for machines with X-tables.
The option cannot be set up for S-tables.
Reason:
– Station Software 60x is not equipped with the new functions.
– Station Software 70x cannot operate S-tables.
Possible: X-series S, SX-series, DX-series, X-series with X-tables.
Not possible: D-series, X-series with S-tables.
• Number and position of the components in the tray
Feeding the tray In front of Board or Behind Board (see the position on conveyor parame-
ters), is only possible with SX1/2 and DX1/2 machines.
• Make sure that the components are correctly inserted into the tray.
• Adapt the tray description, because pickup will only be possible from a few rows.
Additionally, a "short adapter" [03055995S01] is required to connect the glass plate with the
tray on the short side.
