15 2. En ter number of memories to be run in sequence (ex. 1 to 3) 3. To uch the “ Sequence M ode ” icon 4. To uch the Check Mark icon to save 5. To uch the X icon to exit The screen will look similarly to the screen bel…

3. Enter the delay time (ex. 5000 ms)

NOTE: The minimum delay time is 15ms

4. Touch the “Continuous Run” icon

5. Touch the Check Mark icon to save

6. Touch the X icon to exit

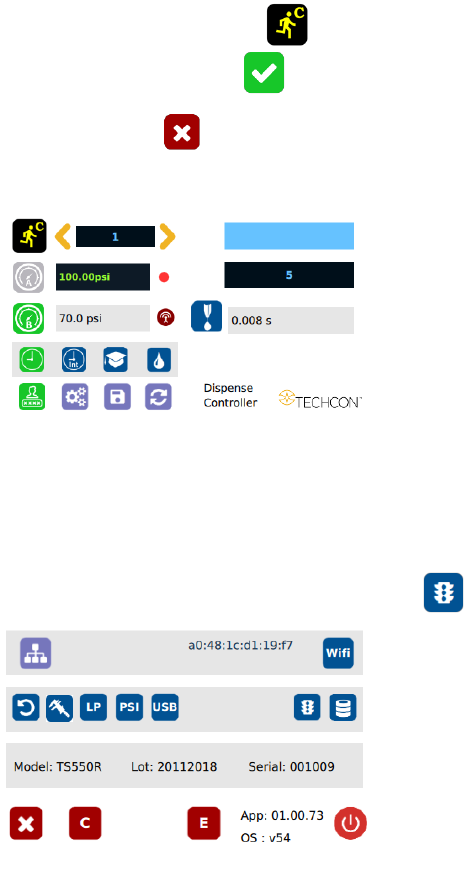

The screen will look similarly to the screen below:

Note: If the controller is set to activate memory cell 1 and the delay time is

set at 5000 ms, the controller will activate memory 1 continuously with

5000 ms delay between each activation.

5.3.3 To run in Single Sequence Mode

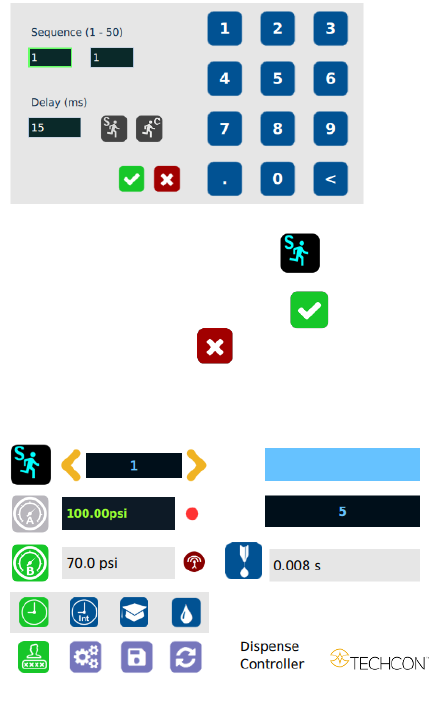

1. Touch the “Run Method” icon to enter sequence mode setup

2. Enter number of memories to be run in sequence (ex. 1 to 3)

3. Touch the “Sequence Mode” icon

4. Touch the Check Mark icon to save

5. Touch the X icon to exit

The screen will look similarly to the screen below:

Notes:

A. If there is no delay time entered in the setting, the operator has

to press the foot switch or touch the Run icon after each

memory cell is completed to activate the next memory cell.

B. If delay time is entered in the setting, the controller will activate

the next memory cell in sequence automatically. Delay time

must be at least 15 ms.

5.3.4 To run in Continuous Sequence Mode

1. Follow steps 1 to 2 above and enter the waiting time “delay time” between

each activation.

2. Touch the “Sequence Mode” icon

3. Touch the “Continuous Mode” icon

4. Touch the Check Mark icon to save

5. Touch the X icon to exit

The screen will look similarly to the screen below:

Note: If the sequence mode is set to activate memory cells 1 – 3 and the

delay time is set at 5000 ms, the controller will activate memory 1 to 3

continuously with 5000 ms delay between each activation. The delay time

must be at least 15 ms.

5.4 Cycle Counter

The cycle counter records the numbers of automatic dispense cycle being

activated. Up to 999,999 cycles can be recorded. To reset the counter, follow

steps below:

1. Touch the Setup icon to enter the setup screen

2. Touch the Counter Reset icon to reset the counter
