9 Note: The digital values shown at “0 ” and “100” icons are f or reference only. The actual calibrated va lu es will be different 7. Touch the Reboot icon to save the setting s and reboot the system 8. Wait until the sy…

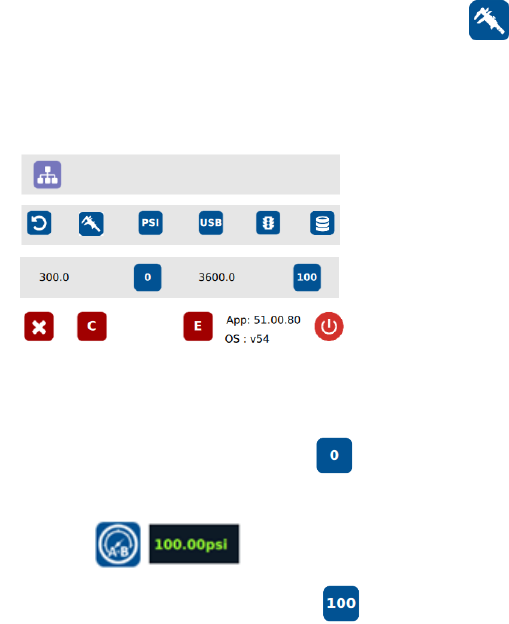

5.1.2 Pressure Calibration

Note: Pressure calibration must be performed when the unit is activated for

the first time.

1. Using a pressure gauge, verify that the input pressure line is delivering

approximately 100 psi

Note: If input pressure is not 100 psi, calibration will result in a

mismatch between the display pressure and the actual pressure on output

port B

2. Once you have verified input pressure, touch the Calibration icon

to enter calibration screen.

Please keep in mind that the exact pressure being fed must be indicated

correctly in this menu prior to calibrating the pressure. Not doing so may

cause the pressure display to show the incorrect pressure.

3. Turn pressure adjustment knob counterclockwise until the wheel can no

longer be turned.

4. Touch the 0 icon to set the pressure to 0

5. Turn pressure adjustment knob clockwise until display output pressure is

100 psi

6. Touch the 100 icon to set the pressure to 100

Warning: Do not turn knob all the way clockwise. 100 psi upper bound should

be set as soon as display output pressure goes from 99 to 100 psi. Continuing

to turn knob clockwise despite pressure on display already being set at

100psi will result in incorrect output pressure readings if the 100 icon were to

be pressed at that time.

Note: The digital values shown at “0” and “100” icons are for reference only.

The actual calibrated values will be different

7. Touch the Reboot icon to save the settings and reboot the system

8. Wait until the system completes the rebooting sequence and the home

screen is displayed

The unit is now calibrated and ready to operate

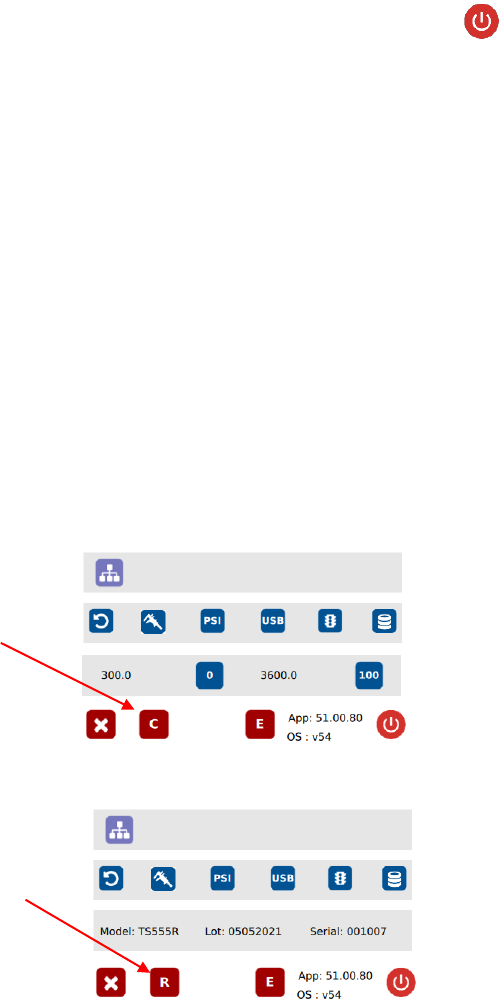

5.1.3 Controlling Mode

The TS555R can be used as stand-alone controller or integrated to any

robot/automation system.

A. To use as Stand-Alone Controller:

Go to setup screen to check for controlling mode. If the icon “C” is

showing, then it is already set as stand-alone controlling mode. If the

icon “R” is showing, press this icon to change to “C”

B. To use as integrated controller to robot/automation

Press icon “C” to change to “R”

Note: Users will experience inconsistent dispensing and intermittent

behaviors with their dispensing valves if attempting to run the TS550R

in controller mode when interfacing with the robot.

Stand-alone controlling

mode

Robot mode (integrate

to robotic system)

5.2 DISPENSING

5.2.1 Pressure Adjustment

Note: Pressure in Port A is not regulated. It has the same pressure as the

supplied pressure. Port A is used for valve activation pressure. Make sure

the supplied pressure is set at least 70 psi (4.8 bar). Pressure in Port B is

regulated. It provides constant pressure to feed fluid to the valve.

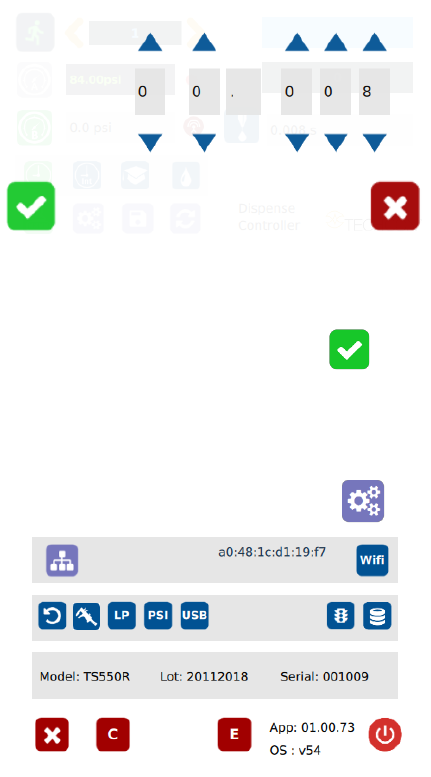

To adjust pressure in port B:

1. Touch the “Pressure B” icon to enter the pressure setup screen

2. Touch the Up and Down arrows to set desired fluid feed pressure

3. Touch the Check Mark icon to save and exit

5.2.2 To Change Pressure Unit Display

Note: The default pressure unit is PSI. To change pressure unit to BAR,

follow the instructions below.

1. Touch the Setup icon to enter the setup screen
