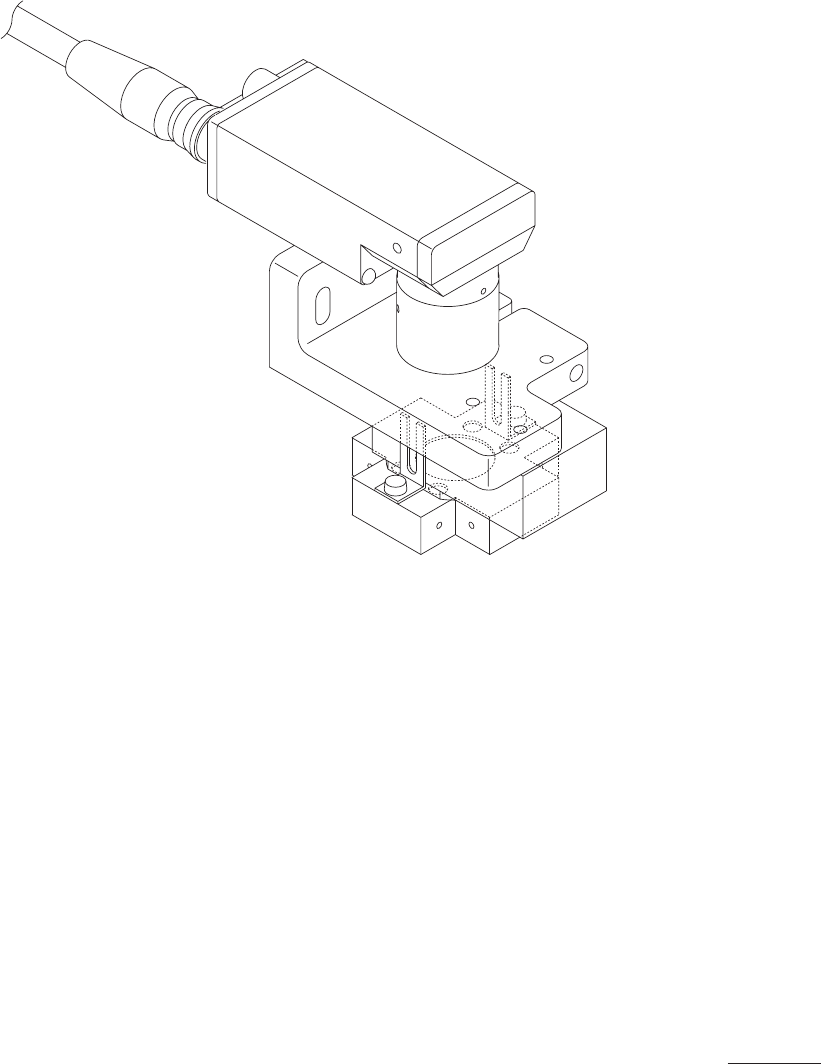

P -S104-05 1006-002 6 51 52 53 41 See Fig.G-1 Key No.19 51 52 53 基板認識部 PEC RECOGNITION SECTION Fig. G-1 基板認識Ｘ軸 PEC Recognition X Axis
P -S104-05
1006-002
5
P -S104-05 P -S104-05
印刷状態検査機能
Printing Inspection Function
P -S104-05
1006-002
6
51
52
53
41
See Fig.G-1
Key No.19
51
52
53
基板認識部
PEC RECOGNITION SECTION
Fig. G-1
基板認識Ｘ軸
PEC Recognition X Axis
P -S104-05
1006-002
7
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-1
41 6301163512 LIGHTING UNIT 1
831G-A110010-A001
4Z110111
51 6300007602 BOLT,HEX-SCT 4 M4X6 221A0015
52 4111412905 WASHER SPR 4 4 SW4 221H0284
53 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
