8 Repairs to SmartFeeder 2x8 mm X / Xi 8.9 Foil rocker 222 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 8.9.3 Individual foil rocker parts Fig.69: Individual foil rocker…
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.9 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 221

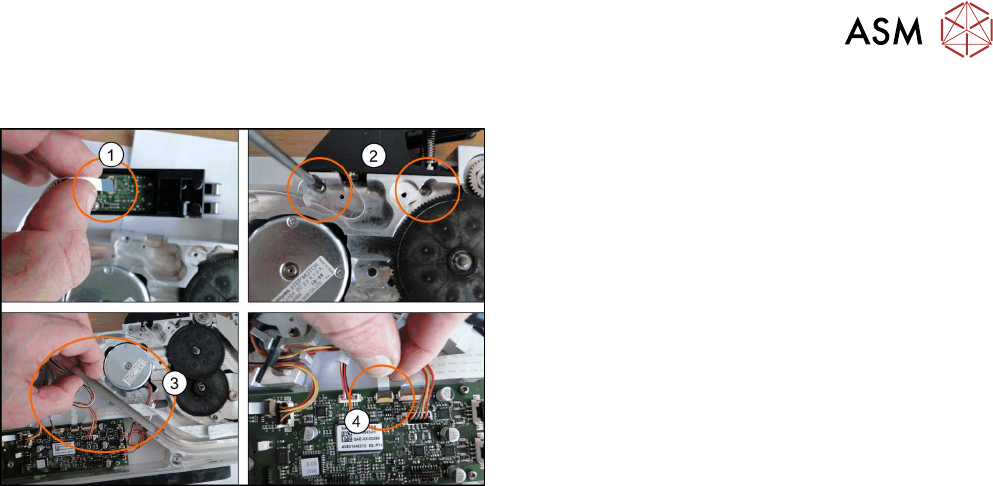

8.9.2.2 Fitting the light barrier emitter cable
Fasten the new cable at the same positions as the old
cable.
► Attach the cable to the foil rocket connector.(1)
Insert the end of the flat ribbon cable (with the
blue side pointing upwards) as far as the stop in
the marked flat ribbon connection.
Fold the connection closed and make sure that
the cable is securely fitted.
► Fix the foil rocker into place with two TORX
screws. (2)
► Replace the tape duct, making sure that the
cable is at the bottom.(3)
► Connect the cable to the main board. (4)
Insert the end of the flat ribbon cable (with the
blue side pointing upwards) as far as the stop in
the marked flat ribbon connection.
Fold the connection closed and make sure that
the cable is securely fitted.
► Refit the left and right side covers (see 8.3.2 "Fit-
ting the Left Side Cover" [}175], 8.3.4 "Fitting the
Right Side Cover" [}176]).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.9 Foil rocker
222 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

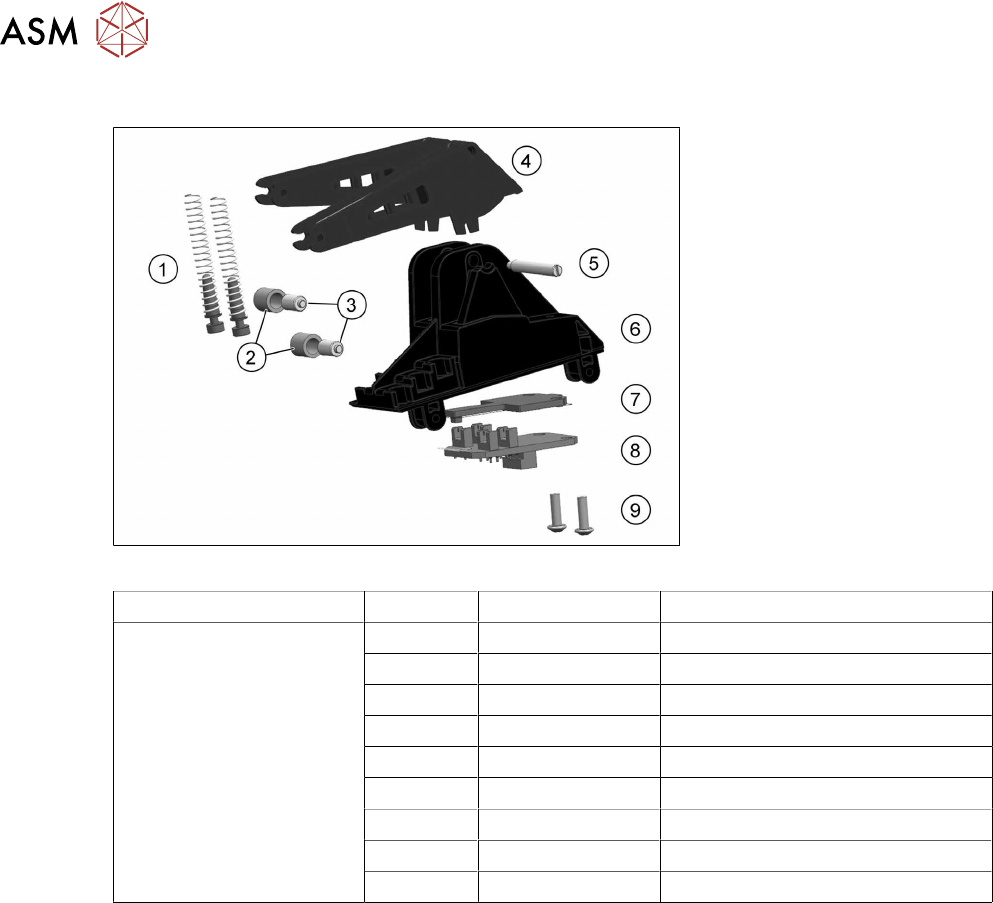

8.9.3 Individual foil rocker parts
Fig.69: Individual foil rocker parts
Feeder module Position Item no. Designation
SmartFeeder 2x8mm X
SmartFeeder 2x8 mm Xi
1 03075720-xx Spring pin with spring/X2x8mm
2 03003143-xx Roller /foil disposal X8
3 03067456-xx Roller axis for rocker/X2x8
4 03066482- xx Foil rocker/X2x8
5 03061563-xx Bearing shaft for rocker /X2x8
6 03074758-xx Rocker bearing / X2x8
7 03076204-xx Distance plate 1.7 mm
8 03063457-xx Light barrier emitter flat assy. X2x8
9 03033797-xx RF-SN75-2.5 x 8-9.8
Tools required
●
Phillips screwdriver
●
Small flat-bladed screwdriver
●
Tweezers
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.9 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 223

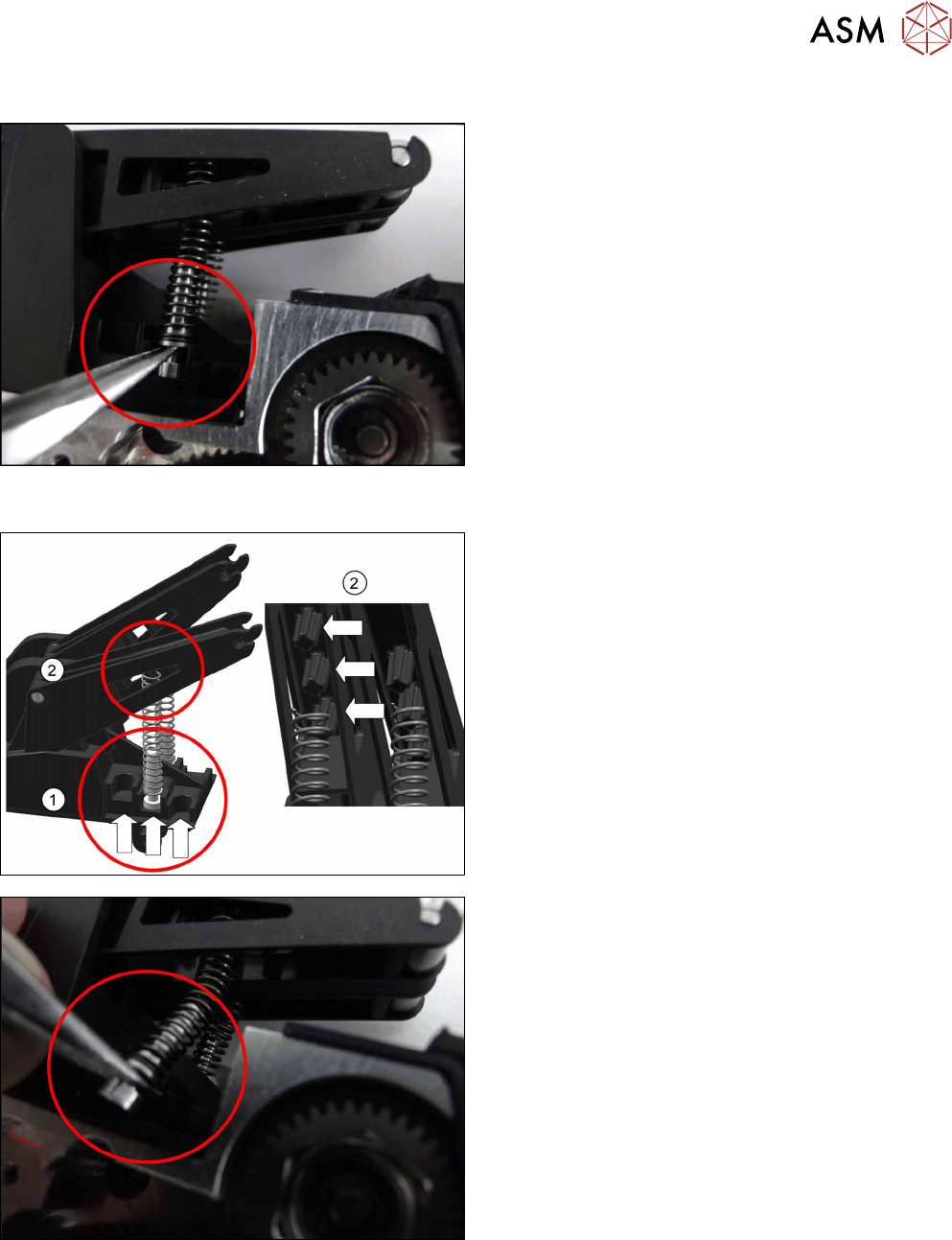

8.9.3.1 Removing the Spring Pin with Spring
► Remove the spring pin with a pair of tweezers.
► Remove the spring pin with spring.
8.9.3.2 Fitting the Spring Pin with Spring
The rocker bearing has 3 different positions for the
spring pin.(1)
The higher you position the spring pin, the greater the
tension on the foil will be.
There are 3 pins in the foil rocker, opposite to these 3
positions, so that the spring can be positioned exactly
over the spring pin.(2)
Select the position you want for the spring pin, de-
pending on the required foil tension.
► Insert the spring onto the pin in the foil rocker
which is vertically opposite to the spring pin posi-
tion you chose.
► Use a pair of tweezers to insert the spring pin into
the chosen position in the rocker bearing.
