8 Repairs to SmartFeeder 2x8 mm X / Xi
8.16 Handle with control panel
236 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

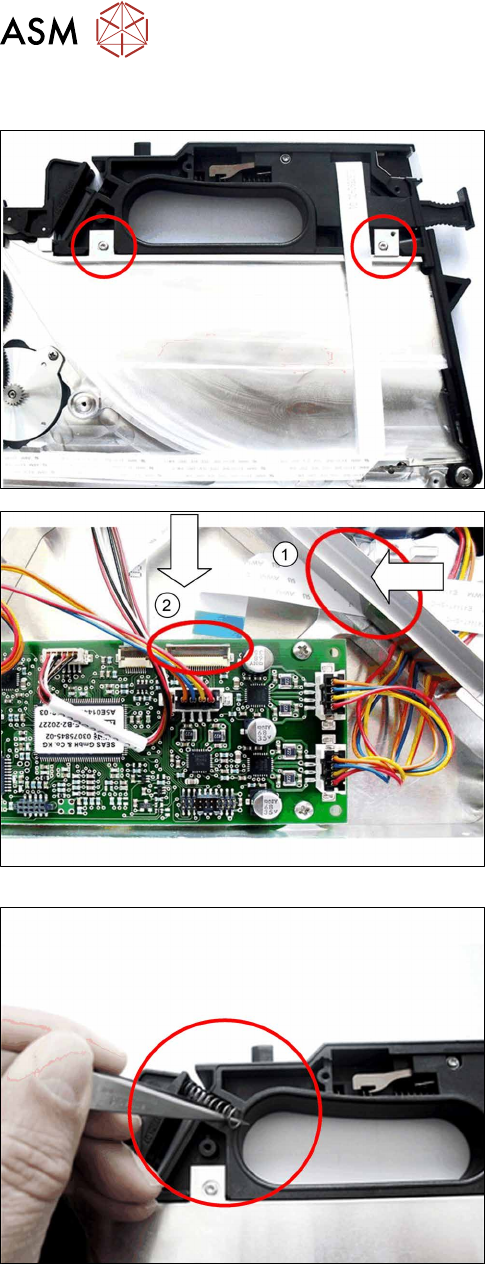

8.16.2 Fitting the handle assembly
► Stand the feeder module up.
► Open the foil disposal flap.
► Push the handle from the right-hand side, as far
as the stop in the feeder module frame.
► Close the foil container flap.
► Place the feeder module carefully down on its
right side
► Fasten the handle using the two marked (see dia-
gram) screws with 0.6Nm.
► Fold the flat ribbon cable in exactly the same way
as the old cable.
► Run the cable and press it into the cable duct and
onto the double-sided adhesive tape. Replace
the adhesive tape if required.
► Carefully insert the flat ribbon cable completely
through the feedthrough on the tape duct.(1)
When running the cable, make sure that the blue
side points upwards at the end of the cable.
► Insert the end of the flat ribbon cable (with the
blue side pointing upwards) as far as the stop in
the marked flat ribbon connection on the control
board.(2)
► Close the connection and make sure that the
cable it firmly fitted.
► Fit the two pressure springs into the rockers.
► Fasten the cover on the foil container.
► Fasten the left and the right side covers (see
8.3.2
"Fitting the Left Side Cover" [}175] and
8.3.4
"Fitting the Right Side Cover" [}176]).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.16 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 237

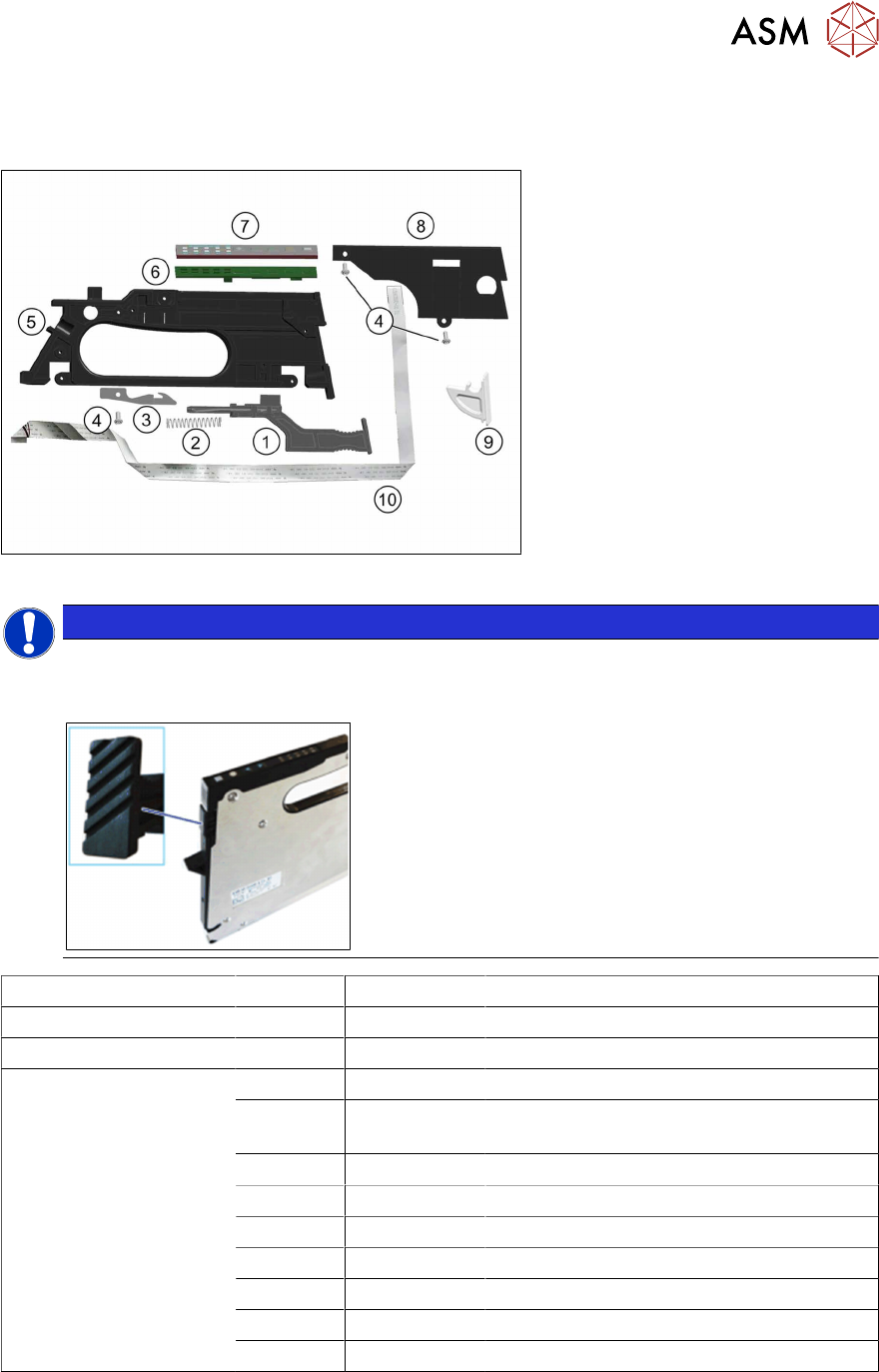

8.16.3 Individual parts on the handle
Spare parts required
Fig.78: Individual parts on the handle SmartFeeder 2x8 mm X/Xi
NOTICE
Other slide for SmartFeeder 2x8 mmXi
In order to visually differentiate Xi feeder modules from the "normal" X feeder modules, a
different slide is used, with a clearly corrugated surface on the outside.
Feeder module Position Item no. Designation
SmartFeeder 2x8mmX 1 03092491-02 Slide assy. X24-104
SmartFeeder 2x8mmXi 1 03172631-01 Slide assy. X2x8i
SmartFeeder 2x8mmX
SmartFeeder 2x8 mm Xi
2 03009150Sxx Pressure spring VD-090V
3 03147373-01 Sleeve retaining spring X24-104Smart
curved
4 03033796-01 RF-SN75-2.5 x 6-9.8
5 03113312-01 Handle base X24-104
6 03167407-02 PCBA control panel X2x8 v4
7 03167618-01 Assembly spacer control panel X2x8 V4
8 03113588-01 Cover, handle X24-104
9 03110496-01 Window for control panel
10 03063592-01 Cable control panel X2x8
Tools required
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers or flat pliers
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.16 Handle with control panel
238 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

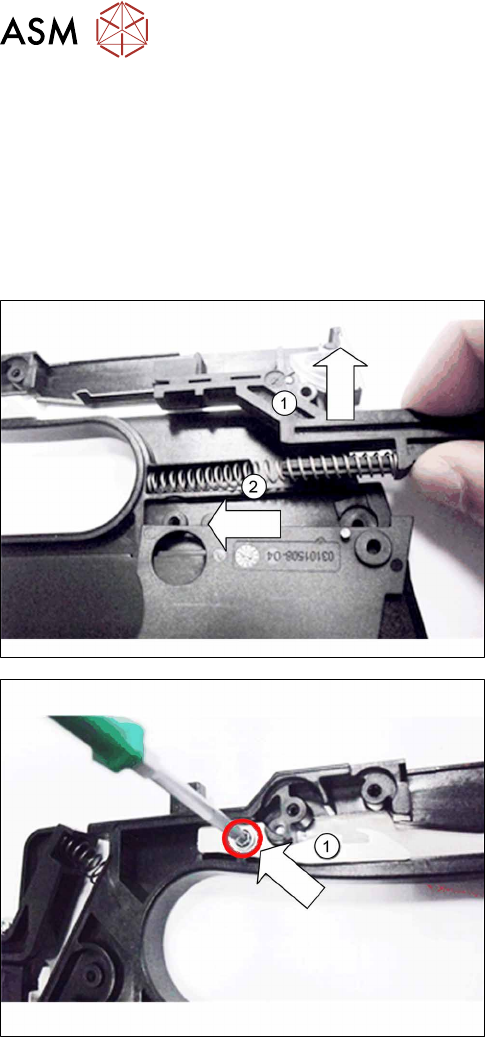

8.16.3.1 Removing individual parts from the handle
► Carefully place the feeder module with the right side down on a stable, level and clean sur-
face.
► Remove the left side cover (see 7.3.1 "Removing the Left Side Cover" [}102]).
► Remove the operating panel (see 7.15.2.1 "Removing the Control Panel and Board" [}152]).
If you have removed the operating panel, the cover on the foil stuffing unit will be accessible and
can be replaced if necessary.
► Pull the slide up and out of the handle. (1)
► Remove the pressure spring. (2)
► Remove the screw which fastens the spring
hook(1)
to the handle.
► Remove the spring hook.
