7 Repairs to SmartFeeder 8 mm X / Xi 7.6 Splice sensor Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 115 7.6 Splice sensor NOTICE Removing retrofitted splice sensors Each …

7 Repairs to SmartFeeder 8 mm X / Xi

7.5 Pickup window

114 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

► Fasten the actuator axis with a fitting screw

Use a 1.5mm Allen key for this.

► Fasten the pickup window (see 7.5.2 "Fitting the

pickup window" [}111]).

7 Repairs to SmartFeeder 8 mm X / Xi

7.6 Splice sensor

Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 115

7.6 Splice sensor

NOTICE

Removing retrofitted splice sensors

Each SmartFeeder 8mmX is prepared for using a splice sensor, although it is supplied

without the splice sensor. To re-establish this delivery state, you need to remove any retro-

fitted splice sensors before you send the feeder module back to the manufacturer for re-

pairs.

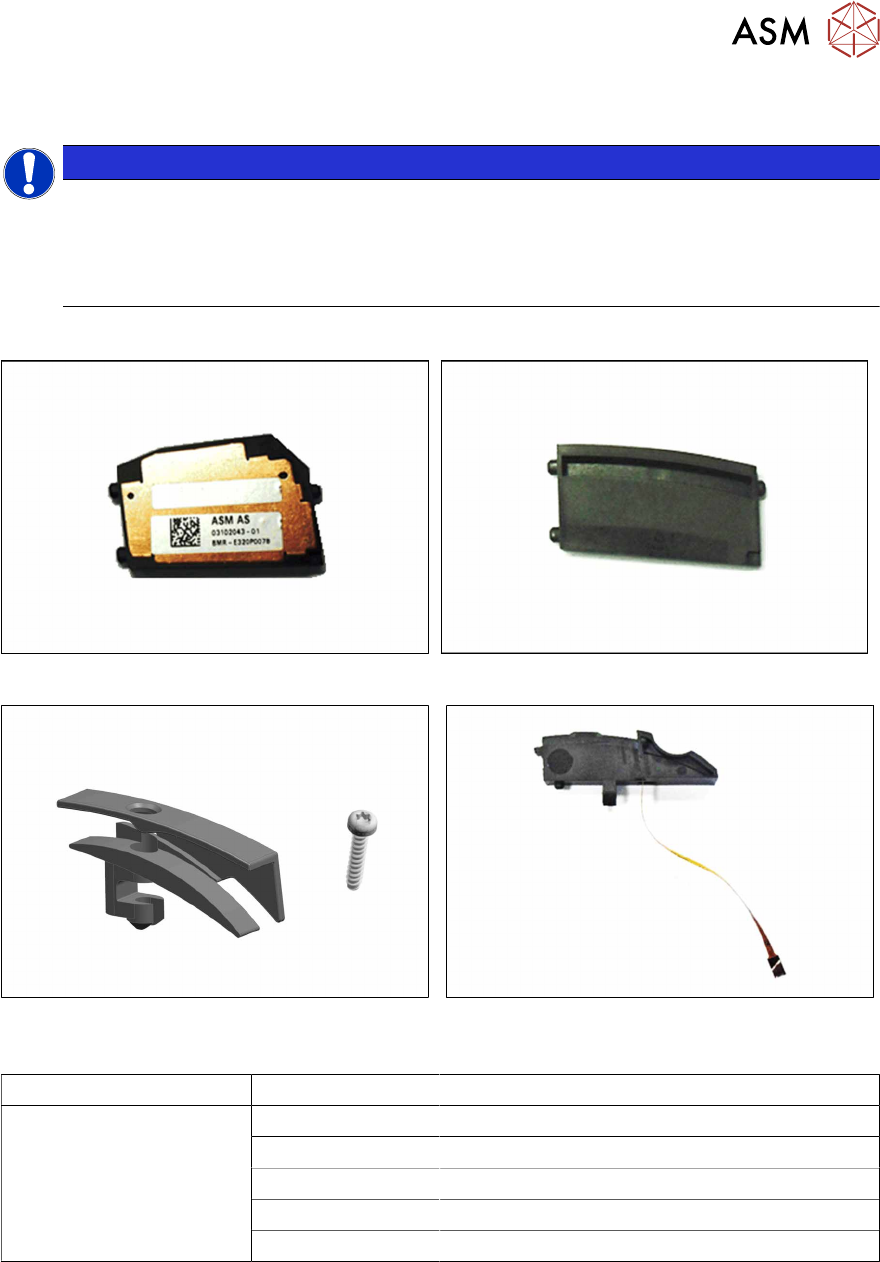

Spare part required

Splice sensor Dummy splice sensor



Sensor insertion tunnel X8Smart

Screw RF-SN65-2.5 x 12-9.8

Splice sensor filling piece assy.

Feeder module Item no. Designation

SmartFeeder 8mm X

SmartFeeder 8 mm Xi

03107028 -xx Splice sensor X8Smart assembly

03104558 -xx Dummy splice sensor X8Smart

03127503-xx Sensor insertion tunnel X8Smart

03033496-xx RF-SN65-2.5 x 12-9.8

03097801-xx Splice sensor filling piece assy.

Tools required

●

TORX screwdriver 0.6Nm, size T8

7 Repairs to SmartFeeder 8 mm X / Xi

7.6 Splice sensor

116 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

7.6.1 Replacing the Dummy with a Splice Sensor

► Place the feeder module in a stable, upright posi-

tion.

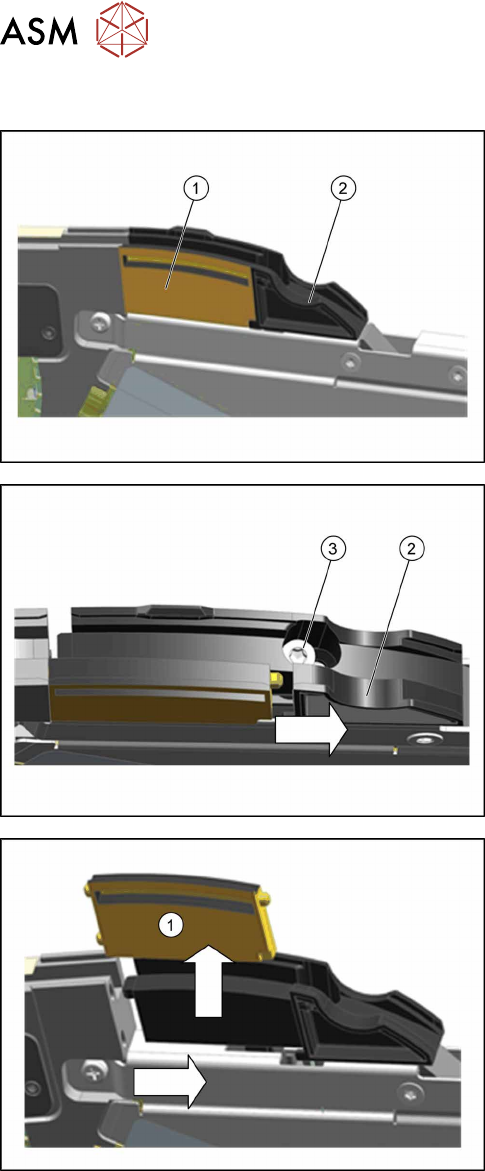

The dummy splice sensor(1) is located behind the

pickup window and is held by the "splice sensor filling

piece"(2)

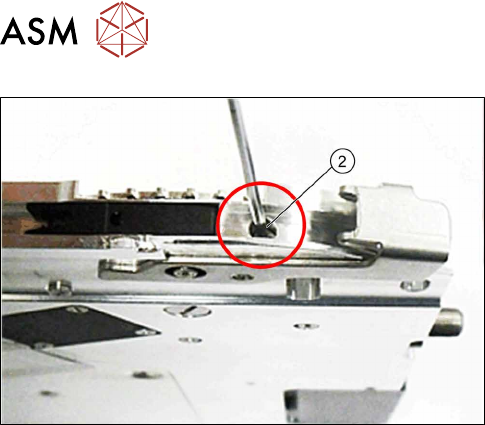

► Remove the TORX screw(3), fastening the filler

piece(2)

► Move the filling piece in the direction of the arrow

until you reach the right-hand stop.

► Push the dummy splice sensor (1) next to the

filling piece until the two pins on the front of the

dummy is free.

► Pull the dummy up and out.
