7 Repairs to SmartFeeder 8 mm X / Xi 7.6 Splice sensor 122 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 7.6.3 Performing a function test Prerequisite: to test the splice …
7 Repairs to SmartFeeder 8 mm X / Xi
7.6 Splice sensor
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 121

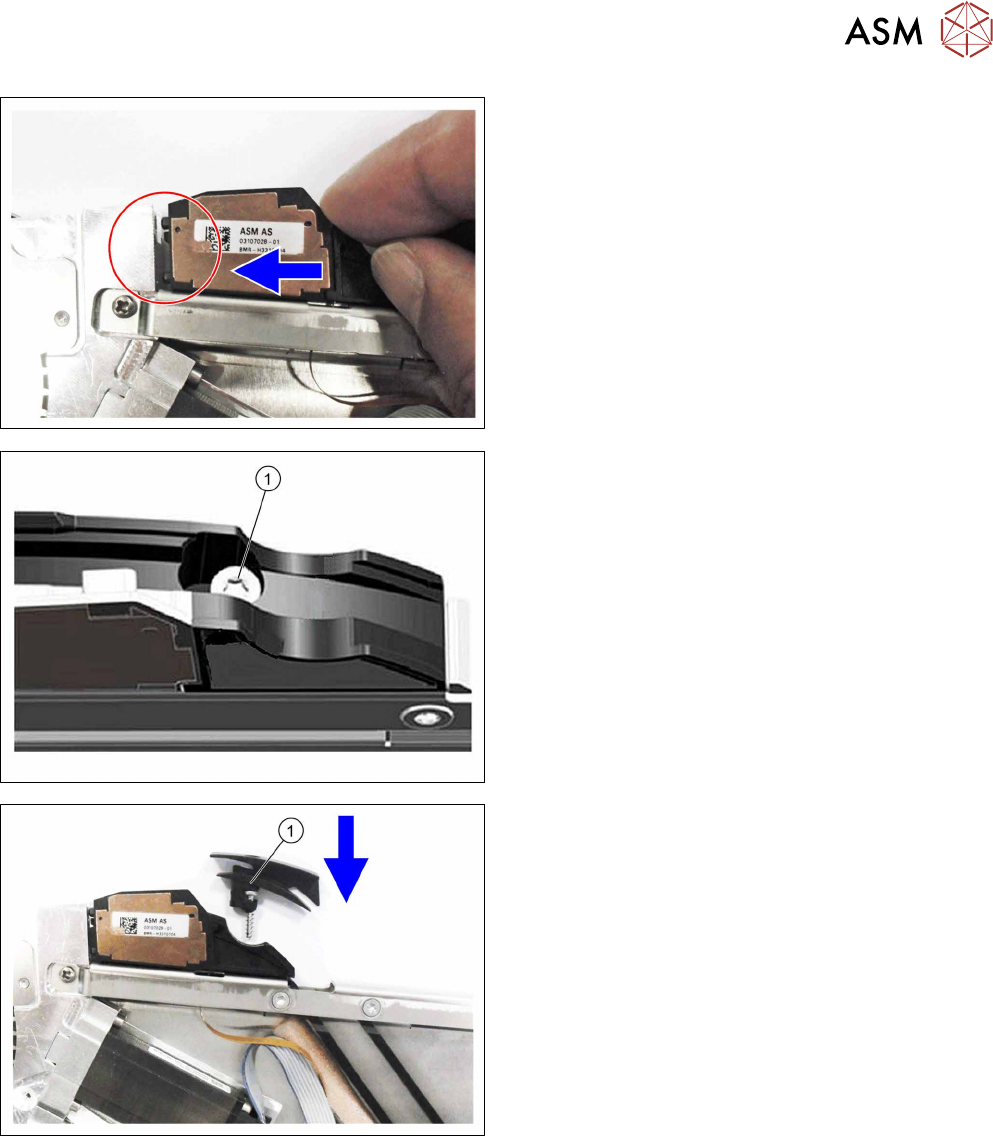

► Push the splice sensor together with the filler
piece in the direction of the arrow, as far as the
end stop on the left, so that the fixing pins of the
splice sensors are completely inserted into the
holes.
For feeder module without sensor insertion tunnel:
► Fix the filler piece with the TORK screw as
marked in the diagram RF-SN65-2.5x12(1)
.
► Fit the left side cover (see 7.3.2 "Fitting the left
side cover" [}102]).
For feeder module with sensor insertion tunnel:
► Insert the sensor insertion tunnel and the TORX
screw RF‑SN65‑2.5x12(1)
from above, as shown
in the diagram.
► Fasten the filler piece and the sensor insertion
tunnel with the TORX screw RF‑SN65‑2.5x12.
► Fit the left side cover (see 7.3.2 "Fitting the left
side cover" [}102]).
7 Repairs to SmartFeeder 8 mm X / Xi
7.6 Splice sensor
122 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
7.6.3 Performing a function test
Prerequisite: to test the splice sensor, you need a test tape i.e. a piece of tape with a splice rivet
pressed onto it.

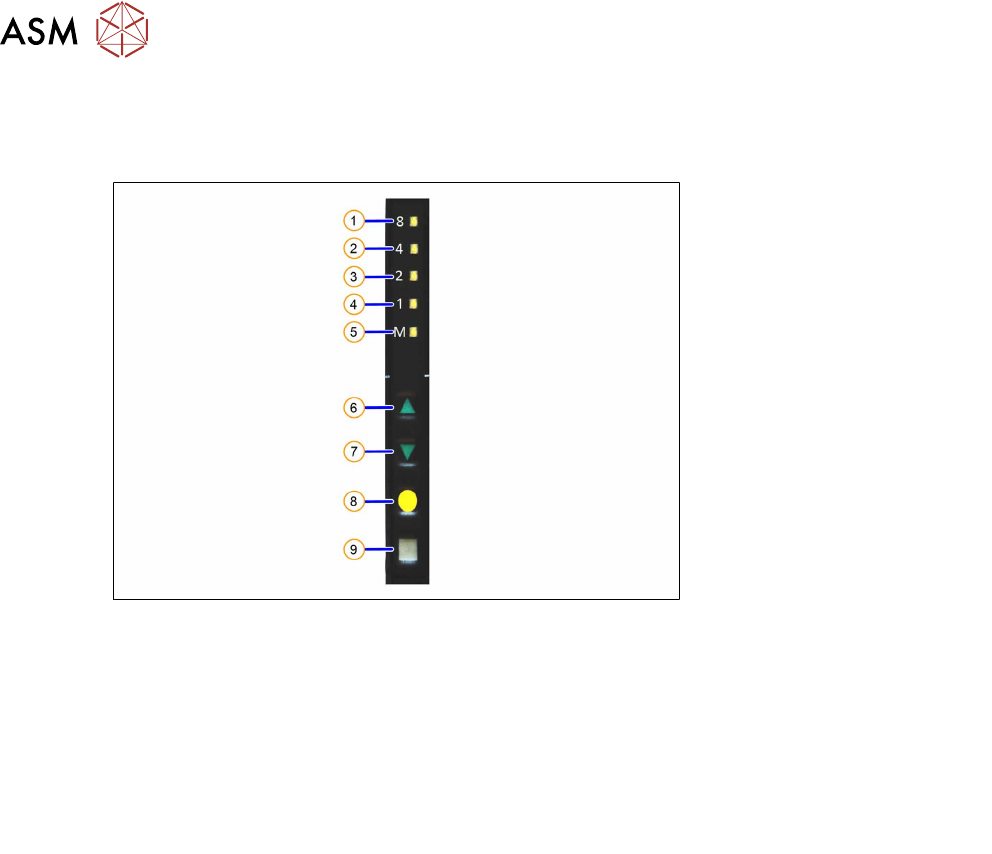

Fig.36: Control panel
1. LED 8 – 8mm pitch
(active only on SmartFeeder 8mmX)
6. FORWARDS button
2. LED 4 – 4mm pitch 7. BACKWARDS button
3. LED 2 – 2mm pitch 8. FOIL button
4. LED 1 – 1mm pitch 9. SET button
5. LED M – menu
Shines when an operator menu is active
► Place the feeder module on a single slot EDIF or on a changeover table for X feeders which is
connected to a placement machine.
► Press and hold the gray SET button on the control panel(9) until the function test is enabled.
► Press the yellow FOIL button four times briefly(8).
After the first press of the FOIL button, the LEDM will switch on.
After the second press, LED1 will also be switched on.
After the third press, LED2 will also be switched on.
After the fourth press, LED 4 will also be switched on.
The menu for the splice sensor function test has now been selected.
► Release the gray SET button, the function test has now been enabled.
► Move the test tape with the splice rivet pressed onto it up to the sensor.
If the splice sensor recognizes the splice rivet, LED 8 will shine.
If LED 8 stays off, this means that the splice rivet was not recognized. Check whether the splice
sensor was fitted properly.
If the sensor is then not recognized, check whether the flat ribbon cable for the splice sensor has
been correctly fastened (see section 7.16.2
"Fitting the control board" [}159]).
If the sensor is still not recognized, this indicates that it is probably defective and needs replacing.
► To end the test mode, press any button on the control panel. The test mode will also be ended
automatically after 1 minute.
After ending the test mode, the control panel will show the pitch currently set.
7 Repairs to SmartFeeder 8 mm X / Xi
7.7 Drives
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 123
7.7 Drives
7.7.1 Foil motor

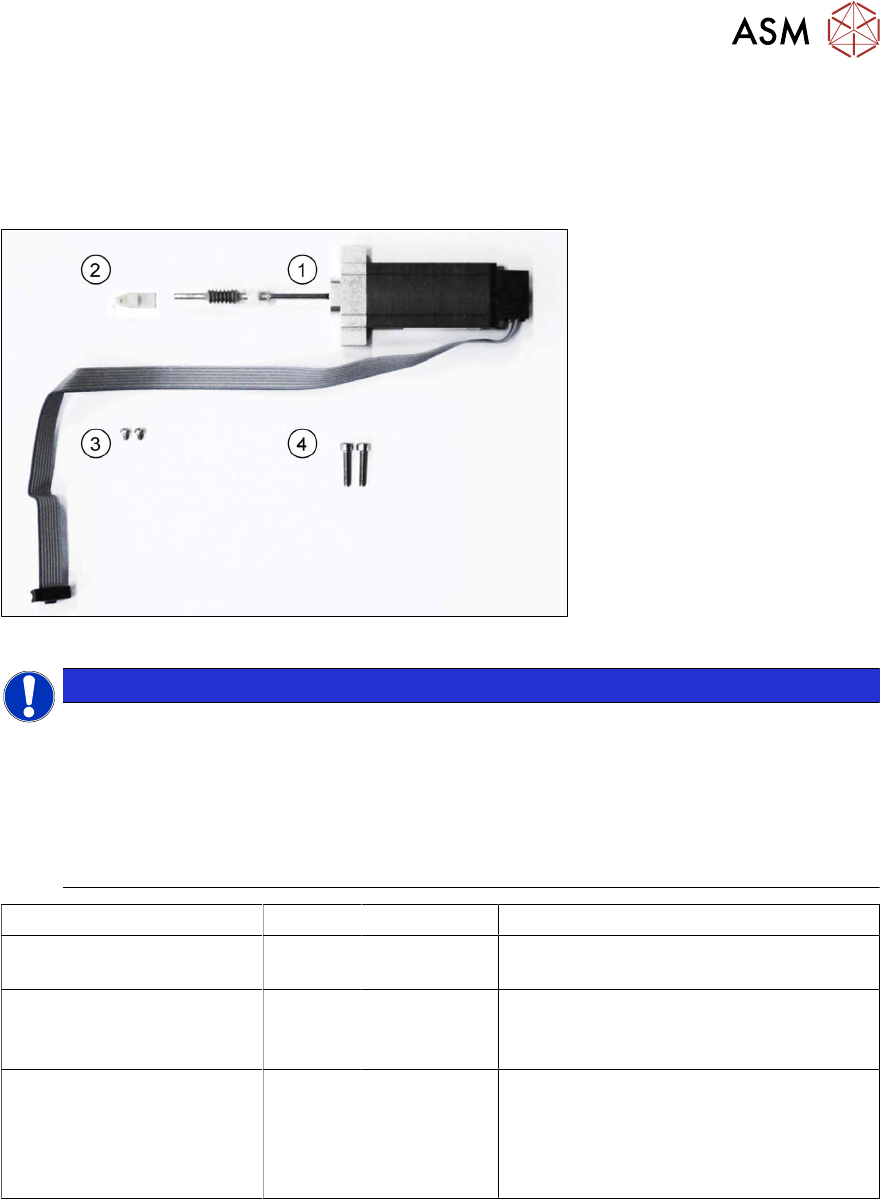

Required spare part
Fig.37: Motor coupling/foil disposal X-Series
NOTICE
Observe the function status of the feeder module
The SmartFeeder 8mmX motors have been converted from the 8 bit encoder to the 12 bit
encoder.
The feeder module firmware is able to supply the 8 bit and the 12 bit encoder. However, the
SmartFeeder 8 mm X can only operate either the 8 bit or the 12 bit motors.
For this reason, when replacing the motor of the foil disposal unit, pay attention to the func-
tion state (FS) of the feeder module and select the spare part which corresponds with it.
Feeder module Position Item no. Designation
SmartFeeder 8 mm X
00141370-xx (up to FS 02
)
1 03119123Sxx Motor assembly for foil disposal X8Smart
(8 bit)
SmartFeeder 8 mm X
00141370-xx (> FS 02
)
SmartFeeder 8 mm Xi
1 03170813-xx Motor for foil drive with 12 bit encoder
SmartFeeder 8mm X
SmartFeeder 8 mm Xi
2
3
4
03028610-xx
03012488-xx
03042536-01
Bearing block, ceramic
SN 213307-H-M2 x 2.5-A2
(for fitting the bearing block)
ISO 4762 - M 2.5 x 12-A2-70
(for fitting the motor)
Tools required
●
Phillips screwdriver 0.9Nm
●
Flat-bladed screwdriver size 3
●
TORX screwdriver 0.6Nm, size T8
●
Angled Allen key, size 2
●
Allen key 0.9 Nm, size 4
●
Tweezers
Required consumables
●
Grease Klübersynth GE 14-151
