7 Repairs to SmartFeeder 8 mm X / Xi 7.7 Drives 124 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 7.7.1.1 Removing the Foil Disposal Motor ► Carefully place the feeder mod…

7 Repairs to SmartFeeder 8 mm X / Xi

7.7 Drives

Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 123

7.7 Drives

7.7.1 Foil motor

Required spare part

Fig.37: Motor coupling/foil disposal X-Series

NOTICE

Observe the function status of the feeder module

The SmartFeeder 8mmX motors have been converted from the 8 bit encoder to the 12 bit

encoder.

The feeder module firmware is able to supply the 8 bit and the 12 bit encoder. However, the

SmartFeeder 8 mm X can only operate either the 8 bit or the 12 bit motors.

For this reason, when replacing the motor of the foil disposal unit, pay attention to the func-

tion state (FS) of the feeder module and select the spare part which corresponds with it.

Feeder module Position Item no. Designation

SmartFeeder 8 mm X

00141370-xx (up to FS 02

)

1 03119123Sxx Motor assembly for foil disposal X8Smart

(8 bit)

SmartFeeder 8 mm X

00141370-xx (> FS 02

)

SmartFeeder 8 mm Xi

1 03170813-xx Motor for foil drive with 12 bit encoder

SmartFeeder 8mm X

SmartFeeder 8 mm Xi

03028610-xx

03012488-xx

03042536-01

Bearing block, ceramic

SN 213307-H-M2 x 2.5-A2

(for fitting the bearing block)

ISO 4762 - M 2.5 x 12-A2-70

(for fitting the motor)

Tools required

●

Phillips screwdriver 0.9Nm

●

Flat-bladed screwdriver size 3

●

TORX screwdriver 0.6Nm, size T8

●

Angled Allen key, size 2

●

Allen key 0.9 Nm, size 4

●

Tweezers

Required consumables

●

Grease Klübersynth GE 14-151

7 Repairs to SmartFeeder 8 mm X / Xi

7.7 Drives

124 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

7.7.1.1 Removing the Foil Disposal Motor

► Carefully place the feeder module with the right

side down on a stable, level and clean surface.

► Remove the left side cover (see 7.3.1 "Removing

the Left Side Cover" [}102]).

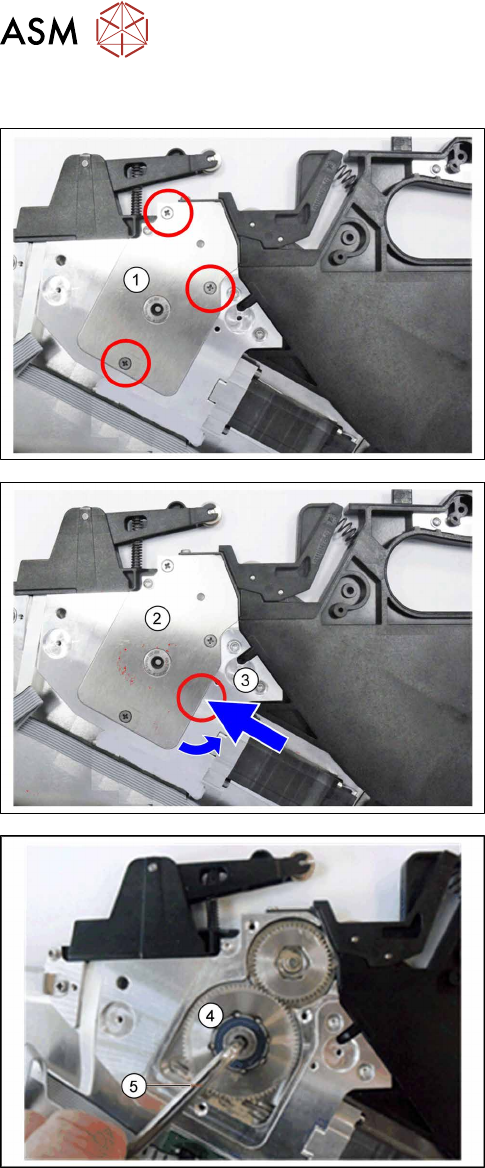

► Remove the 3 Phillips screws(1) marked in the

diagram from the bearing cap for the foil gear.

► Lift the bearing cap(2) up with a pair of tweezers

or a small screwdriver(3)

and remove it.

► Loosen the spiral gear(4) on the foil disposal

with a size 4 Allen key(5)

7 Repairs to SmartFeeder 8 mm X / Xi

7.7 Drives

Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 125

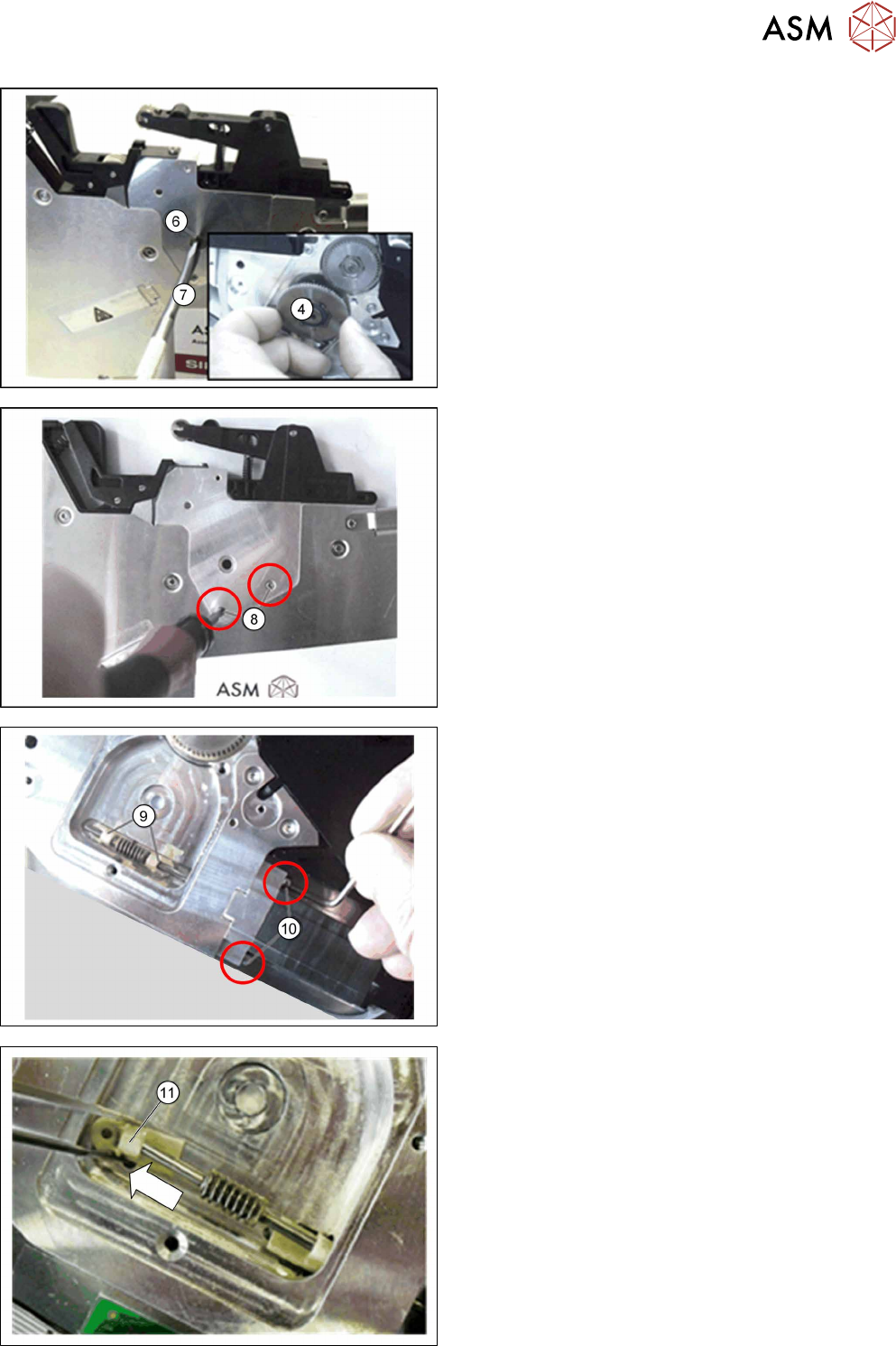

► Move the feeder module to an upright and stable

position.

On the right-hand side of the feeder module you can

access the bearing screw (6)

for the spiral gear.

► On the left-hand side of the feeder module, you

can hold the spiral gear(4)

, while on the right-

hand side, you can open the connection using a

size 3 flat-bladed screwdriver(7)

► Pull the spiral gear(4) off completely.

► Remove the two screws(8), with which the

ceramic bearing blocks(9)

are fixed on the other

side.

► Turn the feeder module on to its right side.

► Open the two screws(10), with which the motor

is fastened. Use a size 2 angled Allen key for

this.

► Use a pair of tweezers to pull the outer bearing

block(11)

off the motor shaft.
