7 Repairs to SmartFeeder 8 mm X / Xi 7.9 Rocker 136 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 7.9 Rocker 7.9.1 Replacing the rocker assembly Required spare part Fig.4…

7 Repairs to SmartFeeder 8 mm X / Xi

7.8 Foil rocker

Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 135

7.8.2.4 Replacing the rocker bearing unit

► Loosen the foil rocker unit (see 7.8.1.1 "Removing the Foil Rocker Assembly" [}130]).

► Remove the foil rocker and the pressure spring (see7.8.2.1 "Replacing the foil rocker, axis and

pressure spring" [}133]).

► Remove the light barrier transmitter (see 7.8.2.3 "Replacing the light barrier transmit-

ter" [}134]).

The rocker bearing unit has now been isolated and can be replaced.

► Fasten the light barrier transmitter to the new rocker bearing unit (see 7.8.2.3 "Replacing the

light barrier transmitter" [}134]).

► Fasten the foil rocker (see 7.8.2.1 "Replacing the foil rocker, axis and pressure

spring" [}133]).

► Fasten the foil rocker unit (see 7.8.1.2 "Fitting the Foil Rocker Assembly" [}131]).

7 Repairs to SmartFeeder 8 mm X / Xi

7.9 Rocker

136 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

7.9 Rocker

7.9.1 Replacing the rocker assembly

Required spare part

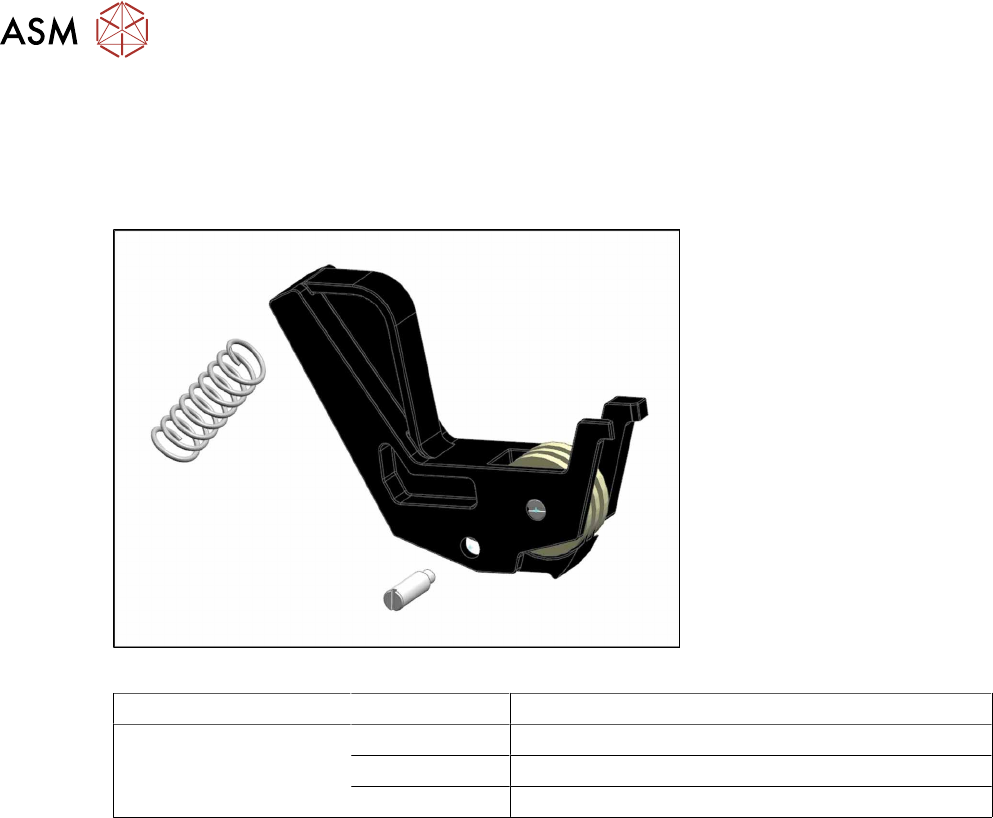

Fig.41: Rocker for foil disposal assy. X8Smart

Feeder module Item no. Designation

SmartFeeder 8mm X

SmartFeeder 8 mm Xi

03104247-xx Rocker for foil disposal assy. X8Smart

03048855-xx Pressure spring 0.75x6.25x31x8.5

03042321-xx Bearing shaft for rocker /X8

Tools required

●

Flat-bladed screwdriver size 1

7 Repairs to SmartFeeder 8 mm X / Xi

7.9 Rocker

Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 137

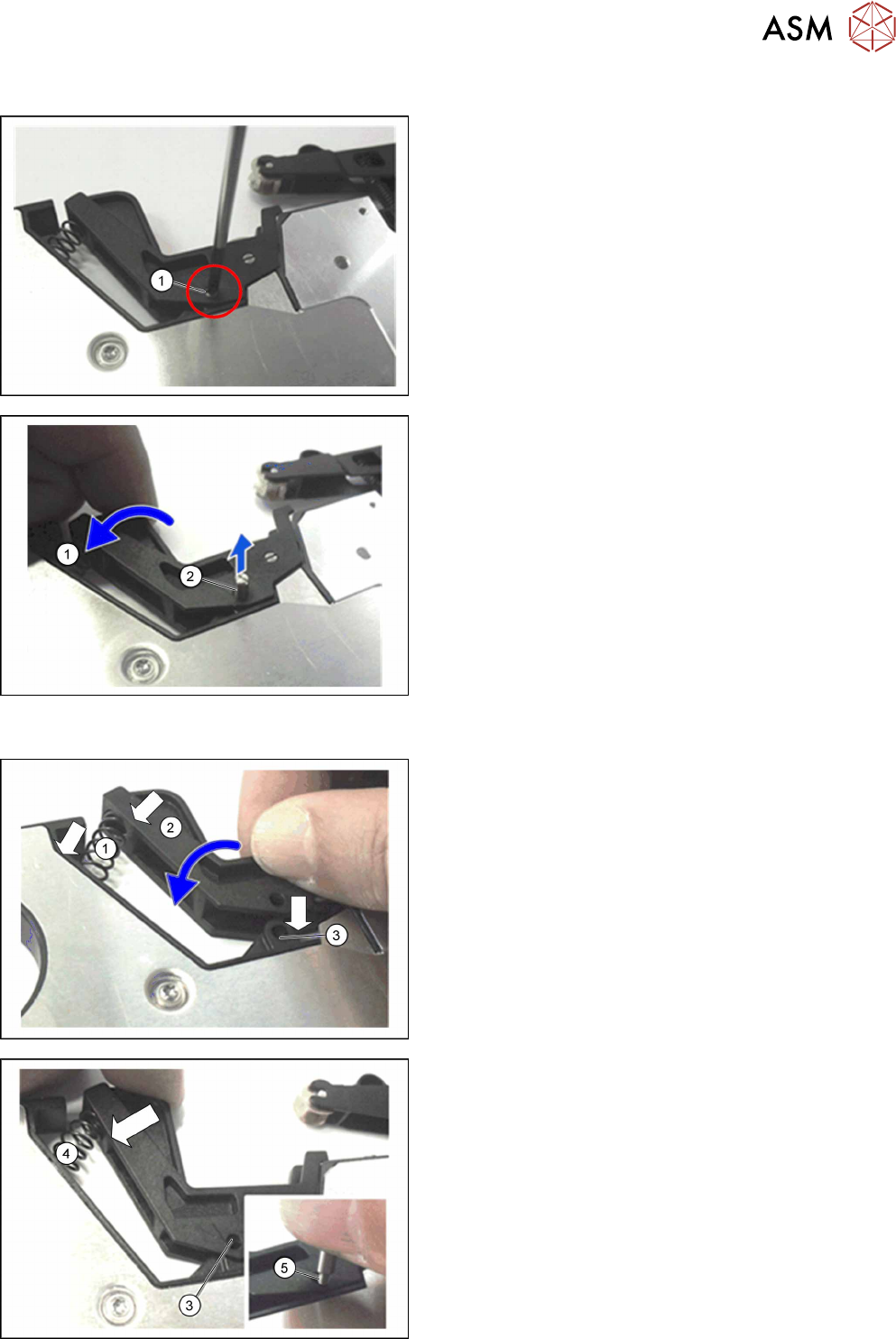

7.9.1.1 Removing the rocker assembly

► Carefully place the feeder module with the right side

down on a stable, level and clean surface.

► Use a size 1 slotted screwdriver to loosen the bear-

ing shaft (1)

belonging to the rocker.

► Gently press the rocker backwards, against the

spring tension.

► Pull the bearing shaft completely out of the rocker.

► Relax the spring, by letting the rocker slowly rise up

again.

► Lift the rocker up and out of the feeder module.

► Remove the spring (2).

7.9.1.2 Fitting the rocker assembly

► Carefully place the feeder module with the right side

down on a stable, level and clean surface.

► Insert the spring(1) into the base of the feeder mod-

ule.

► Fit the rocker(2) onto the spring.

► Press the rocker over the rocker holder(3).

► Press the rocker into the spring (4).

► Move the rocker until you can completely see the

drilled hole for the rocker holder through the drilled

hole for the rocker itself(3)

► Push the bearing shaft(5) into the drilled hole, with

the thread first.

► Fasten the bearing shaft hand-tight with a size 1 slot-

ted screwdriver.
