7 Repairs to SmartFeeder 8 mm X / Xi 7.10 Tamp wheel / spiral gear 140 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 7.10.1 Removing the tamp wheel ► Carefully place the f…
7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 139
7.10 Tamp wheel / spiral gear
Spare part required

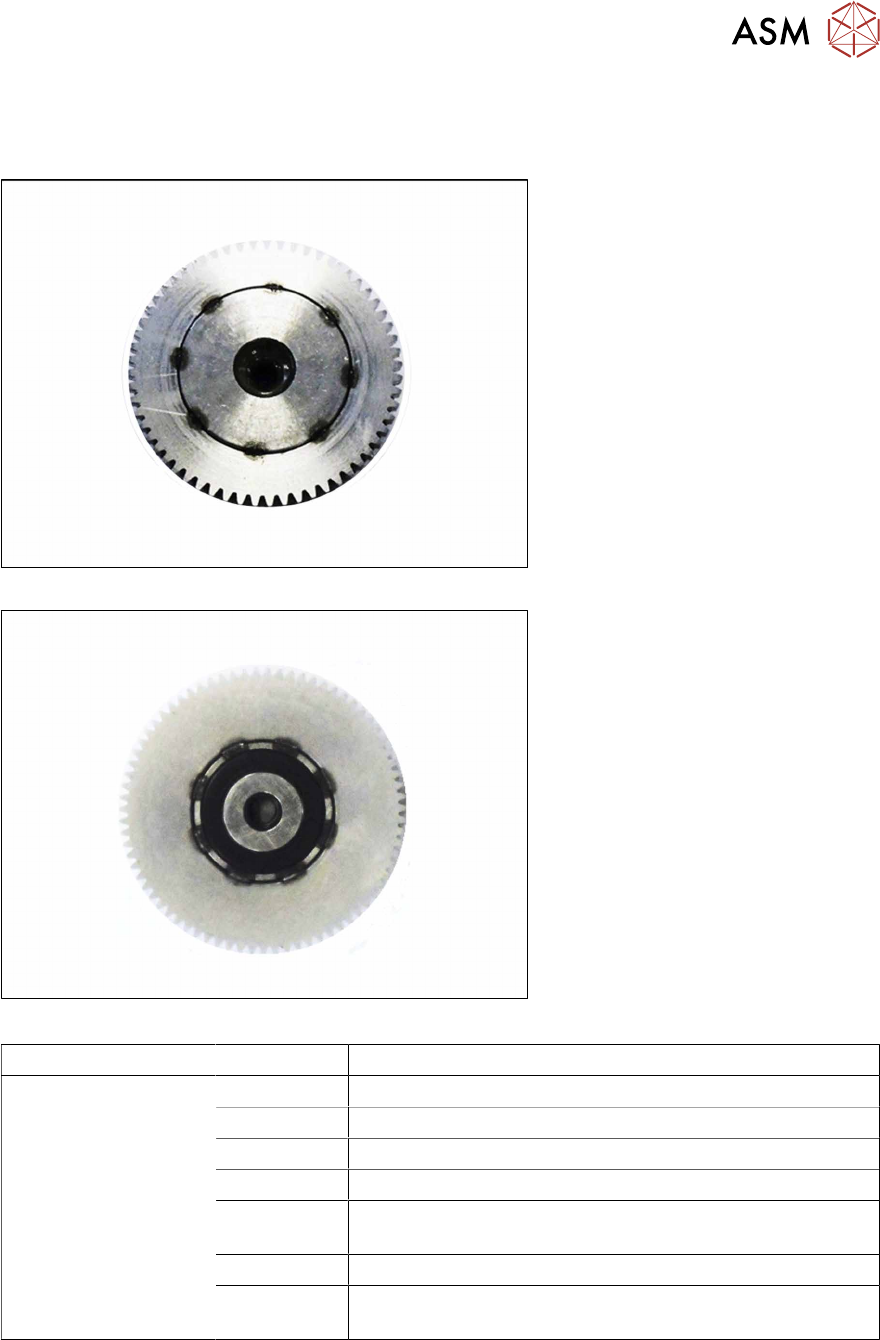

Fig.43: Tamp wheel knurled assy.
Fig.44: Spiral gear for cover foil disposal assy. X8Smart
Feeder module Item no. Designation
SmartFeeder 8mmX
SmartFeeder 8 mm Xi
03102274-xx Tamp wheel knurled assy. X8Smart
03103111-xx Spiral gear for cover foil disposal assy. X8Smart
03135899-xx Adjusting shim 6x18x0.1 2 pieces K 50 a.DIN 988 (bottom)
03043774-xx Compensating disk /d3.1 D15 t0.1 (top)
03050825-xx Bearing screw
(counterpart to spiral gear)
03103057-xx Bearing cap, foil drive X8Smart
03023228-xx ISO 7046-2-M2.5 x 6-A2-70-H
(screws for bearing cap)
Tools required
●
Phillips screwdriver, small
●
Flat-bladed screwdriver
●
Allen key size 4
●
Tweezers
7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
140 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
7.10.1 Removing the tamp wheel
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Remove the left side cover (see 7.3.1 "Removing
the Left Side Cover" [}102]).
► Remove the 3 Phillips screws(1) marked in the
diagram from the bearing cap for the foil drive.
► Lift the bearing cap(2) up with a pair of tweezers
or a small screwdriver(3)
and remove it.
► Remove the rocker (see 7.9.1.1 "Removing the
rocker assembly" [}137]).
► Remove the wiper (see 7.11.1 "Removing the
stripping device 8 mm X" [}146]).
► Loosen the Allen screw on the spiral gear.
Use a size 4 Allen key for this.
7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 141
► Tilt the feeder module to the right and hold the
Allen screw on the spiral gear with one finger.Kip-
pen Sie das Zuführmodul auf die rechte Seite
und fixieren Sie dabei den Inbus am Schraubrad
mit einem Finger.
► Remove the slotted screw.
► Remove the spiral gear.
► Remove the top washer from the spiral gear.
