7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
140 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

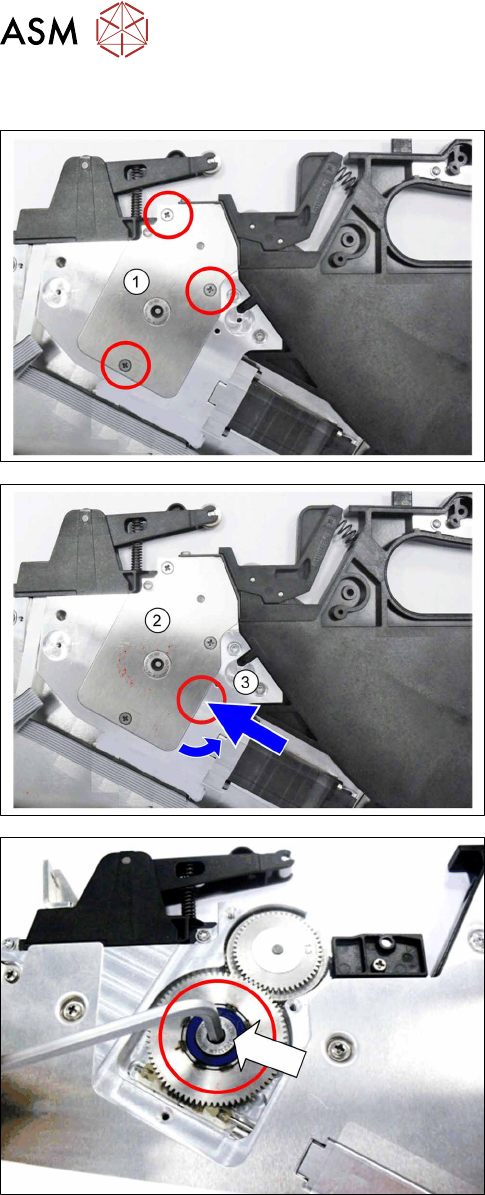

7.10.1 Removing the tamp wheel
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Remove the left side cover (see 7.3.1 "Removing
the Left Side Cover" [}102]).
► Remove the 3 Phillips screws(1) marked in the
diagram from the bearing cap for the foil drive.
► Lift the bearing cap(2) up with a pair of tweezers
or a small screwdriver(3)
and remove it.
► Remove the rocker (see 7.9.1.1 "Removing the
rocker assembly" [}137]).
► Remove the wiper (see 7.11.1 "Removing the
stripping device 8 mm X" [}146]).
► Loosen the Allen screw on the spiral gear.
Use a size 4 Allen key for this.
7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 141

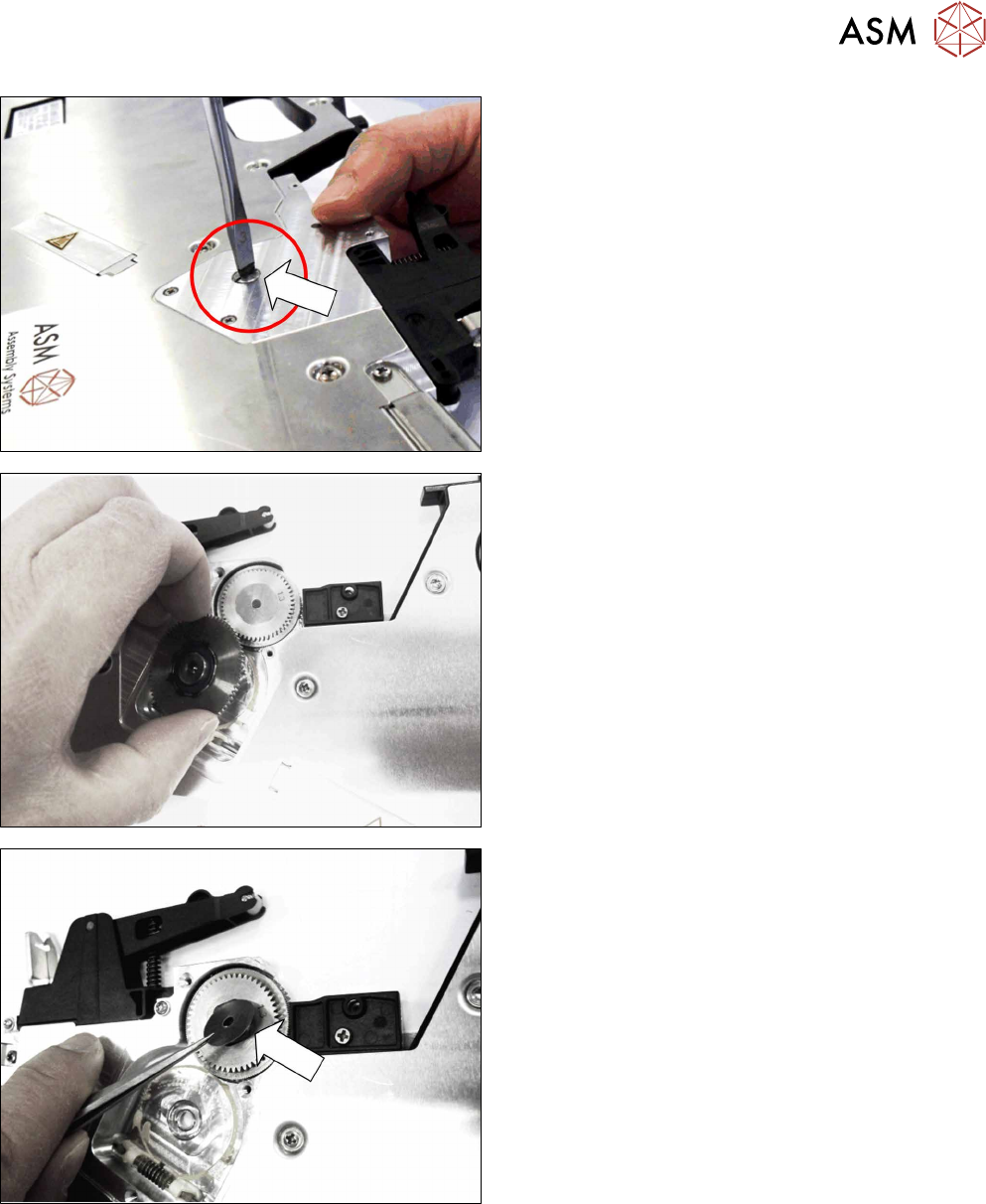

► Tilt the feeder module to the right and hold the
Allen screw on the spiral gear with one finger.Kip-
pen Sie das Zuführmodul auf die rechte Seite
und fixieren Sie dabei den Inbus am Schraubrad
mit einem Finger.
► Remove the slotted screw.
► Remove the spiral gear.
► Remove the top washer from the spiral gear.
7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
142 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

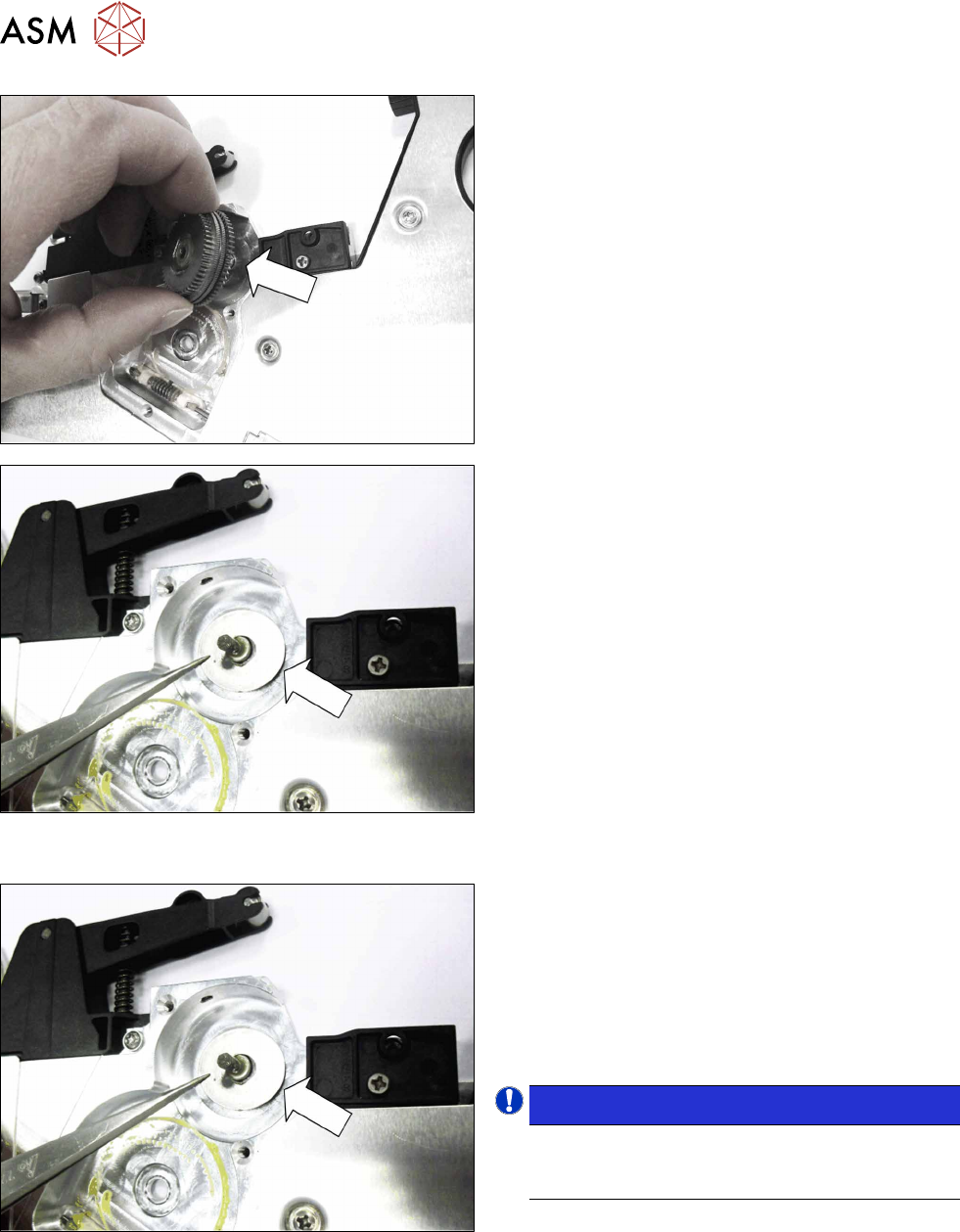

► Remove the tamp wheel.
► If the bottom washer is still stuck to the spiral
gear, take it and place it back on the axis.
7.10.2 Fitting the tamp wheel
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Coat the axis base/ motor mount with a little
grease (Klüber-Synth GE-14-151) and fit the
washer (adjusting shim-6x18x0.1 2 pieces K 50
a.DIN 988, 03135899-xx) onto the axis. If the
washer is already on the axis, take it off the axis
before lubricating.
 NOTICE!
Make sure that there is a washer on the axis
(adjusting shim 6x18x0.1 2 pieces K 50 a.DIN
988, 03135899-xx).
.
