7 Repairs to SmartFeeder 8 mm X / Xi 7.10 Tamp wheel / spiral gear 142 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 ► Remove the tamp wheel. ► If the bottom washer is sti…
7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 141

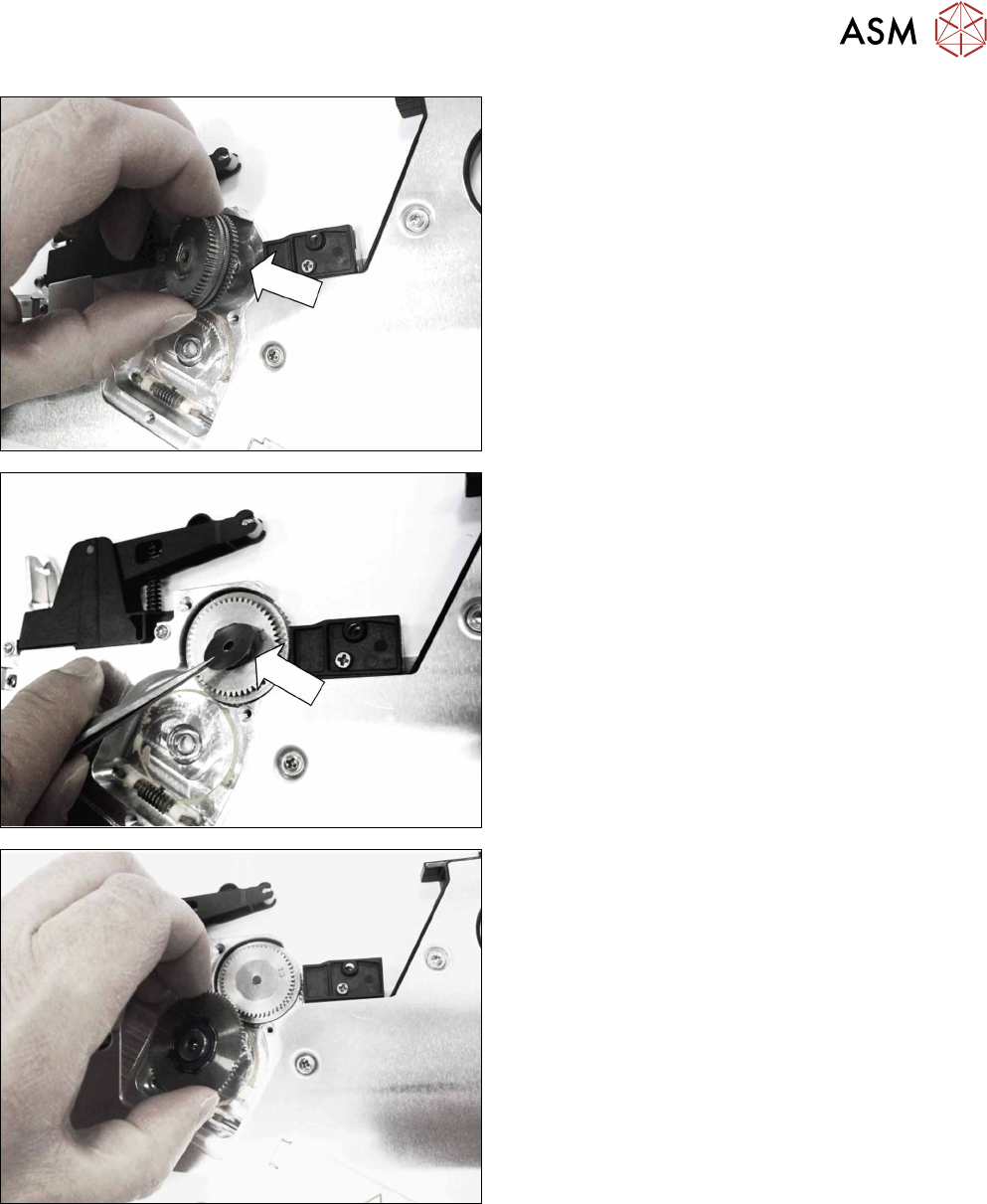

► Tilt the feeder module to the right and hold the
Allen screw on the spiral gear with one finger.Kip-
pen Sie das Zuführmodul auf die rechte Seite
und fixieren Sie dabei den Inbus am Schraubrad
mit einem Finger.
► Remove the slotted screw.
► Remove the spiral gear.
► Remove the top washer from the spiral gear.
7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
142 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
► Remove the tamp wheel.
► If the bottom washer is still stuck to the spiral
gear, take it and place it back on the axis.
7.10.2 Fitting the tamp wheel
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Coat the axis base/ motor mount with a little
grease (Klüber-Synth GE-14-151) and fit the
washer (adjusting shim-6x18x0.1 2 pieces K 50
a.DIN 988, 03135899-xx) onto the axis. If the
washer is already on the axis, take it off the axis
before lubricating.
NOTICE!
Make sure that there is a washer on the axis
(adjusting shim 6x18x0.1 2 pieces K 50 a.DIN
988, 03135899-xx).
.
7 Repairs to SmartFeeder 8 mm X / Xi
7.10 Tamp wheel / spiral gear
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 143
► Coat the axis with a little grease.
► Fit the tamp wheel on the axis, as shown in the
diagram.
► Coat the axis with a drop of grease.
► Place the top washer (03043774-xx compensat-
ing disk / d3.1 D15 t0.1) onto the tamp wheel.
► Insert the spiral gear (spiral gear cover foil dis-
posal assy. X8Smart, 03103111-xx) as shown in
the diagram.
