7 Repairs to SmartFeeder 8 mm X / Xi 7.12 Foil disposal flap 148 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 ► Remove the flap (2) and the shaft (3) . The shaft is onl…
7 Repairs to SmartFeeder 8 mm X / Xi
7.12 Foil disposal flap
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 147
7.12 Foil disposal flap
Required spare part
Fig.46: Flap for foil stuffing unit assy. X8Smart
Feeder module Item no. Designation
SmartFeeder 8mmX
SmartFeeder 8 mm Xi
03107505-xx Flap for foil stuffing unit assy. X8Smart
03004081-xx Shaft for D2 foil flap X8
Tools required
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
7.12.1 Removing the Flap
NOTICE
Avoid confusing the foil tank panel
The foil tank panel has a barcode which uniquely identifies the feeder module. Make sure
that this sheet is not confused with another foil tank panel.
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Remove the right side cover (see 7.3.3 "Remov-
ing the right side cover" [}103])
► Carefully lift the foil tank panel(1) out of the base
of the feeder module.
7 Repairs to SmartFeeder 8 mm X / Xi
7.12 Foil disposal flap
148 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

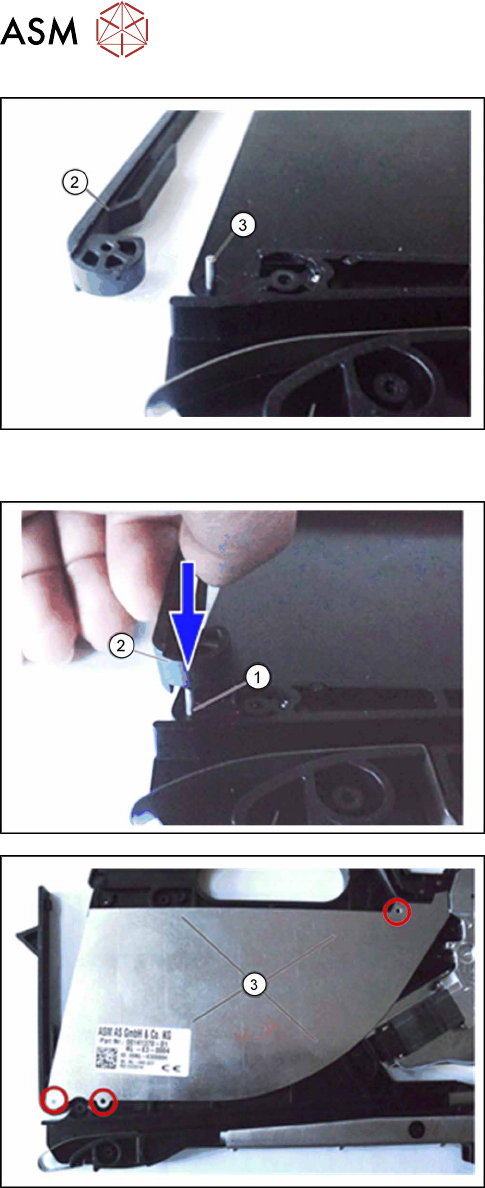

► Remove the flap(2) and the shaft(3). The shaft
is only pushed into the foil tank.
► Clean the foil tank thoroughly and remove all foil
and adhesive residues before fitting the foil tank
panel back on the foil tank.
7.12.2 Fitting the Flap
► Insert the shaft(1) into the foil tank for the feeder
module.
► Push the flap(2) onto the shaft.
► Place the foil tank panel(3) onto the foil tank, as
shown.
Make sure that the foil tank panel engages with
the nibs provided at the positions marked in red.
► Fit the right side cover (see7.3.4 "Fitting the right
side cover" [}104]).
7 Repairs to SmartFeeder 8 mm X / Xi
7.13 Foil disposal blade
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 149
7.13 Foil disposal blade
Required spare part

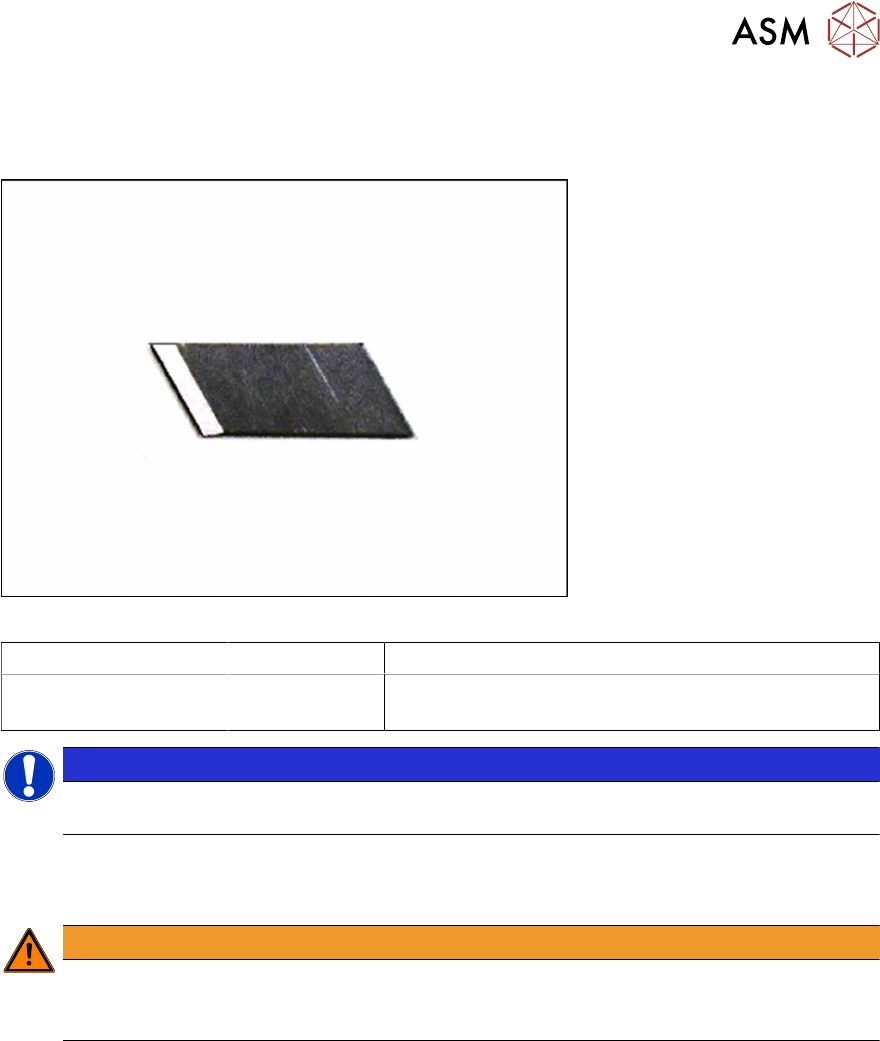

Fig.47: Blade partition wall
Feeder module Item no. Designation
SmartFeeder 8mmX
SmartFeeder 8 mm Xi
00341370Sxx Blade partition wall
NOTICE
Pay attention when preparing the individual blades. Individual blades must be broken at the
cutter edge. Ensure all safety precautions are observed.
Tools required
●
TORX screwdriver 0.6Nm, size T8
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
7.13.1 Removing the Blade Partition Wall
► Place the feeder on a stable, level and clean surface.
► Open the flap.
► Loosen the screw fastening the blade and remove the old blade.
7.13.2 Fitting the Blade Partition Wall
► Place the new blade in position and tighten the screw.
