7 Repairs to SmartFeeder 8 mm X / Xi
7.15 Handle with control panel
152 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

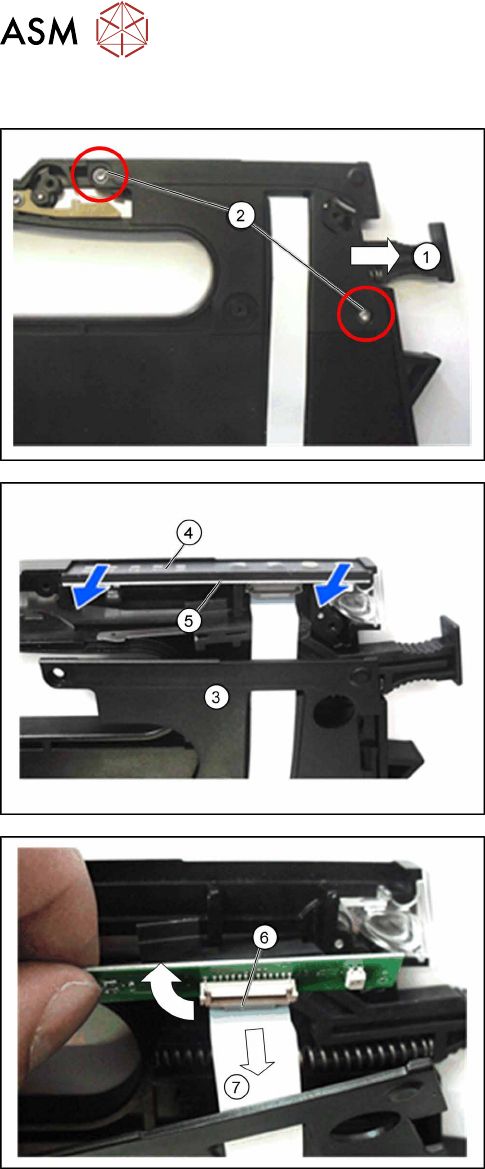

7.15.2.1 Removing the Control Panel and Board
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Remove the left side cover (see 7.3.1 "Removing
the Left Side Cover" [}102]).
► Loosen the lock(1) in the position "unlocked".
► Open the two marked TORX screws(2), with
which the cap on the foil stuffing unit is fixed.
► Carefully lift the cap on the foil stuffing unit(3) a
little from the base of the feeder module. Make
sure that the flat ribbon cable is still fastened to
the control panel board.
► Pull the control panel(4) out of the guidance, to-
gether with the board(5)
.
► Open the bracket on the flat ribbon cable connec-
tion(6)
at the board.
► Pull the flat ribbon cable(7) out of the flat ribbon
cable connection.
► Pull the flat ribbon cable out of the foil stuffing
unit cap.
7 Repairs to SmartFeeder 8 mm X / Xi
7.15 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 153

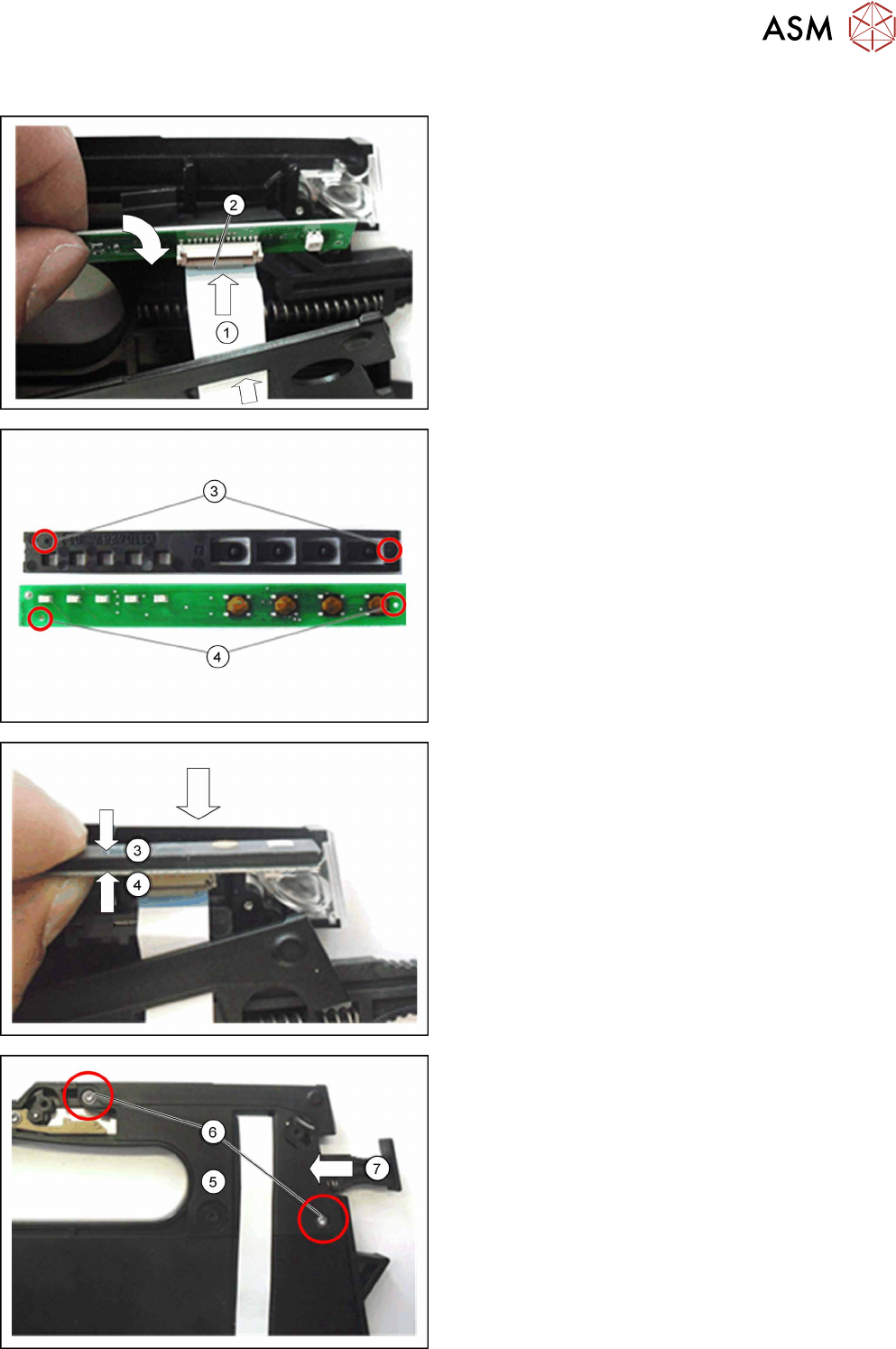

7.15.2.2 Fitting the Control Panel and Board
► If this is not open, swing the bracket on the flat rib-
bon connection(2)
on the board upwards.
► Push the flat ribbon cable(1) through the foil stuff-
ing unit cap, as shown, with the blue side pointing
upwards.
► Push the flat ribbon cable(1), with the blue side
pointing upwards, further into the flat ribbon cable
connection(2)
, on the board.
Make sure that the flat ribbon cable contacts lie
against the contacts on the connection.
► Swing the bracket on the flat ribbon connection
down(2)
.
► Insert the control panel(3) with the marked pins
into the marked holes(4)
on the board.
► Push the control panel(3) together with the
board(4)
sideways into the feeder module guid-
ance provided.
Make sure that the flat ribbon cable is not pinched
or pulled out of the connection on the board.
► Carefully life the cap on the foil stuffing unit(5) into
the position shown on the feeder module base.
Make sure that the flat ribbon cable hangs out of
the cap as shown.
► Fasten the cap on the foil stuffing unit at the
marked points(6)
with 2 screws. Use a size 8
TORX screwdriver and 0.6 Nm for this.
► Make sure that the lock(7) on the feeder module
moves easily and that no components are trapped
or pinched.
► Fasten the left side cover (see 7.3.2 "Fitting the left
side cover" [}102]).
7 Repairs to SmartFeeder 8 mm X / Xi
7.15 Handle with control panel
154 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

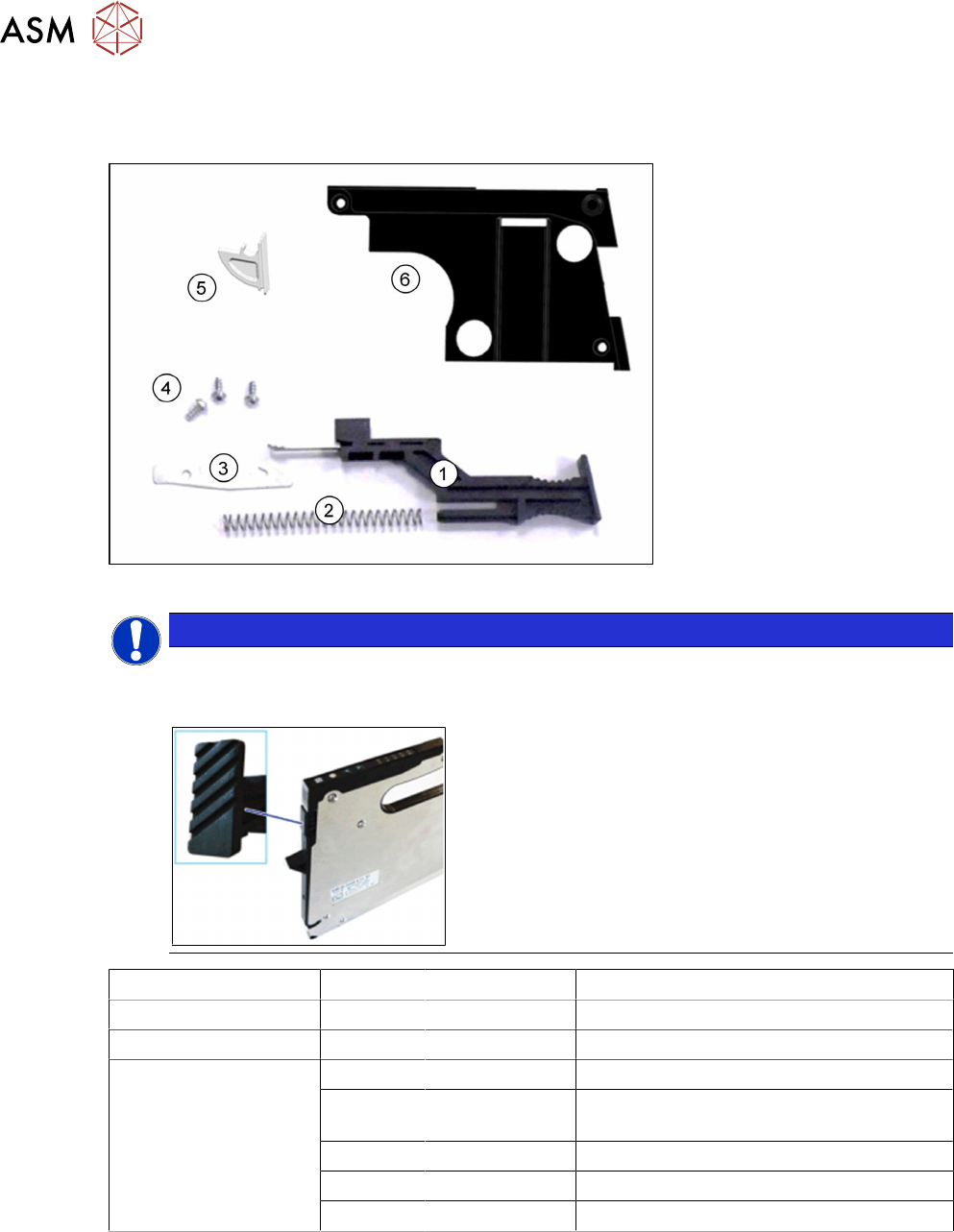

7.15.3 Individual parts on the handle
Spare parts required
Fig.51: Individual parts on the handle SmartFeeder 8 mm X
NOTICE
Other slide for SmartFeeder 8mmXi
In order to visually differentiate Xi feeder modules from the "normal" X feeder modules, a
different slide is used, with a clearly corrugated surface on the outside.
Feeder module Position Item no. Designation
SmartFeeder 8mmX 1 03108403Sxx Slide for foil stuffing unit assy. X8Smart
SmartFeeder 8mmXi 1 03171389-xx Slide for foil stuffing unit assy. 4/8mm Xi
SmartFeeder 8mmX
SmartFeeder 8 mm Xi
2 03009150Sxx Pressure spring VD-090V
3 03095505-xx Retaining springs for foil stuffing unit X8S-
mart
4 03033796-xx RF-SN75-2.5 x 6-9.8
5 03101437Sxx Window for control panel X8Smart
6 03101508Sxx Cover for foil stuffing unit X8Smart
Tools required
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers or flat pliers
