8 Repairs to SmartFeeder 2x8 mm X / Xi
8.3 Side Covers
174 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

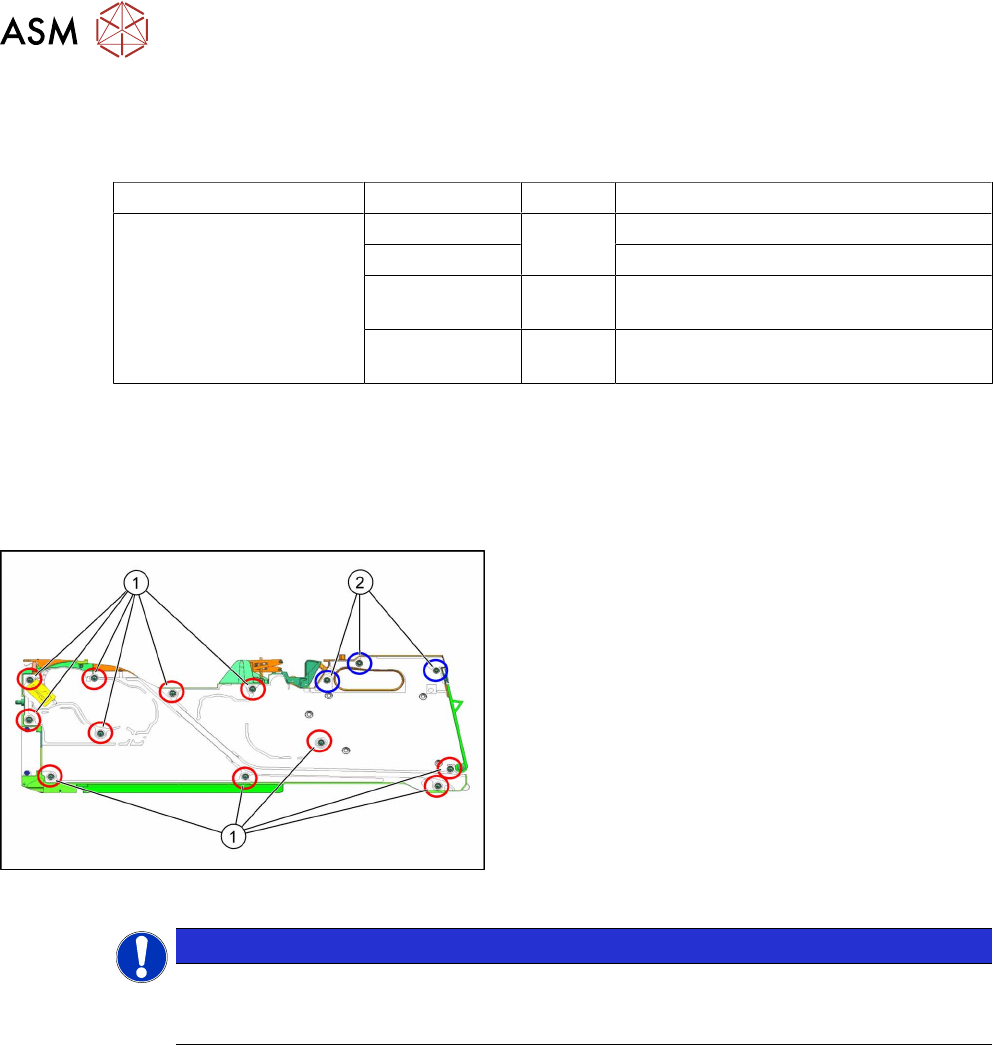

8.3 Side Covers
Spare part required
Feeder module Item no. Type Designation
SmartFeeder 2x8 mm X
SmartFeeder 2x8mmXi
03078734-xx Cover plate left assy. /X2x8
03078709-xx Cover plate right /X2x8
03010209-xx 1 ISO 7045 - M2.5 x 6-A2-50-H
(Phillips screws)
03033796-xx 2 RF-SN75-2.5 x 6-9.8
(TORX screws)
Tools required
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
8.3.1 Removing the Left Side Cover
► Carefully place the feeder module with the right-
side side down on a stable, level and clean sur-
face.
► Loosen the screws as shown in the diagram.
1. Red circles show screws, for which you need a
Phillips screwdriver with a torque of 0.6Nm.
2. Blue circles show screws for which you need a
TORX screwdriver with a torque of 0.6Nm.
► Place the side cover down on a clean, safe surface.
NOTICE
Attention: The foil disposal cover is held by the side cover and could fall out!
For greater clarity, we recommend that you loosen the same types of screws together and
then keep them in small, marked bowls.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.3 Side Covers
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 175

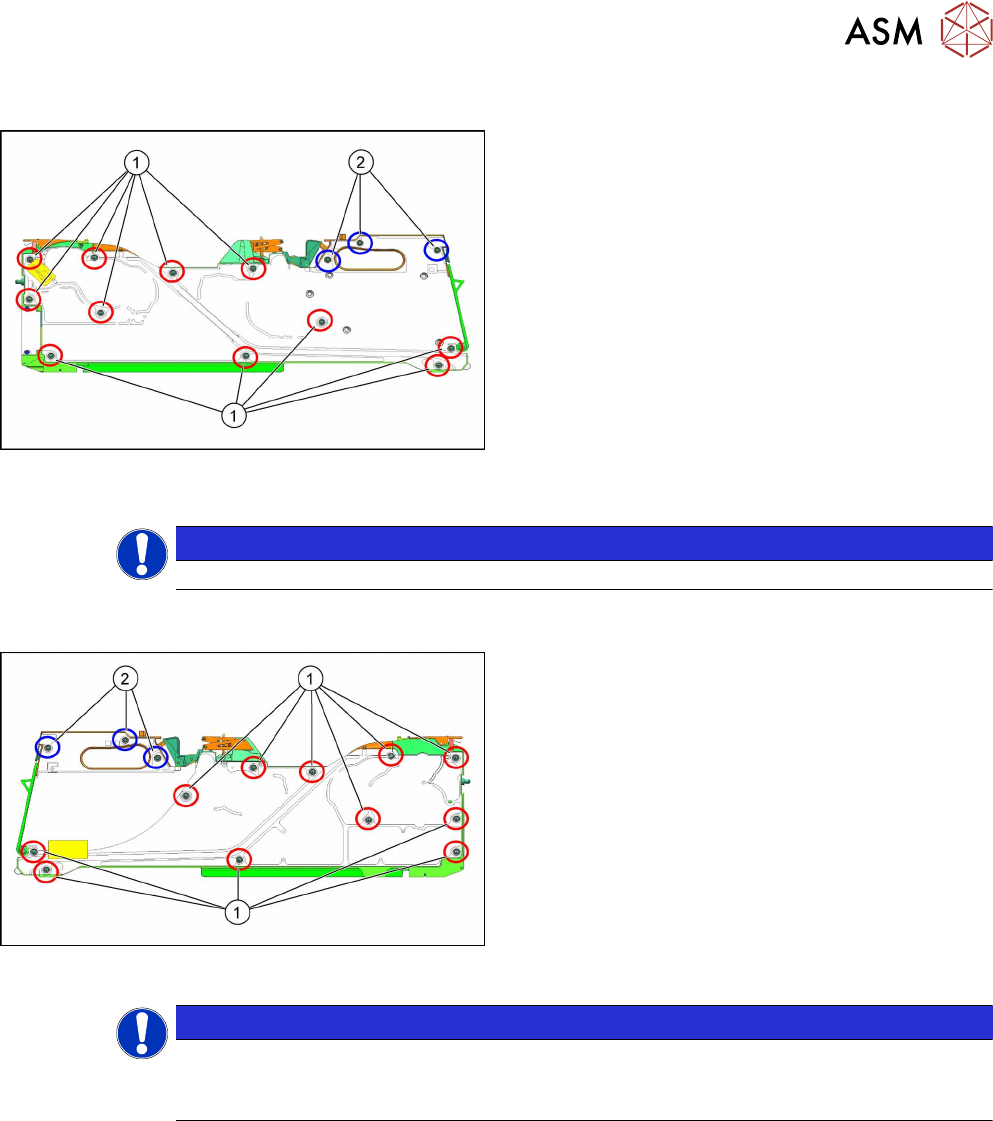

8.3.2 Fitting the Left Side Cover
► Carefully place the feeder module with the right-
side side down on a stable, level and clean sur-
face.
► Ensure the foil disposal cover is in place.
► Place the side cover onto the feeder.
► Make sure that the side cover is aligned flush
with the operating panel.
1. Blue circles (RF-SN75-2.5x6-9.8), point to the
screws for which you need a TORX screwdriver
with a torque of 0.6Nm.
2. Red circles show screws (M2.5 x 6), for which
you need a Phillips screwdriver with a torque of
0.6 Nm.
When you tighten the screws, make sure that these are NOT distorted.
NOTICE
When you tighten the screws, make sure that these are NOT distorted.
8.3.3 Removing the Right Side Cover
► Carefully place the feeder module with the left-
hand side down on a stable, level and clean sur-
face.
► Loosen the screws as shown in the diagram.
1. Red circles show screws (M2.5 x 6), for which
you need a Phillips screwdriver with a torque of
0.6 Nm.
2. Blue circles (RF-SN75-2.5x6-9.8), point to the
screws for which you need a TORX screwdriver
with a torque of 0.6Nm.
► Place the side cover down on a clean, safe surface.
NOTICE
Attention: The foil disposal cover is held by the side cover and could fall out!
For greater clarity, we recommend that you loosen the same types of screws together and
then keep them in small, marked bowls.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.3 Side Covers
176 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

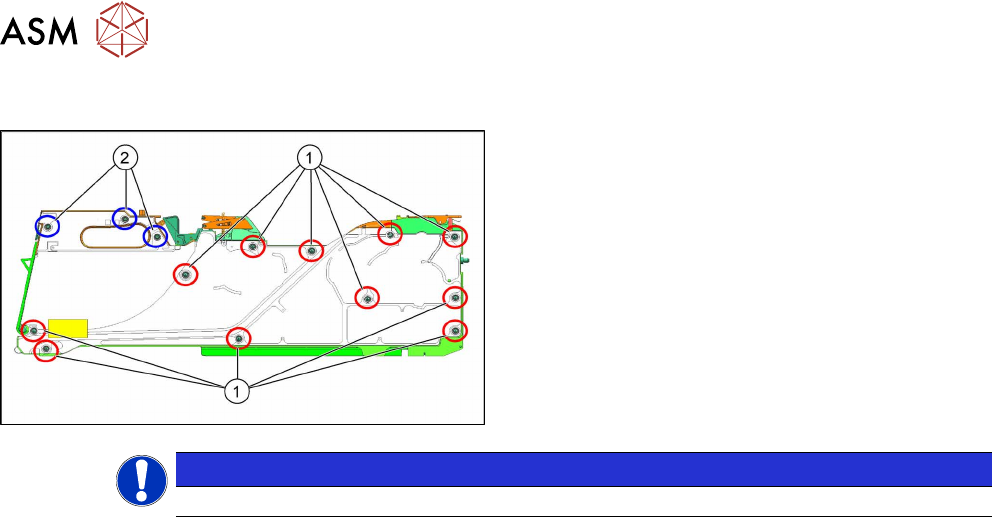

8.3.4 Fitting the Right Side Cover
► Carefully place the feeder module with the left-
hand side down on a stable, level and clean sur-
face.
► Ensure the foil disposal cover is in place.
► Place the side cover onto the feeder.
► Make sure that the side cover is aligned flush
with the operating panel.
1. Blue circles show screws for which you need a
TORX screwdriver with a torque of 0.6Nm.
2. Red circles show screws, for which you need a
Phillips screwdriver with a torque of 0.6Nm.
NOTICE
When you tighten the screws, make sure that these are NOT distorted.
