8 Repairs to SmartFeeder 2x8 mm X / Xi
8.4 EDIF
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 177
8.4 EDIF
Spare part required
Fig.57: EDIF secondary assembly X Smart
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8mmXi
03125222Sxx EDIF secondary assembly X Smart
Spare parts also available
Feeder module Item no. Designation
SmartFeeder 2x8 mm X
SmartFeeder 2x8mmXi
03012683-xx Pressure spring D-027
03068667-xx Collar screw ø4x4.5 M3 /X2x8
Tools required
●
Flat-bladed screwdriver
●
Phillips screwdriver
8.4.1 Removing the EDIF – secondary assembly X Smart
► Place the feeder on a stable, level and clean sur-
face.
► Remove the left side cover (see 8.3.1 "Removing
the Left Side Cover" [}174]).
► Loosen and remove the two collar screws(1).
► Loosen and remove the Phillips screw(2).
► Carefully lift the connector from the main
board(3)
.
► Remove any foam seals present (4).
► Check the pressure springs for damage and re-
place where necessary(5)
.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.4 EDIF
178 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

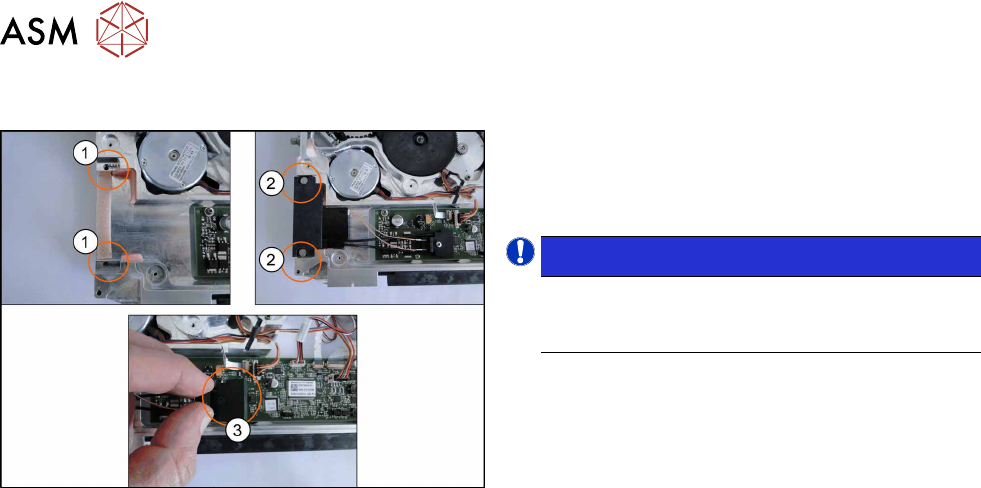

8.4.2 Fitting the EDIF – secondary assembly X Smart
► Insert the two pressure springs(1) into the ducts
provided.
If the pressure springs are bent, these will need
to be replaced.
 NOTICE!
During insertion, make sure that the two
pressure spring point forwards, to the EDIF
and are not distorted.
.
► Push the EDIF(2) into the recess at the front of
the feeder module.
► Fasten the EDIF with the two collar screws.
► Check whether the EDIF springs back to the front
if slight pressure is applied to it.
If the EDIF does not spring back, loosen the two collar
screws(2)
and make sure that the two pressure
springs(see 1 previous figure) are aligned towards the
front and are not bent.
► Place the connector on the main board, ensuring
the alignment pins are centered(3)
.
► Fix the connector to the board with the Phillips
screw and carefully tighten.
► Fit the left side cover (see 8.3.2 "Fitting the Left
Side Cover" [}175]).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.5 Pickup window
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 179
8.5 Pickup window
NOTICE
Conversion to the new version SmartFeeder 2x8mm Xi
The pickup area of the old and the new version of the pickup window are not compatible
with one another!
On introduction of the "SIPLACE SmartFeeder 2x8mm Xi" and "SIPLACE SmartFeeder 2x8mm Xi
Splice" feeder modules, the "SIPLACE SmartFeeder 2x8mm X" and "SIPLACE SmartFeeder
2x8mm X Splice Sensor" feeder modules have been discontinued.
At the same time, the new pickup window for the SmartFeeder 2x8mm Xi has also been introduced
as a spare part for the discontinued SmartFeeder 2x8mm X.
The individual parts of the pickup area in the old and new version are not compatible with one an-
other! If you want to replace individual spare parts (pickup window, pressure fork, tape duct) in
these feeder modules, you will need to completely upgrade the pickup areas of both tracks to the
new version.
In order to upgrade both feeder module tracks, you need 2x the spare part " Tape cutter with
pickup window /X2x8 V2" [03145735-xx].
The following section describes replacement of the individual parts in the new pickup area. To en-
sure that the parts from the old and new version are not confused with one another, pay attention
to the marking shown below on the SmartFeeder 2x8mm Xi pickup area parts.
Fig.58: Markings on SmartFeeder 2x8mm Xi spare parts
Feeder module SIPLACE SmartFeeder 2x8mm X, [00141269-xx]
SIPLACE SmartFeeder 2x8mm X splice sensor, [00141289-xx]
Spare parts
(no longer available)
Tape duct /X2x8 [03077354-xx]
Rocker lever /X2x8 [03053708-xx]
Collar screw /X2x8 [03077823-xx]
Pickup window assy. /X2x8 [03078710-xx]
Tape duct with pickup window /X2x8 V2 [03145735-xx]
Spare part
(Conversion package)
Tape duct with pickup window /X2x8 V2 [03145735-xx]
