8 Repairs to SmartFeeder 2x8 mm X / Xi 8.6 Sealing elements on pin wheel Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 189 8.6.2 Fitting the sealing elements onto the pin …
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.6 Sealing elements on pin wheel
188 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

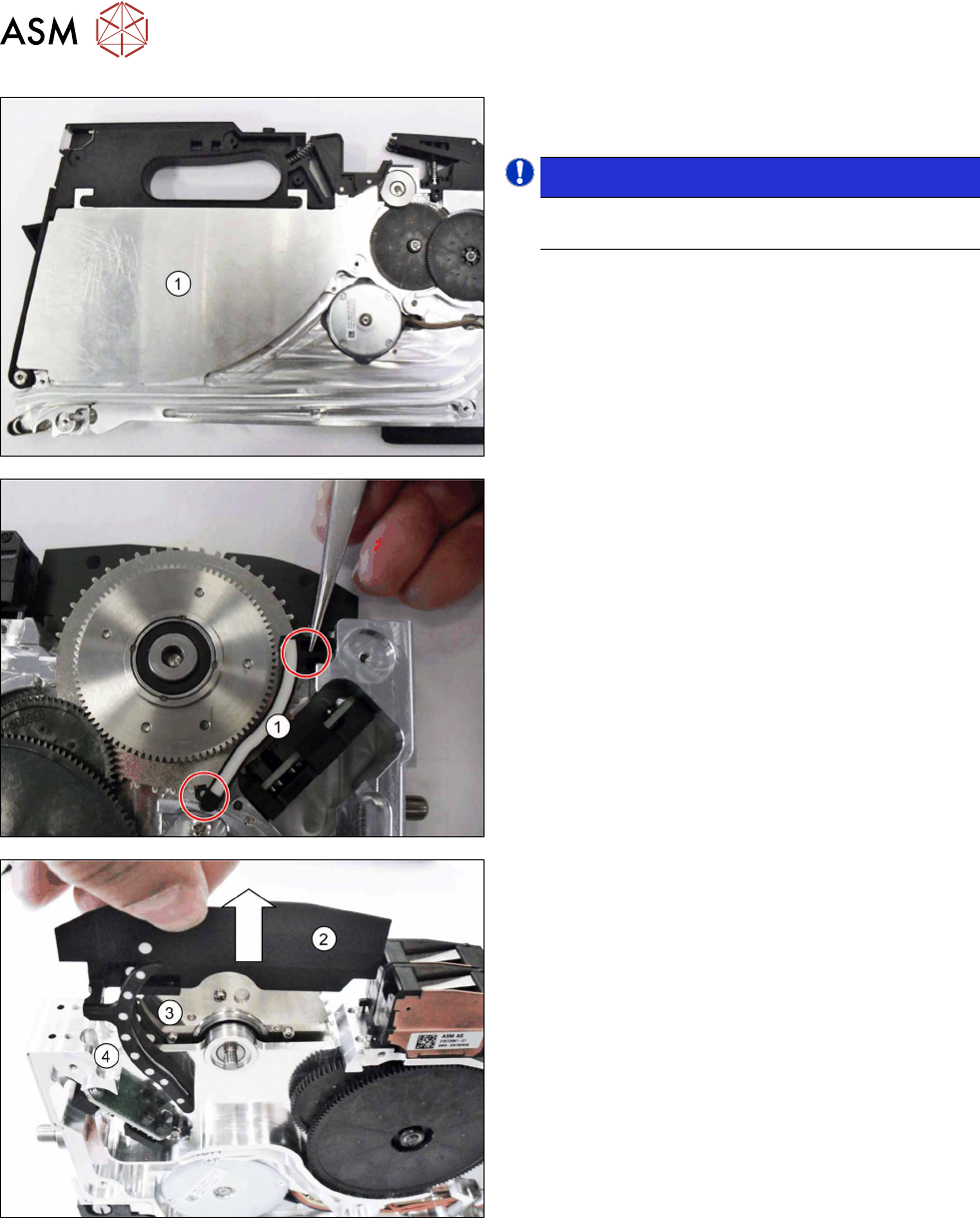

► Remove the outer panel(1) from the right foil
container.
NOTICE!
Take note: the outer panel is only placed on top
and could fall out.
.
The right sealing element(1) is attached to the middle
sealing element with two pins.
► Use tweezers to pull the two marked pin on the
right sealing element(1)
out of the middle sealing
element.
► Pull the remaining sealing elements(2), (3); and
(4)
up and out of the feeder module.
► In the area now accessible, remove all tape and
component residues.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.6 Sealing elements on pin wheel
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 189
8.6.2 Fitting the sealing elements onto the pin wheel

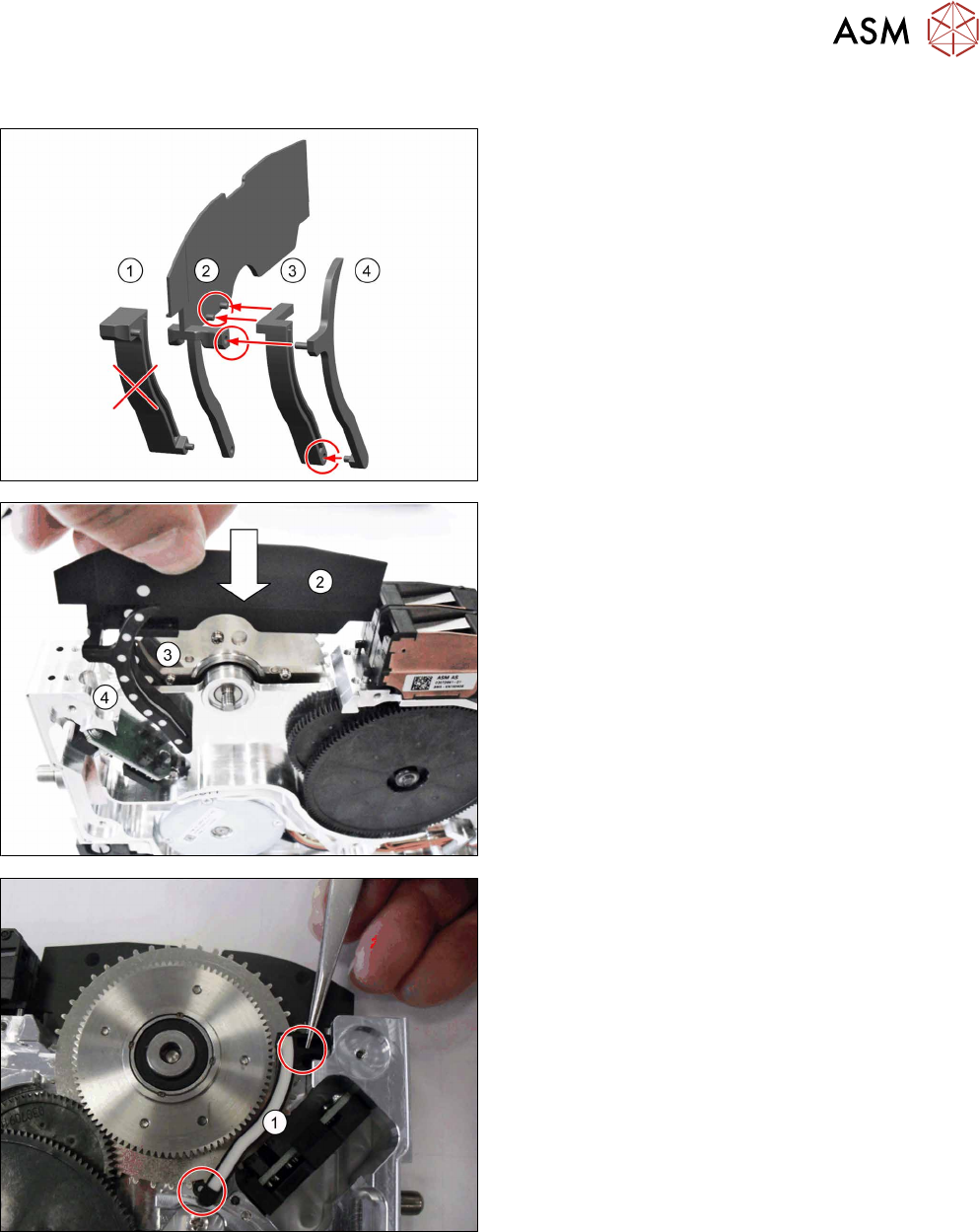

► Fit the left middle sealing element(3) onto the
two marked pins belonging to the middle sealing
element(2)
.
► Fit the top pin for the left sealing element(4) into
the hole marked for the middle sealing ele-
ment(2)
.
► Fit the bottom pin for the left sealing element(4)
into the hole marked for the left middle sealing
element(3)
.
► The right sealing element(1) is connected later to
the middle sealing element(2)
.
► Insert the preassembled sealing elements(2), (3)
and (4) into the tape drive from above.
► Fit the two pins for the right sealing element(1)
onto the holes in the middle sealing element.
► Press the two pins into the middle sealing ele-
ment, as far as the stopper.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.6 Sealing elements on pin wheel
190 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

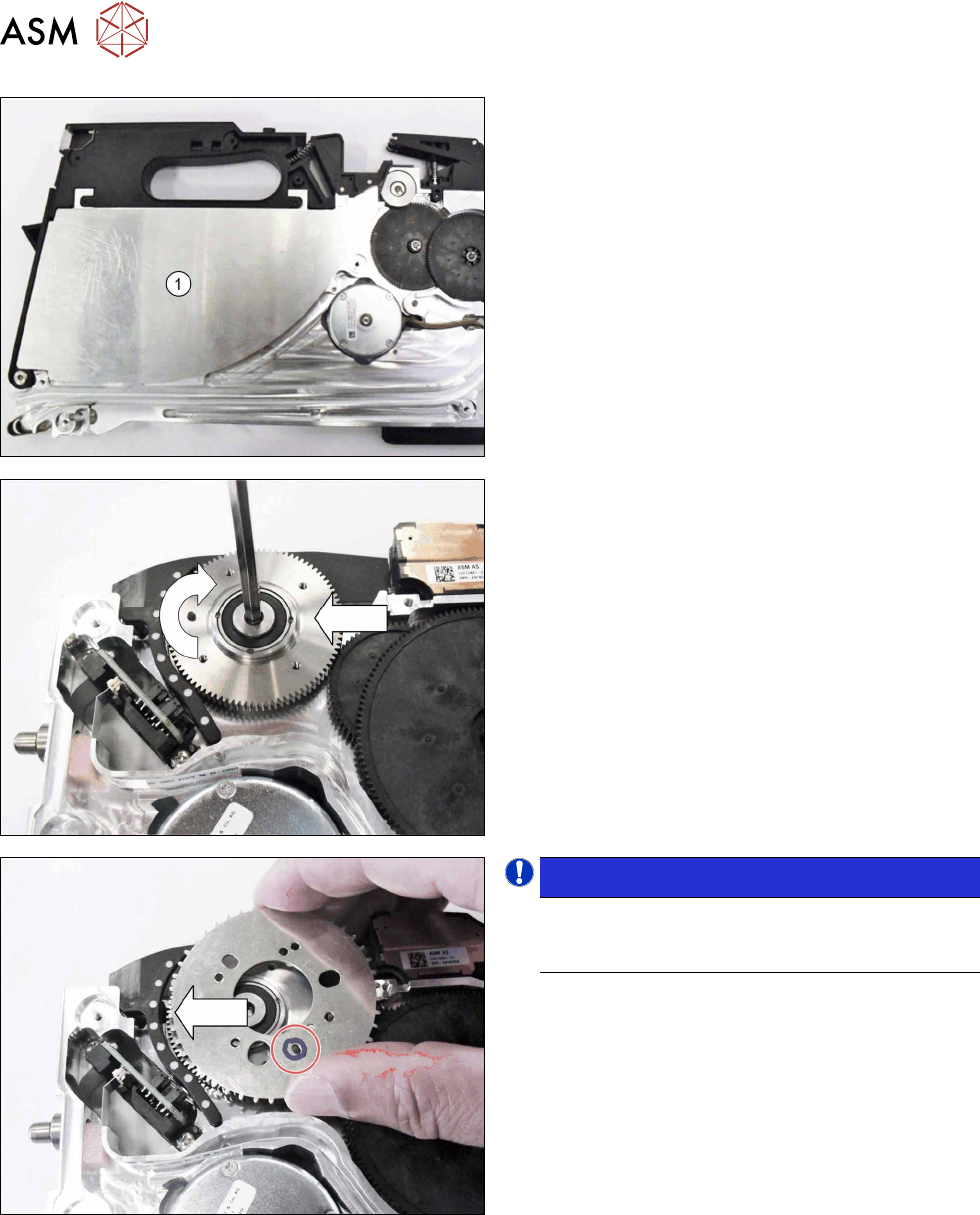

► Refit the outer panel on the right foil container.
► Fit the right side cover (see section 8.3.4 "Fitting
the Right Side Cover" [}176]).
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Fit the pin wheel base onto the threaded axis.
Make sure that the teeth of the pin wheel base
engage securely in the teeth of the shifted gear.
► Use an Allen screwdriver, size 4, to fasten the pin
wheel base bearing.
NOTICE!
Make a note of the marked hole on the pin
wheel base, into which the pin must be inser-
ted during assembly.
.
► Guide the pin crown between the left and middle
sealing elements.
