8 Repairs to SmartFeeder 2x8 mm X / Xi
8.6 Sealing elements on pin wheel
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 191

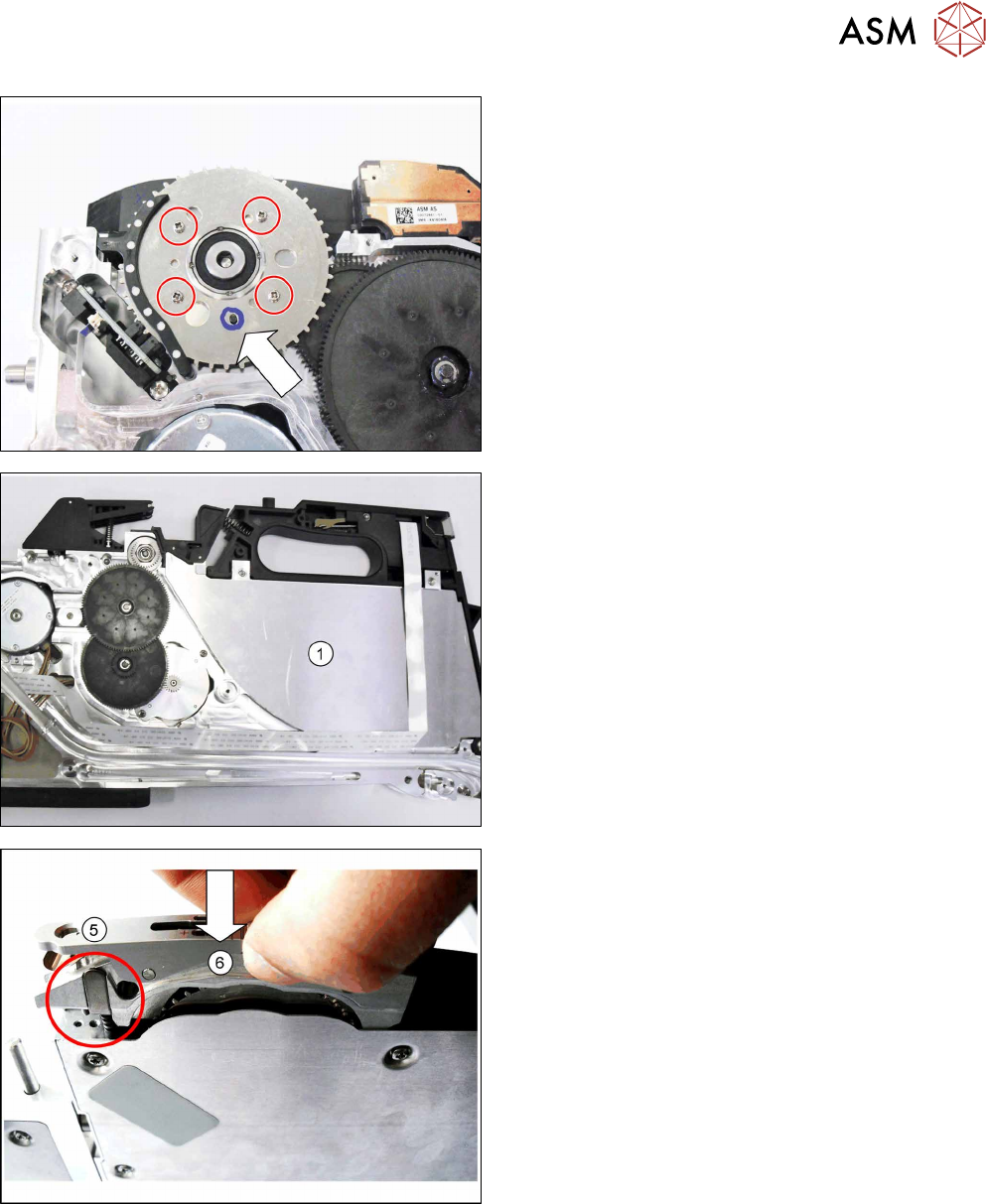

► Fit the pin crown onto the pin wheel base, so that
the pin on the pin wheel base inserts into the
marked hole.
► Fasten the pin crown into place with the 4
marked screws. Use a TORX screwdriver, size
T8, with a torque of 0.6 Nm for this.
► Refit the outer panel on the left foil container.
► Fit the left side cover into place (see section 8.3.2
"Fitting the Left Side Cover" [}175]).
► Insert the pickup window with pressure fork (5)
and tape duct (6), as shown.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.6 Sealing elements on pin wheel
192 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
► Use the 4 marked screws (7) (with which the
pickup windows were previously fastened) to
fasten the two pickup windows and tape duct.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.7 Splice sensor / dummy
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 193
8.7 Splice sensor / dummy
NOTICE
A dummy splice sensor or two splice sensors
The feeder module must always be fitted with either one dummy splice sensor or two splice
sensors.
To fasten the splice sensors, you need 2 screws: the dummy sensor only needs one.
CAUTION
Electrostatic charge
When removing and fitting the splice sensor, observe the currently applicable ESD
guidelines.
Spare part required
Splice sensor X2x8 Dummy splice sensor X2x8
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8 mm Xi
03072661-xx Splice sensor X2x8
03072924-xx Dummy splice sensor X2x8
Tools required
●
Phillips screwdriver
8.7.1 Removing the Dummy Splice Sensor
► Place the feeder module down on a stable sur-
face e.g. a single slot EDIF or place the feeder
module on a level and clean surface.
► Loosen the screw fastening the dummy sensor.
Use a Phillips screwdriver for this.
