8 Repairs to SmartFeeder 2x8 mm X / Xi
8.8 Drives
210 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
► Pull shifted gear 1 straight up (vertically) and off
the axis.
Fitting shifted gear 1 foil left
► Clean the area around the two spindles.
► Grease the two spindles with Polylub GLY801.
► Connect shifted gear1 to the axis.
Make sure that the teeth in the shifted gearcor-
rectly engage with the teeth of the drive.
► Place the washer onto the axis of shifted gear 1.
► Fasten the circlip to the axis of shifted gear 1.
Use the relevant circlip pliers for this.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.8 Drives
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 211
► Connect the new toothed wheel 4 onto the axis.
Make sure that the teeth of toothed wheel 4 cor-
rectly engage with the teeth of the shifted gear.
► Place the washer onto the axis for toothed wheel
4.
► Fasten the circlip to the axis of toothed wheel 4.
Use the relevant circlip pliers for this.
► Fasten the left side cover (see 8.3.2 "Fitting the
Left Side Cover" [}175]).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.8 Drives
212 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.8.3.2 Shifted gear foil drive right (lane 2)
Spare parts required

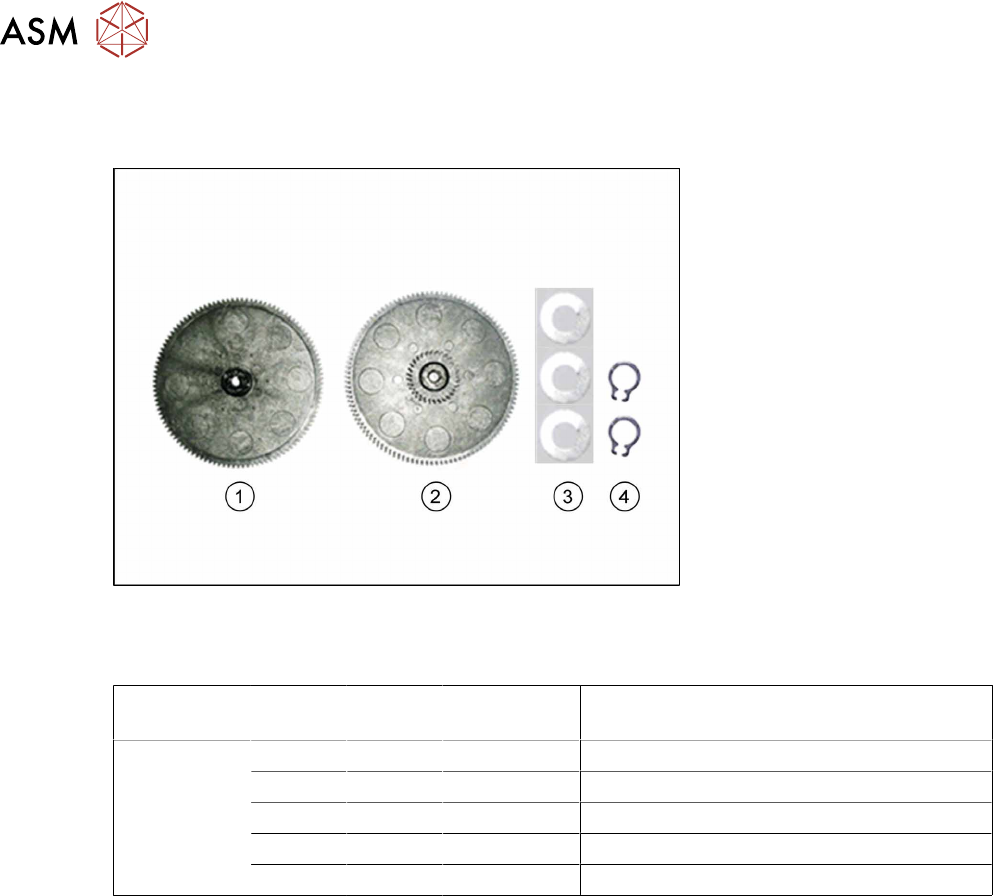

Fig.66: Gear set foil X 2x8mm right [03095487-xx]
The spare parts kit "ETP gear set foil right X 2x8mm" [03095487-xx] contains all the parts in the fol-
lowing table, in the quantities listed.
Feeder mod-
ule
Position Number Item no. Designation
SmartFeeder
2x8mmX
SmartFeeder
2x8mmXi
1 03095487-xx ETP gear set foil right X 2x8mm
1 1 03071607-xx Shifted gear 1 foil right PA /X2x8
2 1 03071605-xx Toothed wheel 4 foil PA /X2x8
3 3 03083028-xx DIN 988-3x6x0.1-1.4310 (washer)
4 2 00305726-xx DIN 471-3x0.4-C67 (circlip)
Tools required
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
●
Circlip pliers for outer rings 3-10 mm
●
Tweezers
●
Polylub GLY 801 (grease)
