8 Repairs to SmartFeeder 2x8 mm X / Xi
8.8 Drives
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 213
Removing shifted gear 1 foil right
► Place the feeder on a stable, level and clean sur-
face.
► Remove the right side cover (see 8.3.3 "Remov-
ing the Right Side Cover" [}175])
► Remove the circlip from the axis of shifted gear 1.
Use the relevant circlip pliers for this.
► Remove the washer.
► Pull shifted gear 1 straight up (vertically) and off
the axis.
► Loosen the screw on the wiper plate.(1)
► Press the two rockers towards the back. (2)
► Remove the wiper plate.(3)
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.8 Drives
214 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

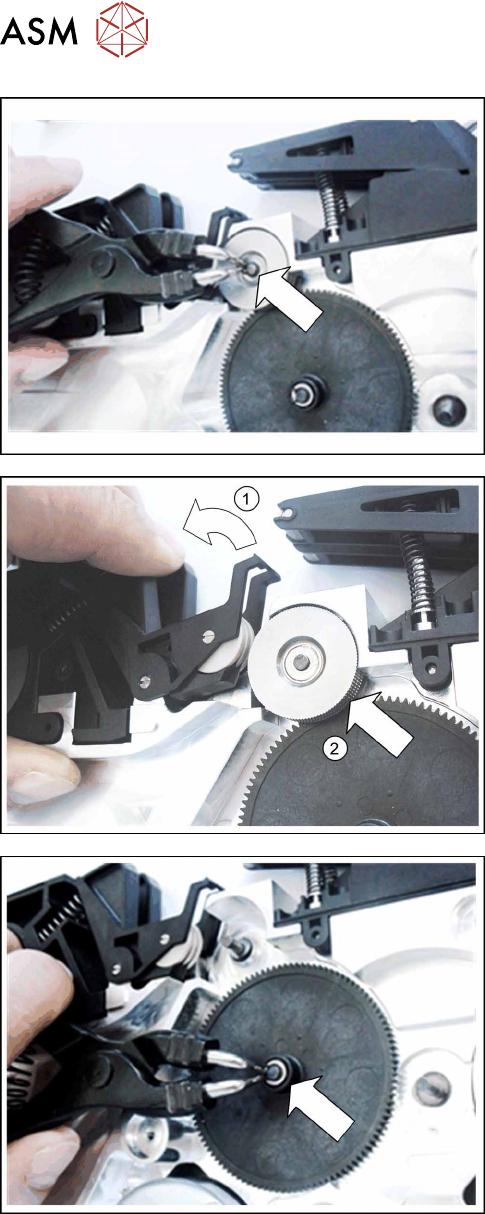

► Remove the circlip from the axis on the tamp
wheel.
Use suitable circlip pliers for this.
► Remove the washer.
► Press the right rocker towards the back.(1)
► Pull the tamp wheel off the axis.(2)
► Remove the circlip from the axis on toothed
wheel 4.
Use suitable circlip pliers for this.
► Remove the washer.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.8 Drives
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 215

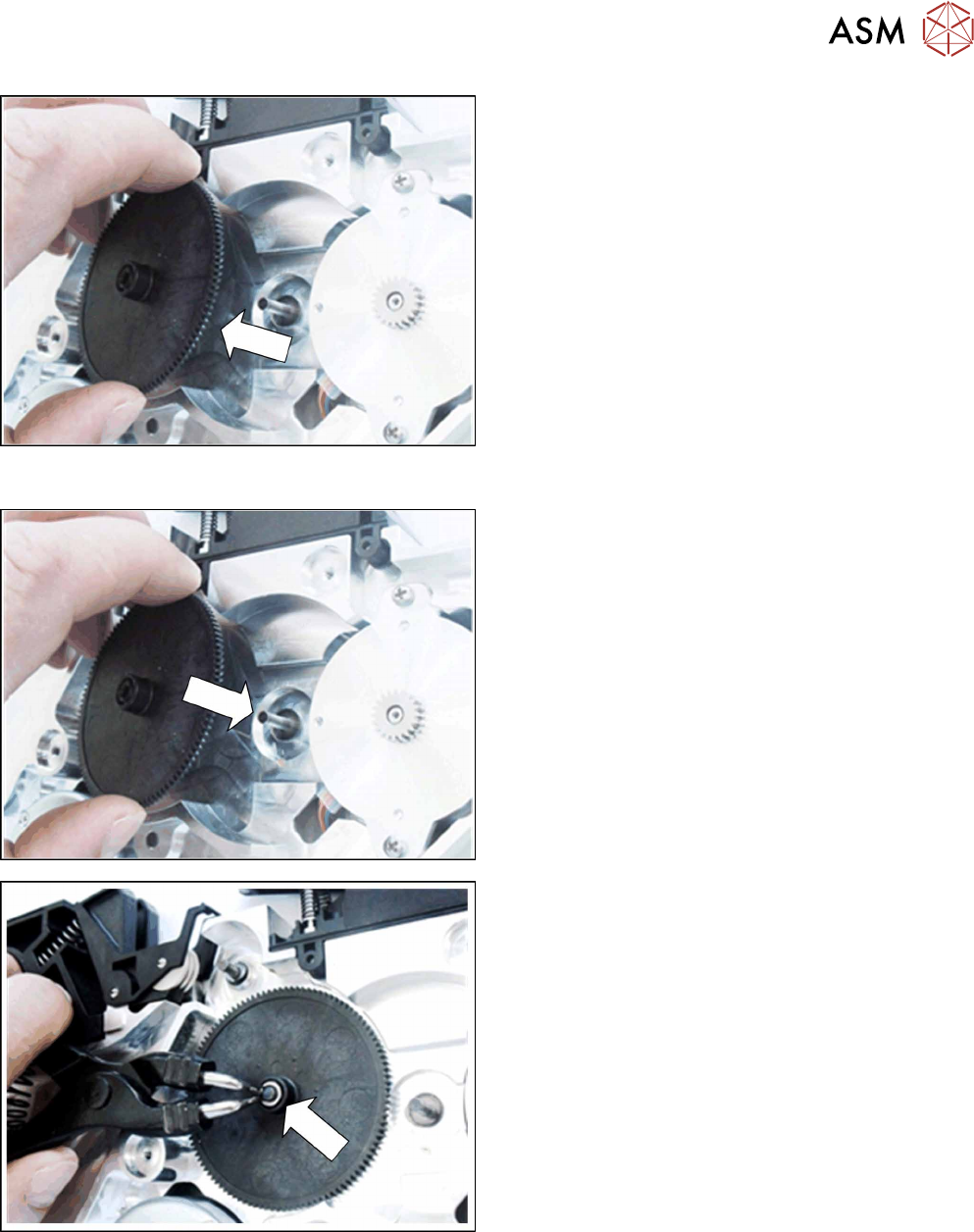

► Pull toothed wheel 4 straight up (vertically) and
off the axis.
Fitting shifted gear 1 foil right
► Clean the area around the two spindles.
► Grease the two spindles with Polylub GLY801.
► Insert the new toothed wheel 4 as far as the stop
onto the axis.
► Place the washer onto the axis for toothed wheel
4.
► Fasten the circlip to the axis.
Use the relevant circlip pliers for this.
