8 Repairs to SmartFeeder 2x8 mm X / Xi
8.8 Drives
216 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

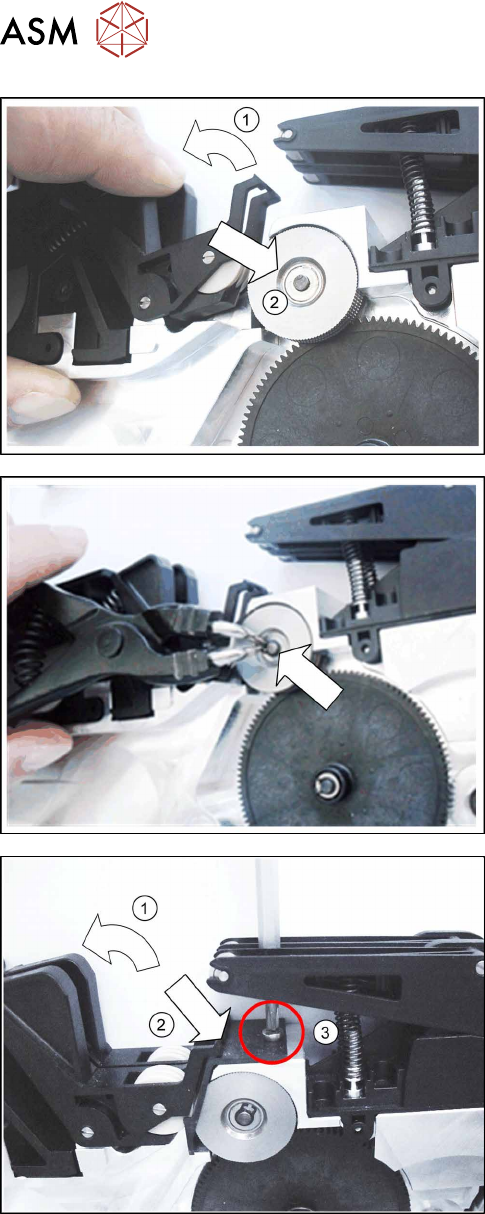

► Press the rocker towards the back.(1)
► Push the tamp wheel as far as the stop onto the
axis.(2)
► Place the washer onto the axis on the tamp
wheel.
► Fasten the circlip to the axis.
Use the relevant circlip pliers for this.
► Press the two rockers towards the back.(1)
► Push the wiper plate to the position shown so
that you can see the hole for the screw through
it.(2)
► Screw the wiper plate into place.(3)
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.8 Drives
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 217

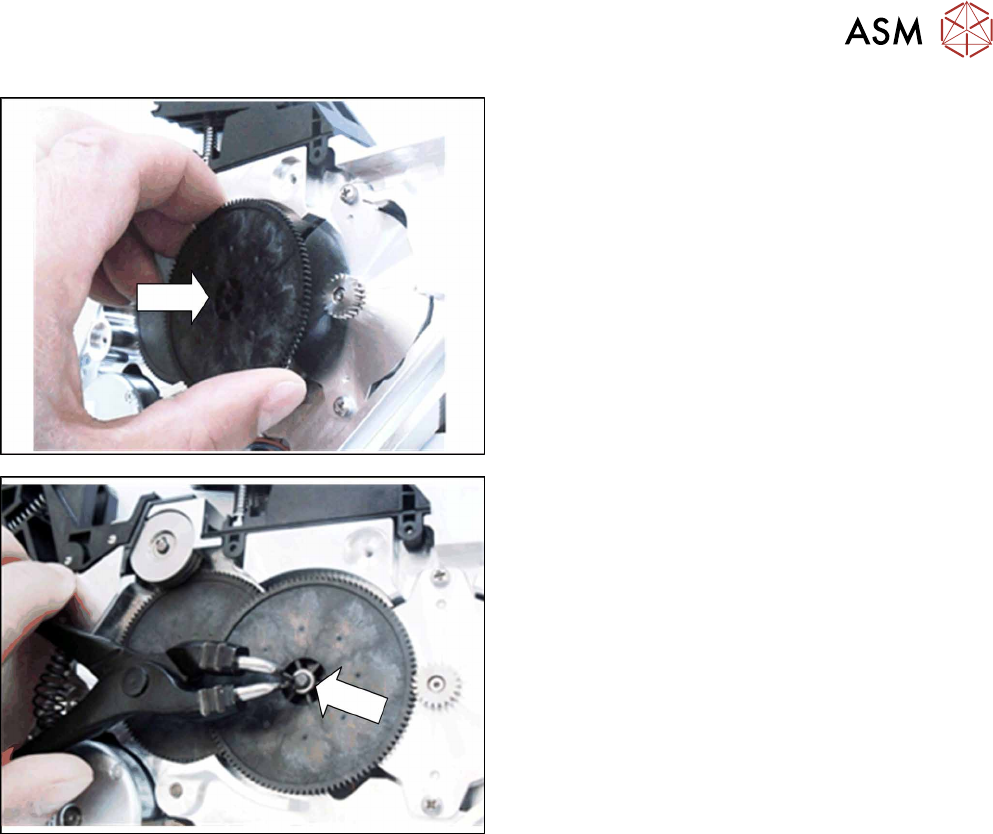

► Push the shifted gear1 as far as the stop onto
the axis.
Make sure that the teeth in the shifted gear1 cor-
rectly engage with the teeth of the drive.
► Place the washer onto the axis of shifted gear 1.
► Fasten the circlip to the axis.
Use the relevant circlip pliers for this.
► Fasten the right side cover (see8.3.4 "Fitting the
Right Side Cover" [}176] ).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.9 Foil rocker
218 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.9 Foil rocker
8.9.1 Foil rocker assembly
Spare part required

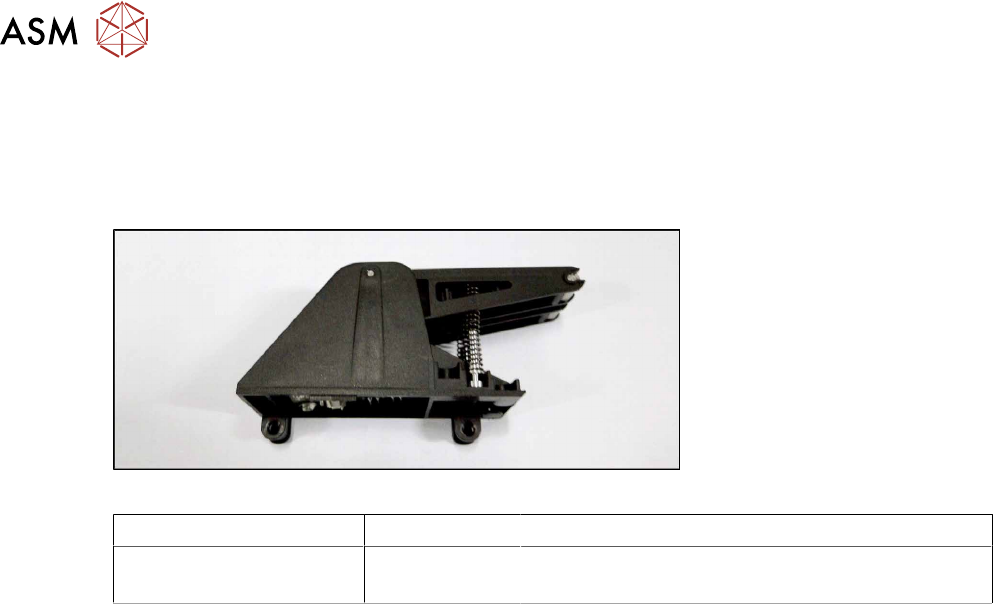

Fig.67: Foil rocker assembly
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8 mm Xi
03066480-xx Foil rocker assembly /X2x8
Tools required
●
TORX screwdriver 0.6Nm, size T8
●
Small flat-bladed screwdriver
