8 Repairs to SmartFeeder 2x8 mm X / Xi
8.9 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 223
8.9.3.1 Removing the Spring Pin with Spring
► Remove the spring pin with a pair of tweezers.
► Remove the spring pin with spring.
8.9.3.2 Fitting the Spring Pin with Spring
The rocker bearing has 3 different positions for the
spring pin.(1)
The higher you position the spring pin, the greater the
tension on the foil will be.
There are 3 pins in the foil rocker, opposite to these 3
positions, so that the spring can be positioned exactly
over the spring pin.(2)
Select the position you want for the spring pin, de-
pending on the required foil tension.
► Insert the spring onto the pin in the foil rocker
which is vertically opposite to the spring pin posi-
tion you chose.
► Use a pair of tweezers to insert the spring pin into
the chosen position in the rocker bearing.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.10 Rocker
224 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.10 Rocker
8.10.1 Rocker assembly
Spare part required

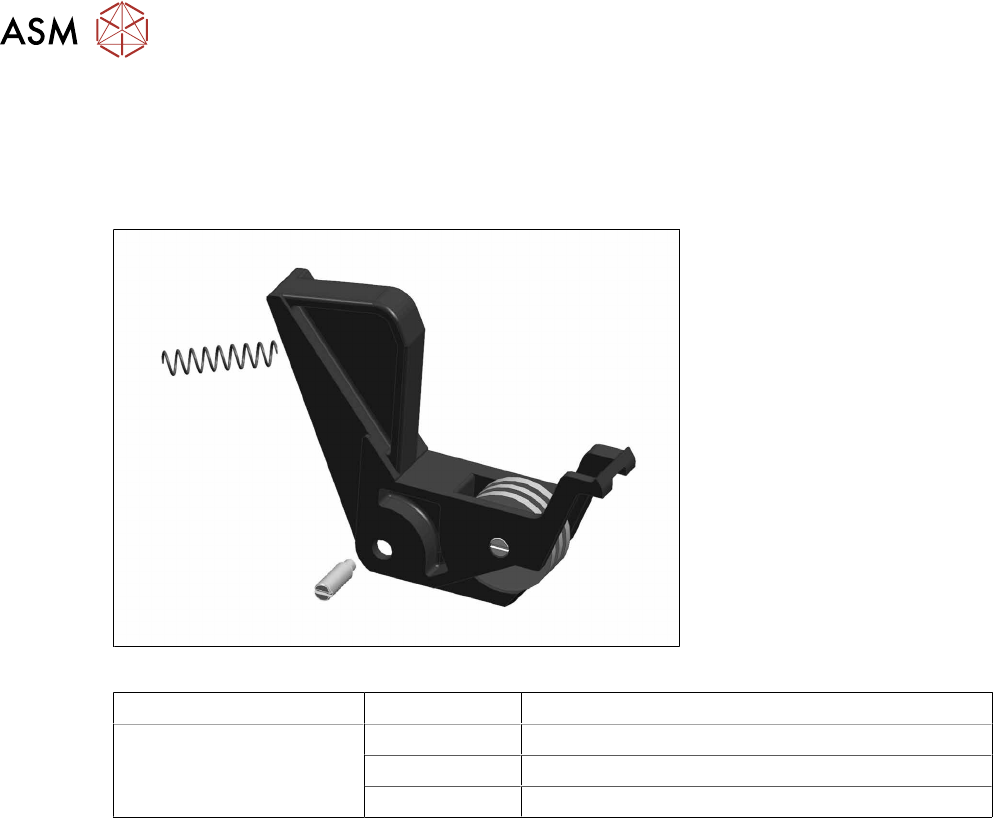

Fig.70: Rocker assembly /X8
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8 mm Xi
03042320Sxx Rocker assembly /X8
03048855-xx Pressure spring 0.75x6.25x31x8.5
03042321-xx Bearing shaft for rocker /X8
Tools required
●
Flat-bladed screwdriver
●
Tweezers
●
Split pin punch size 1.4
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.10 Rocker
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 225

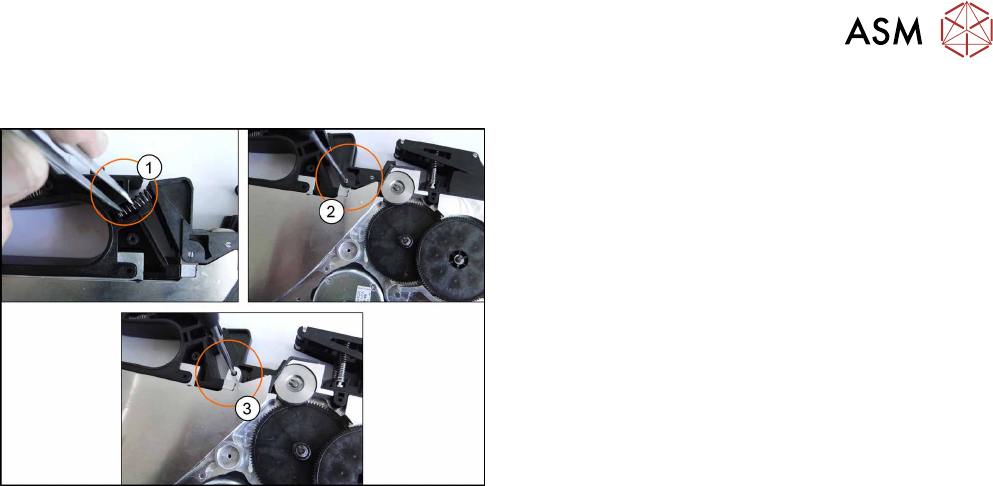

8.10.1.1 Removing the Rocker Complete
► Place the feeder module with the left side down
on a stable, level and clean surface.
► Remove the right side cover (see 8.3.3 "Remov-
ing the Right Side Cover" [}175]).
► Remove the pressure springs.(1)
► Screw off the bearing shaft and remove the
rocker.(2)
► Where necessary, unscrew and remove the bear-
ing shaft and then remove the other rocker(3)
.
8.10.1.2 Fitting the rocker
► Refit the left rocker.
► Insert the right-hand rocker again.
► Reinsert the pressure springs.
► Fit the right side cover (see 8.3.4 "Fitting the Right Side Cover" [}176]).
