8 Repairs to SmartFeeder 2x8 mm X / Xi 8.11 Knurled Tamp Wheel Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 229 8.11.3 Removing the knurled tamp wheel right ► Place the f…
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.11 Knurled Tamp Wheel
228 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.11.1 Removing the knurled tamp wheel left
► Place the feeder on a stable, level and clean sur-
face.
► Remove the left and right side covers. (See 8.3.1
"Removing the Left Side Cover" [}174], 8.3.3
"Removing the Right Side Cover" [}175])
► Remove the rocker. (See 8.9.1.1 "Removing the
Foil Rocker Cpl." [}219])
► Remove the stripping device. (See 8.12.1 "Re-
moving the wiper" [}230])
► Remove the toothed wheel 4 tape. (See Remov-
ing the Gear Wheel 4 Foil left)
► Remove the circlip.(1)
► Remove the top washer.(2)
► Remove the tamp wheel.(3)
► Remove the large washer.(4)
8.11.2 Fitting the knurled tamp wheel left
► Grease the shaft and the circlip with Polyhub Gly
801.
► Replace the large washer.(1)
► Fit the new knurled tamp wheel.(2)
► Replace the top washer.(3)
► Replace the circlip.(4)
► Refit the toothed wheel 4 tape. (See Fitting the
Gear Wheel 4 Foil left)
► Reinsert the stripping device (see 8.12.2 "Fitting
the wiper" [}230]).
► Reinsert the rocker (see 8.9.1.2 "Fitting the Foil
Rocker Cpl." [}219]).
► Fit the covers (see 8.3.2 "Fitting the Left Side
Cover" [}175], 8.3.4 "Fitting the Right Side
Cover" [}176]).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.11 Knurled Tamp Wheel
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 229

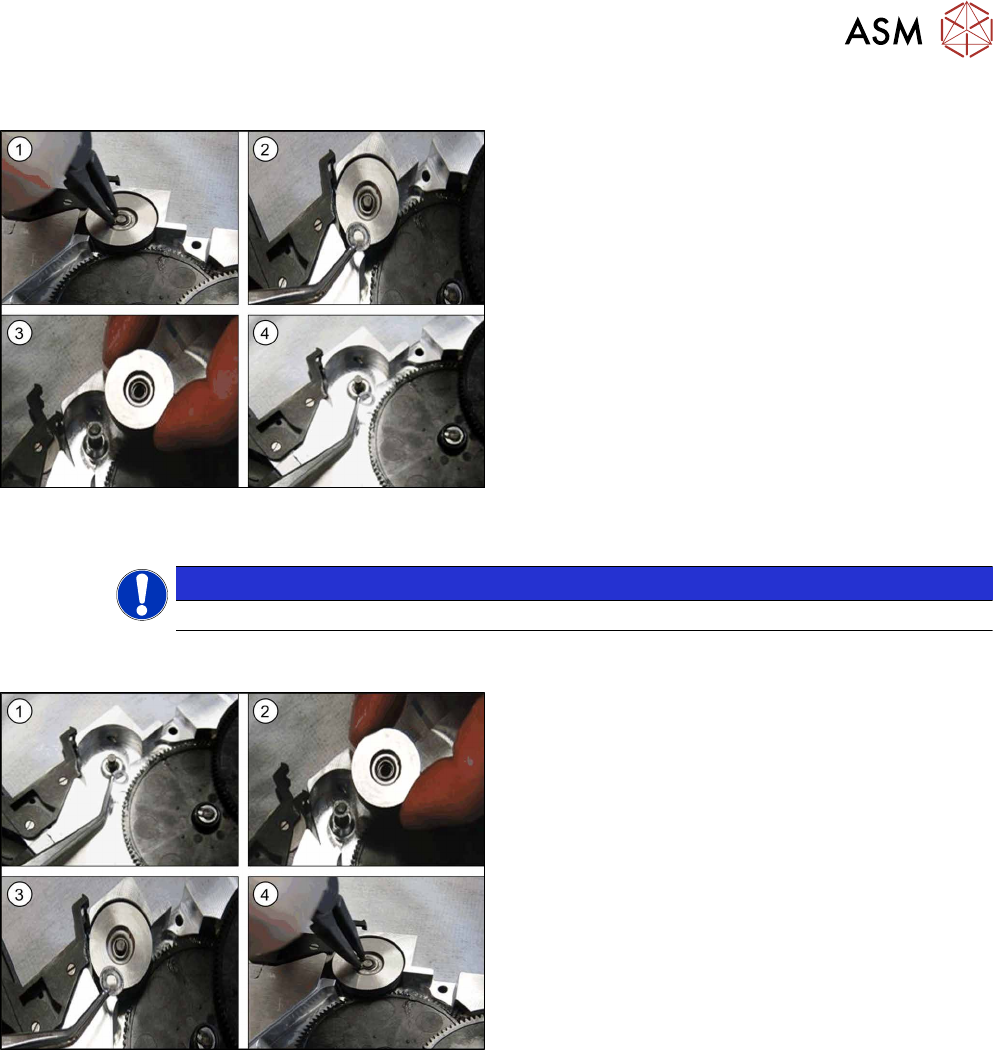

8.11.3 Removing the knurled tamp wheel right
► Place the feeder on a stable, level and clean sur-
face.
► Remove the left and right side cover (see 8.3.1
"Removing the Left Side Cover" [}174], 8.3.3
"Removing the Right Side Cover" [}175]).
► Remove the rocker (see 8.9.1.1 "Removing the
Foil Rocker Cpl." [}219]).
► Remove the stripping device (see 8.12.1 "Remov-
ing the wiper" [}230]).
► Remove the toothed wheel 4 tape (see Removing
the Gear Wheel 4 Foil right).
► Remove the circlip.(1)
► Remove the washer.(2)
► Remove knurled tamp wheel. (3)
► Remove the washer.(4)
NOTICE
Ensure that the smaller spacer is below and the larger spacer on top of the tamp wheel.
8.11.4 Fitting the knurled tamp wheel right
► Clean the shaft and circlip with Polyhub Gly 801.
► Replace the washer.(1)
► Fit the knurled tamp wheel.(2)
► Replace the washer.(3)
► Replace the circlip.(4)
► Remove the toothed wheel 4 tape (see Fitting the
Gear Wheel 4 Foil right).
► Reinsert the stripping device (see 8.12.2 "Fitting
the wiper" [}230]).
► Reinsert the rocker (see 8.9.1.2 "Fitting the Foil
Rocker Cpl." [}219]).
► Refit the left and right side covers (see 8.3.2 "Fit-
ting the Left Side Cover" [}175], 8.3.4 "Fitting the
Right Side Cover" [}176]).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.12 Stripper
230 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.12 Stripper
Spare part required

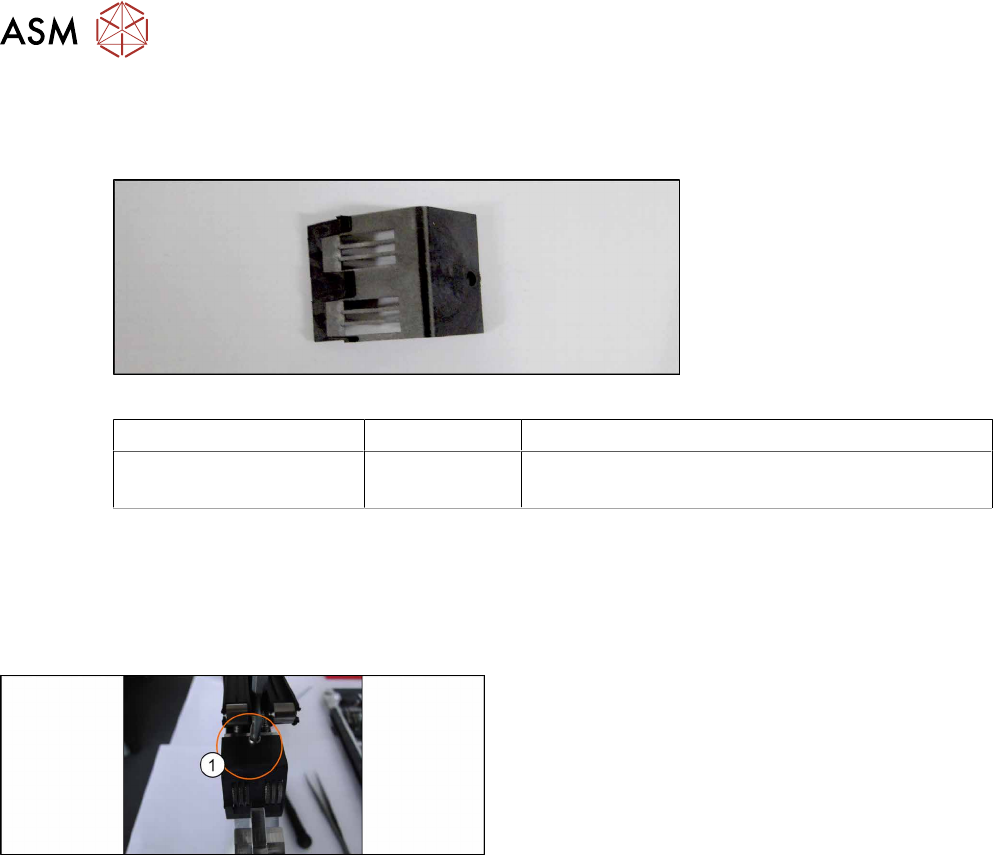

Fig.73: Wiper
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8mmXi
03059930Sxx Wiper
Tools required
●
Phillips screwdriver
●
Flat-bladed screwdriver
8.12.1 Removing the wiper
► Place the feeder on a stable, level and clean sur-
face.
► Remove the right side cover (see 8.3.3 "Remov-
ing the Right Side Cover" [}175]).
► Remove the foil rocker (see 8.9.1.1 "Removing
the Foil Rocker Cpl." [}219]).
► Loosen and remove the marked screw. (1)
► Remove the stripping device.
8.12.2 Fitting the wiper
► Fit the new stripping device. Ensure the knurled tamp wheel does not touch the stripping
device and fasten the screw.
► Refit the foil rocker (see 8.9.1.2 "Fitting the Foil Rocker Cpl." [}219]).
► Fit the right side cover (see 8.3.4 "Fitting the Right Side Cover" [}176]).
