8 Repairs to SmartFeeder 2x8 mm X / Xi
8.12 Stripper
230 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.12 Stripper
Spare part required
Fig.73: Wiper
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8mmXi
03059930Sxx Wiper
Tools required
●
Phillips screwdriver
●
Flat-bladed screwdriver
8.12.1 Removing the wiper
► Place the feeder on a stable, level and clean sur-
face.
► Remove the right side cover (see 8.3.3 "Remov-
ing the Right Side Cover" [}175]).
► Remove the foil rocker (see 8.9.1.1 "Removing
the Foil Rocker Cpl." [}219]).
► Loosen and remove the marked screw. (1)
► Remove the stripping device.
8.12.2 Fitting the wiper
► Fit the new stripping device. Ensure the knurled tamp wheel does not touch the stripping
device and fasten the screw.
► Refit the foil rocker (see 8.9.1.2 "Fitting the Foil Rocker Cpl." [}219]).
► Fit the right side cover (see 8.3.4 "Fitting the Right Side Cover" [}176]).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.13 Flap Tape Disposal
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 231

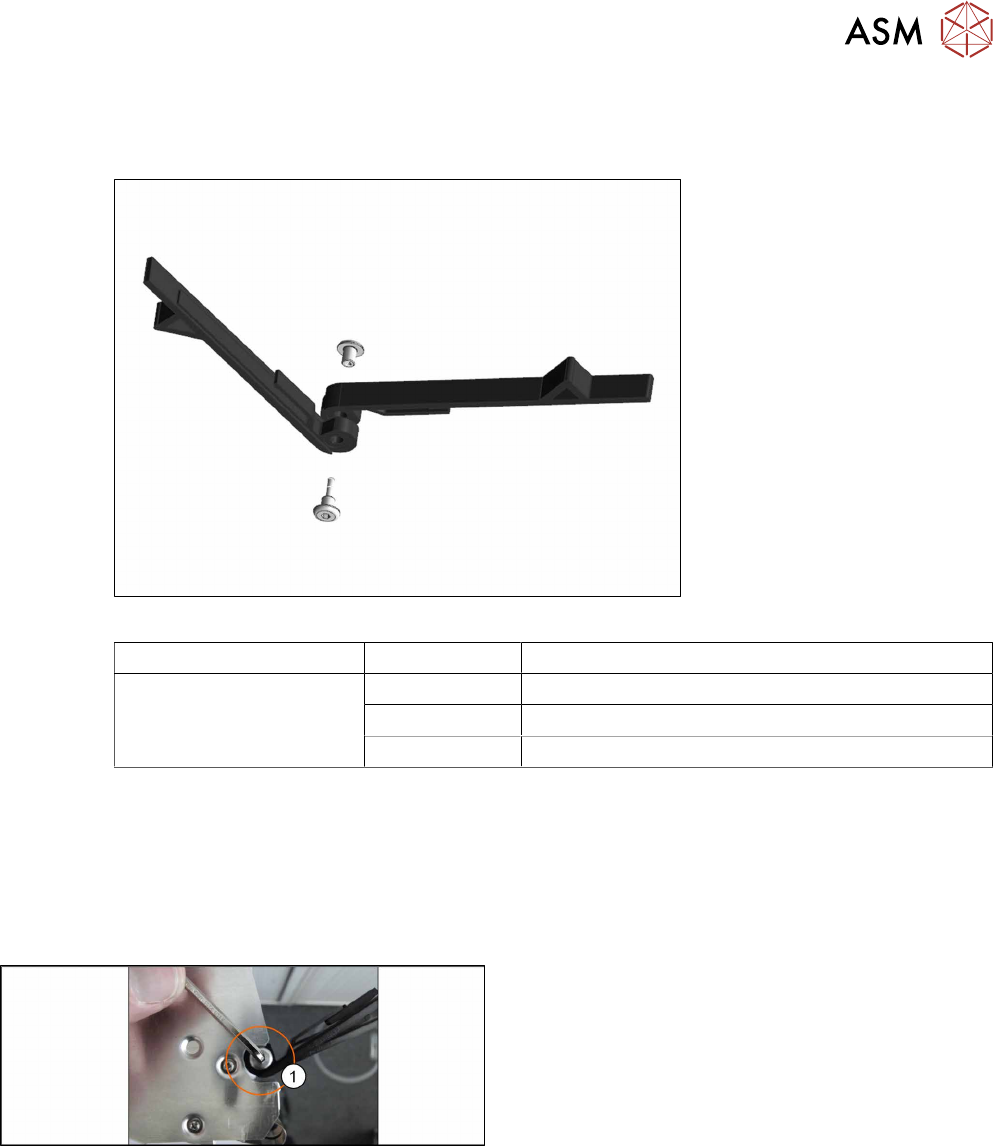

8.13 Flap Tape Disposal
Spare part required
Fig.74: Foil disposal flap
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8mmXi
03072467-xx Foil disposal flap /X2x8
03067306-xx Bearing bolt left flap /X2x8
03067320-xx Bearing bolt right flap /X2x8
Tools required
●
Allen key, size 3
●
TORX screwdriver size T8
●
Phillips screwdriver
8.13.1 Removing the Flap Tape Disposal
► Place the feeder on a stable, level and clean sur-
face.
► Open the flap.
► Remove the marked screwed axle. Hold the
screw on the other side tight while doing so.(1)
► Carefully remove the flap from the feeder mod-
ule.
8.13.2 Fitting the Flap Tape Disposal
► Carefully insert the flap, from the side, into the foil container.
► Tighten the screwed axle.(1)
► Close the flap.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.14 Foil disposal blade
232 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.14 Foil disposal blade
Spare part required
Fig.75: Blade partition wall
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8mmXi
00341370Sxx Blade partition wall
NOTICE
Pay attention when preparing the individual blades. Individual blades must be broken at the
cutter edge. Ensure all safety precautions are observed.
Tools required
●
TORX screwdriver 0.6Nm, size T8
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
8.14.1 Removing the Blade Partition Wall
► Place the feeder on a stable, level and clean surface.
► Open the flap.
► Loosen the screw fastening the blade and remove the old blade.
8.14.2 Fitting the Blade Partition Wall
► Place the new blade in position and tighten the screw.
CAUTION
► The blades are sharp, take necessary safety precautions.
