8 Repairs to SmartFeeder 2x8 mm X / Xi
8.14 Foil disposal blade
232 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

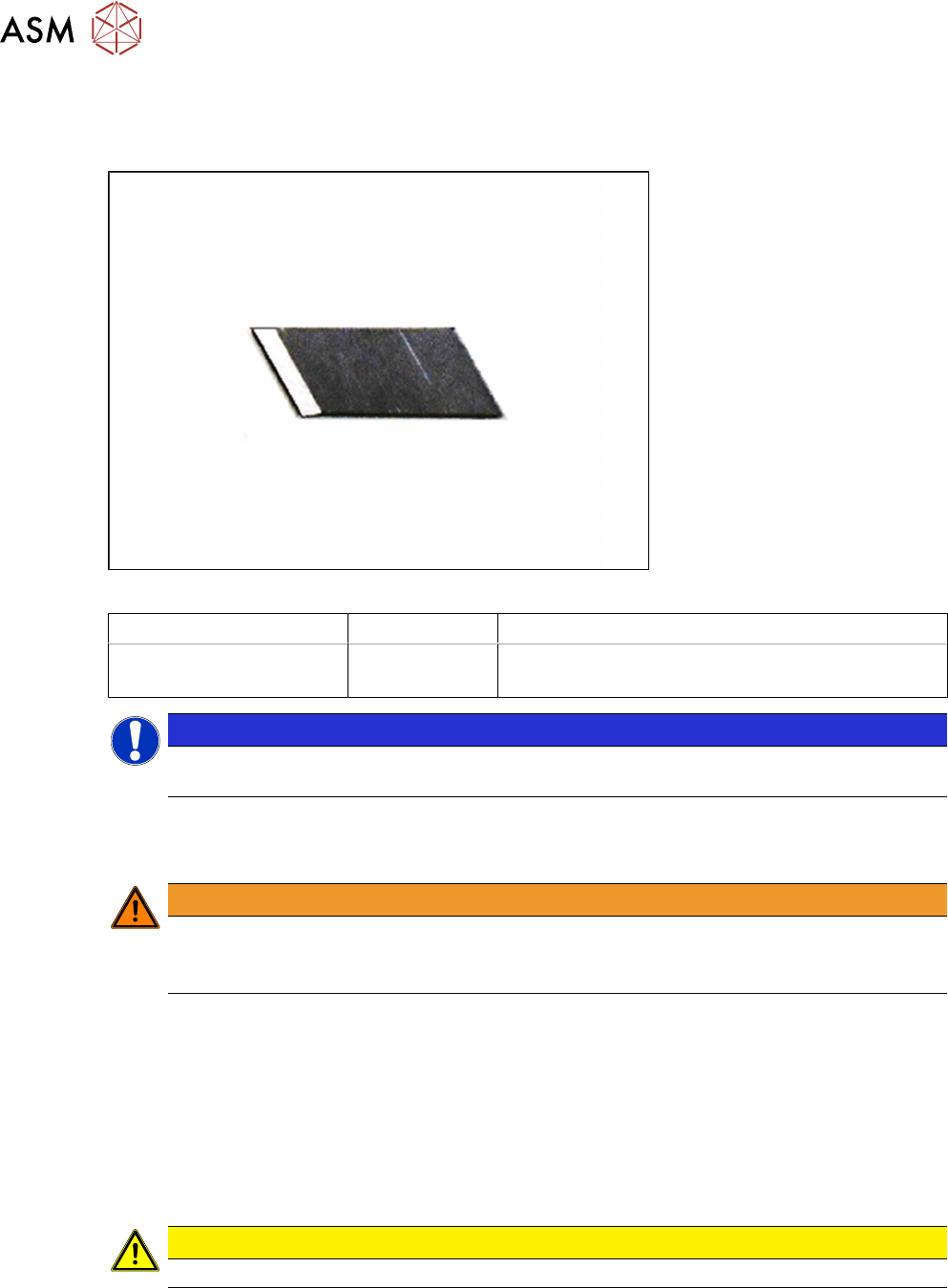

8.14 Foil disposal blade
Spare part required
Fig.75: Blade partition wall
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8mmXi
00341370Sxx Blade partition wall
NOTICE
Pay attention when preparing the individual blades. Individual blades must be broken at the
cutter edge. Ensure all safety precautions are observed.
Tools required
●
TORX screwdriver 0.6Nm, size T8
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
8.14.1 Removing the Blade Partition Wall
► Place the feeder on a stable, level and clean surface.
► Open the flap.
► Loosen the screw fastening the blade and remove the old blade.
8.14.2 Fitting the Blade Partition Wall
► Place the new blade in position and tighten the screw.
CAUTION
► The blades are sharp, take necessary safety precautions.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.15 Leaf spring
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 233

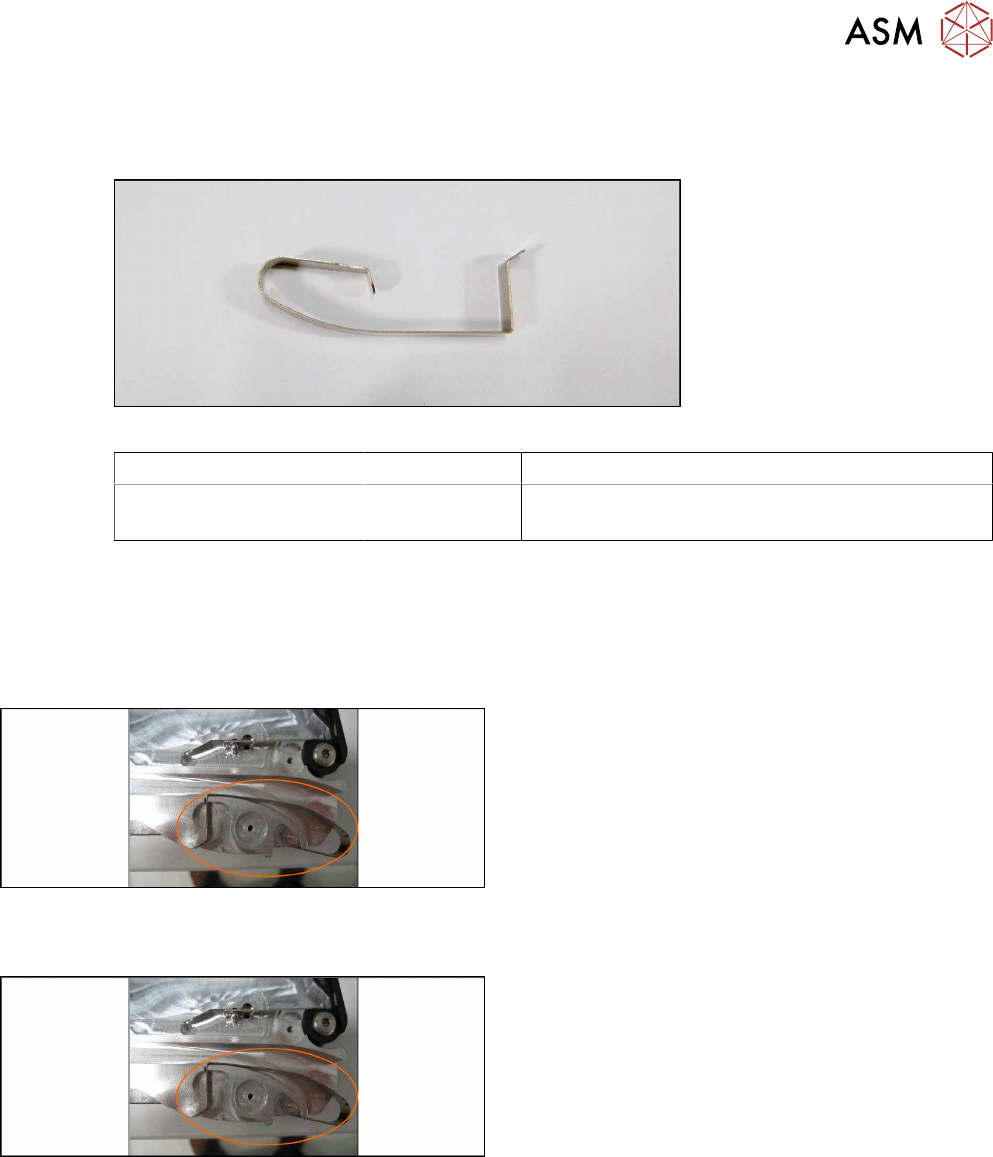

8.15 Leaf spring
Spare part required
Fig.76: Leaf spring tape infeed
Feeder module Item no. Designation
SmartFeeder 2x8mmX
SmartFeeder 2x8mmXi
03071618-xx Leaf spring tape infeed /X2x8 PT V1
Tools required
●
Phillips screwdriver
●
TORX screwdriver size T8
8.15.1 Removing the Leaf Spring Infeed
► Place the feeder on a stable, level and clean sur-
face.
► Depending on which leaf spring is damaged,
remove either the left or right side cover (see
8.3.1
"Removing the Left Side Cover" [}174],
8.3.3
"Removing the Right Side Cover" [}175]).
► Lift the leaf spring straight up and out of the hold-
ing device.
8.15.2 Fitting the Leaf Spring Infeed
► Insert the leaf spring vertically (from above) into
the holding device.
► Ensure the leaf spring is sitting correctly.
► Fasten the left or right side cover (see 8.3.2 "Fit-
ting the Left Side Cover" [}175], 8.3.4 "Fitting the
Right Side Cover" [}176]).
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.16 Handle with control panel
234 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.16 Handle with control panel
Spare part required
NOTICE
New spare part
Spare part "Handle X2x8" [03072432Sxx] is no longer available.
This item can only be replaced as a complete unit.
The new "Handle X2x8 assy. [03170776-xx] is available as a compatible replacement.
It is now possible to replace individual parts of this handle.
Fig.77: Handle X2x8 assy.
Feeder module Item no. Designation
SmartFeeder 2x8mmX 03170776-xx Handle X2x8 assy. (prefitted with flat ribbon cable)
SmartFeeder 2x8 mm Xi 03172629-xx Handle X2x8i assy. (prefitted with flat ribbon cable)
Tools required
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver size T8, 0.6Nm
●
Tweezers
