8 Repairs to SmartFeeder 2x8 mm X / Xi 8.16 Handle with control panel 238 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 8.16.3.1 Removing individual parts from the handle …

100%1 / 246
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.16 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 237
8.16.3 Individual parts on the handle
Spare parts required
Fig.78: Individual parts on the handle SmartFeeder 2x8 mm X/Xi
NOTICE
Other slide for SmartFeeder 2x8 mmXi
In order to visually differentiate Xi feeder modules from the "normal" X feeder modules, a
different slide is used, with a clearly corrugated surface on the outside.
Feeder module Position Item no. Designation
SmartFeeder 2x8mmX 1 03092491-02 Slide assy. X24-104
SmartFeeder 2x8mmXi 1 03172631-01 Slide assy. X2x8i
SmartFeeder 2x8mmX
SmartFeeder 2x8 mm Xi
2 03009150Sxx Pressure spring VD-090V
3 03147373-01 Sleeve retaining spring X24-104Smart
curved
4 03033796-01 RF-SN75-2.5 x 6-9.8
5 03113312-01 Handle base X24-104
6 03167407-02 PCBA control panel X2x8 v4
7 03167618-01 Assembly spacer control panel X2x8 V4
8 03113588-01 Cover, handle X24-104
9 03110496-01 Window for control panel
10 03063592-01 Cable control panel X2x8
Tools required
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers or flat pliers
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.16 Handle with control panel
238 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
8.16.3.1 Removing individual parts from the handle
► Carefully place the feeder module with the right side down on a stable, level and clean sur-
face.
► Remove the left side cover (see 7.3.1 "Removing the Left Side Cover" [}102]).
► Remove the operating panel (see 7.15.2.1 "Removing the Control Panel and Board" [}152]).
If you have removed the operating panel, the cover on the foil stuffing unit will be accessible and
can be replaced if necessary.
► Pull the slide up and out of the handle. (1)
► Remove the pressure spring. (2)
► Remove the screw which fastens the spring
hook(1)
to the handle.
► Remove the spring hook.
8 Repairs to SmartFeeder 2x8 mm X / Xi
8.16 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 239
8.16.3.2 Fitting individual parts to the handle

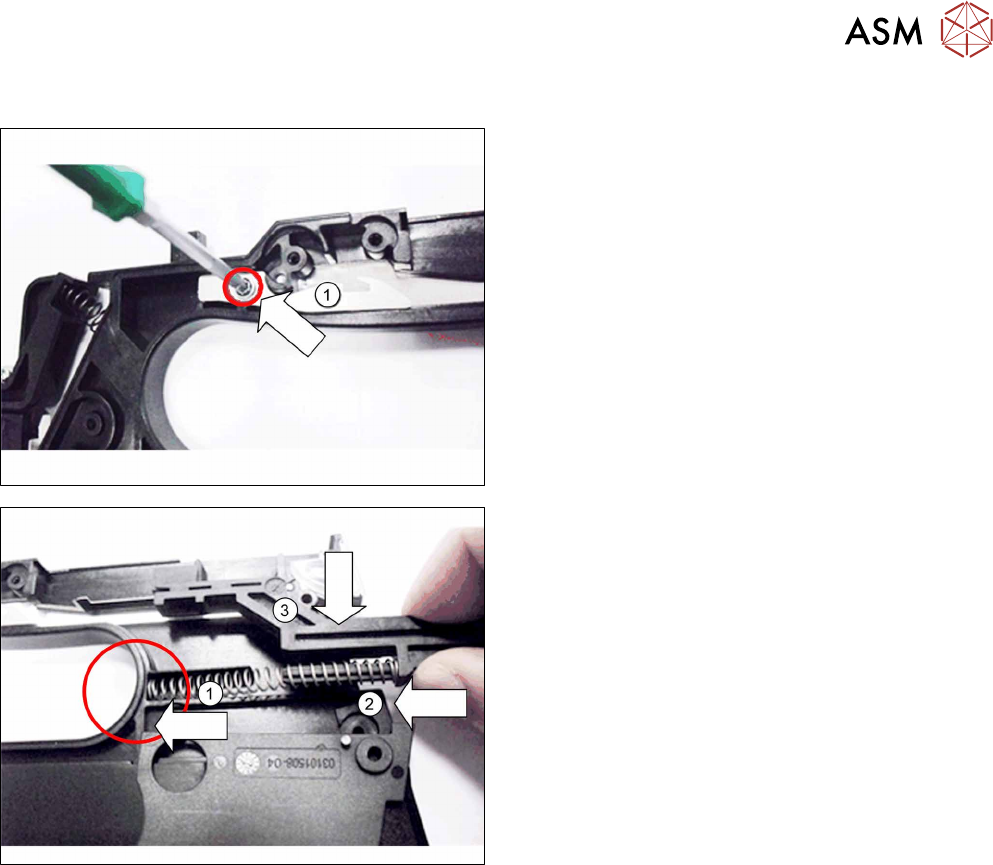

► Hold the spring hook as shown(1) by the handle,
so that you can look through the opening and see
the hole for the screw.
► Screw the spring hook to the handle. Use a size
T8 TORX screwdriver with 0.6 Nm for this.
► Push one end of the pressure spring in the
handle, as shown.(1)
► Insert the slide into the other end of the pressure
spring.(2)
► Press the slide into the pressure spring and insert
it from above, into the handle.(3)
At this point, the cover on the foil stuffing unit will be accessible and can be replaced if necessary,
before you fit the operating panel.
► Fasten the operating panel (see 7.15.2.2 "Fitting the Control Panel and Board" [}153]).
► Fasten the left side cover (see 7.3.2 "Fitting the left side cover" [}102]).
