6 Repairs to SmartFeeder 4 mm X / Xi 6.2 Rear Sliding Guide Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 27 6.2 Rear Sliding Guide Required spare part Fig.3: Rear slidin…
6 Repairs to SmartFeeder 4 mm X / Xi
6.1 Front sliding guide/sliding foil
26 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

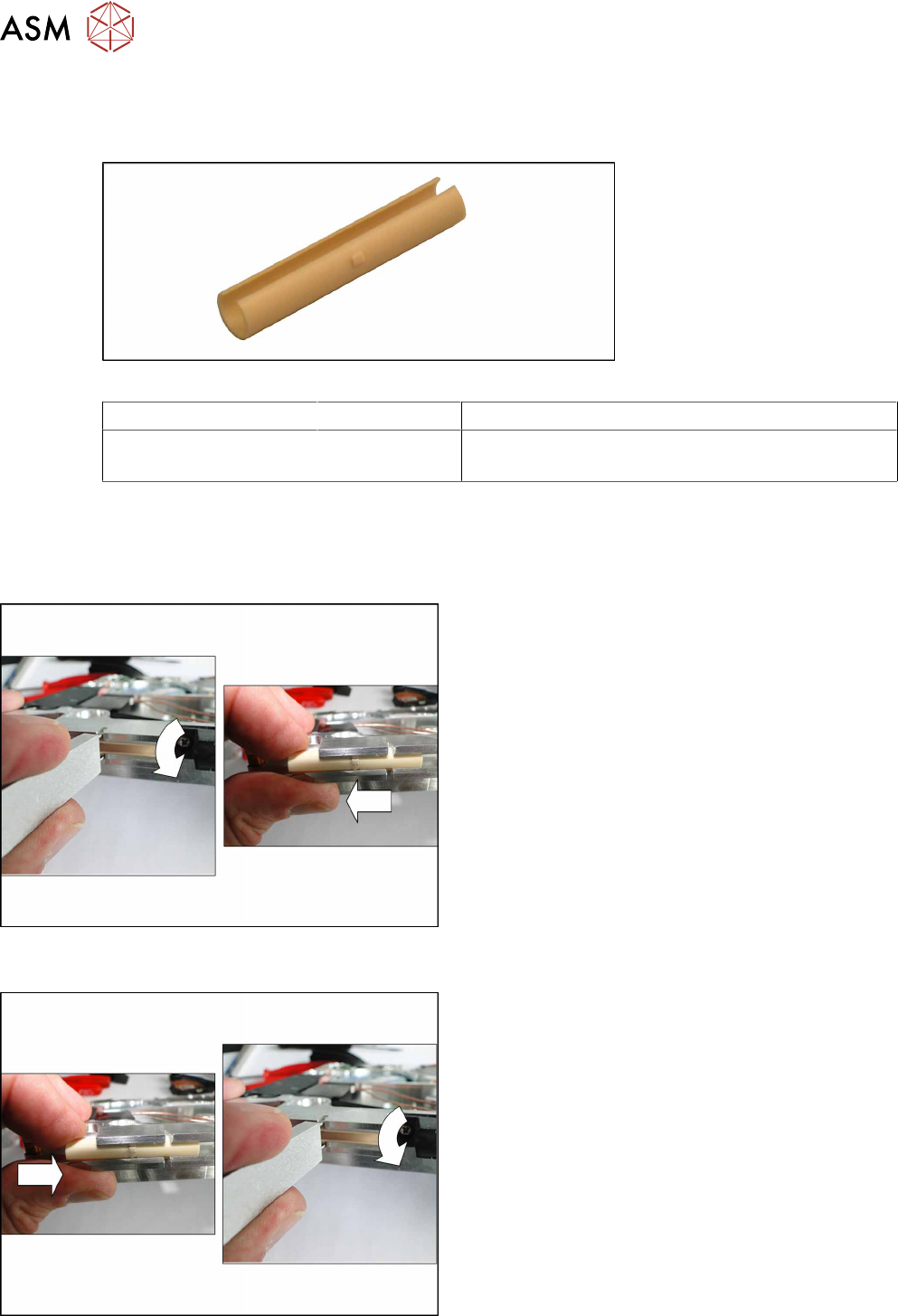

6.1 Front sliding guide/sliding foil
Required spare part
Fig.2: Sliding foil
Feeder module Item no. Designation
SmartFeeder 4mmX
SmartFeeder 4 mm Xi
03019604Sxx Sliding foil, X-feeder JUM-S-06LY
Tools required
●
Sliding foil remover
6.1.1 Removing the Sliding Foil
► Place the feeder module carefully down on its
side, onto a stable, level and clean surface.
► Place the sliding foil remover into the sliding
guide, as shown in the diagram.
► Lever the sliding foil out of the engaged position.
► Pull the sliding foil out of the sliding guide, to-
wards the front.
6.1.2 Fitting the Sliding Foil
► Press the sliding foil slightly together.
► Push the sliding foil into the sliding guide, from
the front, as far as the end stop.
► Turn the sliding foil, until the slit can be fully seen
and the sliding foil engages audibly.
6 Repairs to SmartFeeder 4 mm X / Xi
6.2 Rear Sliding Guide
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 27
6.2 Rear Sliding Guide
Required spare part
Fig.3: Rear sliding guide
Feeder module Item no. Type Designation
SmartFeeder 4mmX
SmartFeeder 4 mm Xi
03003994-xx
03010209-xx
03158711-xx
A
B
Sliding guide / back L200
ISO 7045 - M2.5 x 6-A2-50-H (1x)
Fillister head self-tapping screw DIN7981
2.9x9.5 (3x)
Tools required
●
Phillips screwdriver 0.6Nm
6.2.1 Removing the Sliding Guide
► Turn the feeder module so that its underside is at
the top.
► Remove the left Phillips screw (type A).
► Remove the other three Phillips screws (type B).
► Lift the gliding slide upwards and off.
6 Repairs to SmartFeeder 4 mm X / Xi
6.2 Rear Sliding Guide
28 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
6.2.2 Fitting the Sliding Guide
► Turn the feeder module so that its underside is at
the top.
► Fit the guiding slide – as illustrated – to the un-
derside of the feeder module.
Observe the arrangement of the drilled holes in
the guiding slide.
► Push the guiding slide, as shown, to the left
(front) towards the front guiding slide, as far as
the stop.
► Now lower the two snap tabs of the guiding slide
into the openings provided on the underside of
the feeder module.
► Fasten the sliding guide on the left side to the
feeder module, using the type A Phillips screw
(ISO 7045 - M2.5 x 6-A2-50-H 03010209-xx)
tightened to 0.6N.
► Fasten the slide guide to the feeder module, us-
ing the other 3 screws of type B (fillister head
self-tapping screw DIN7981 2.9x9.5, 03158711-
xx) and 0.6Nm.
