6 Repairs to SmartFeeder 4 mm X / Xi

6.7 Drives

Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 49

6.7.1.2 Fitting the Foil Disposal Motor

► Carefully place the feeder module with the right

side down on a stable, level and clean surface.

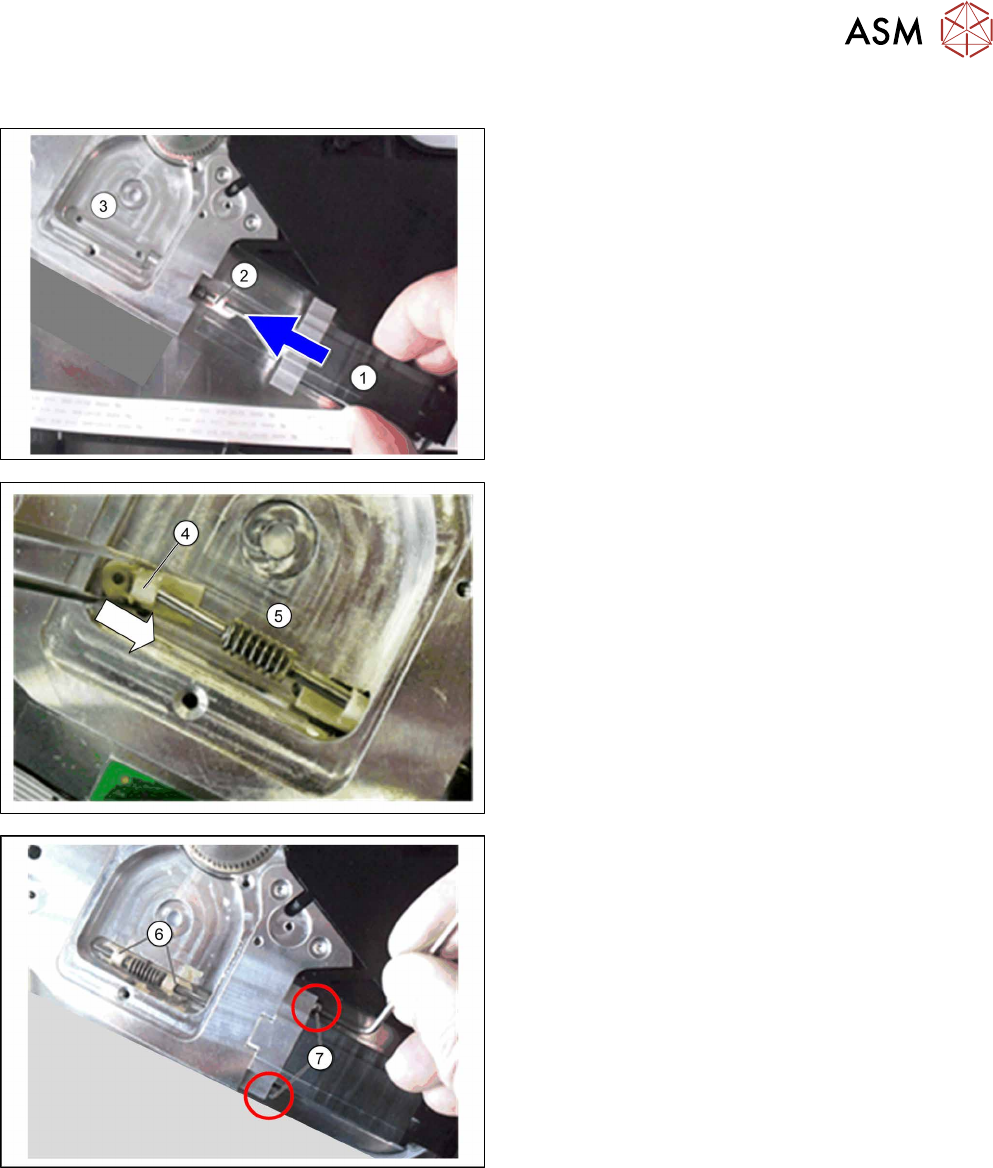

► Push the replacement motor(1) with worm gear

and inner bearing block(2)

carefully into the foil

stripping unit(3)

► When pushing it in, make sure that the motor

shaft is not bent.

► Use tweezers to carefully push the outer bearing

block(4)

onto the motor shaft.

► Apply a little grease to the worm gear(5).

Use Klübersynth GE14-151 for this.

► Push the two bearing blocks(6) into the position

shown.

► Fasten the motor with the two Allen screws

marked(7)

. Use a size 2 angled Allen key for this

(hand-tighten).

► Apply a little grease to the bearing blocks(6).

Use Klübersynth GE14-151 for this.

6 Repairs to SmartFeeder 4 mm X / Xi

6.7 Drives

50 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

► Insert the motor cable connector into the connec-

tion on the control board. (8)

► Close the connection.

► Turn the feeder module onto the other side.

► Fasten the bearing blocks with the two Phillips

screws(9)

(hand-tight).

► If necessary, correct the position of the bearing

blocks.

► Make sure that the spiral gear only has grease on

the small toothed wheel and that the large

toothed wheel is free of grease. You may need to

remove any grease on the larger toothed wheel!

► Place the feeder module in a stable, upright posi-

tion.

► Insert the spiral gear(10) into the hole provided,

with the smaller toothed wheel at the front. Make

sure that the small toothed wheel of the spiral

gear engages properly with the worm gear of the

motor.

► Fasten the spiral gear (hand-tight) with the bear-

ing screw(11)

. Use a flat-bladed screwdriver to

help you.

6 Repairs to SmartFeeder 4 mm X / Xi

6.7 Drives

Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 51

► Tighten the left-hand side of the spiral gear(12)

with a size 4 Allen key(13) and 0.9 Nm.

► Fit the bearing cap(14) onto the foil stripping

unit, as shown.

► Fasten the bearing cap with the three marked

screws ISO 7046-2-M2.5x 6-A2-70-H (item no

03023228-xx)(15)

, using a Phillips screwdriver

and 0.9Nm.

► Fasten the left side cover (see 6.3.2 "Fitting the

Left Side Cover" [}30]).
