6 Repairs to SmartFeeder 4 mm X / Xi 6.9 Rocker 58 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 6.9 Rocker 6.9.1 Replacing the rocker assembly Required spare part: Fig.1…
6 Repairs to SmartFeeder 4 mm X / Xi
6.8 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 57
6.8.2.2 Replacing the creasing roller
► Pull the creasing roller out of the foil rocker.
► Insert the new creasing roller into the foil rocker.
6.8.2.3 Replacing the light barrier transmitter
► Loosen the foil rocker (see 6.8.1.1 "Removing the
Foil Rocker Assembly" [}53]).
► Remove the screw, which fastens the light barrier
transmitter to the rocker bearing unit.
► Pull the light barrier transmitter downwards and
out of the rocker bearing unit.
► Insert the new light barrier transmitter from below
into the rocker bearing unit, as shown.
► Screw the light barrier transmitter to the rocker
bearing unit.
► Fasten the foil rocker (see 6.8.1.2 "Fitting the Foil
Rocker Assembly" [}54]).
6.8.2.4 Replacing the rocker bearing unit
► Loosen the foil rocker unit (see 6.8.1.1 "Removing the Foil Rocker Assembly" [}53]).
► Remove the foil rocker and the pressure spring (see6.8.2.1 "Replacing the foil rocker, axis and
pressure spring" [}55]).
► Remove the light barrier transmitter (see 6.8.2.3 "Replacing the light barrier transmit-
ter" [}57]).
The rocker bearing unit has now been isolated and can be replaced.
► Fasten the light barrier transmitter to the new rocker bearing unit (see 6.8.2.3 "Replacing the
light barrier transmitter" [}57]).
► Fasten the foil rocker (see 6.8.2.1 "Replacing the foil rocker, axis and pressure spring" [}55]).
► Fasten the foil rocker unit (see 6.8.1.2 "Fitting the Foil Rocker Assembly" [}54]).
6 Repairs to SmartFeeder 4 mm X / Xi
6.9 Rocker
58 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
6.9 Rocker
6.9.1 Replacing the rocker assembly
Required spare part:
Fig.13: Rocker for foil disposal assy. X4Smart
Feeder module Position Item no. Designation
SmartFeeder 4mm X
SmartFeeder 4 mm Xi
1 03135376Sxx Rocker for foil disposal assy. X4Smart
2 03156877-xx Pressure spring for rocker 7.3N X4Smart
3 03042321-xx Bearing shaft for rocker /X8
Tools required:
●
Flat-bladed screwdriver size 1
6 Repairs to SmartFeeder 4 mm X / Xi
6.9 Rocker
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 59

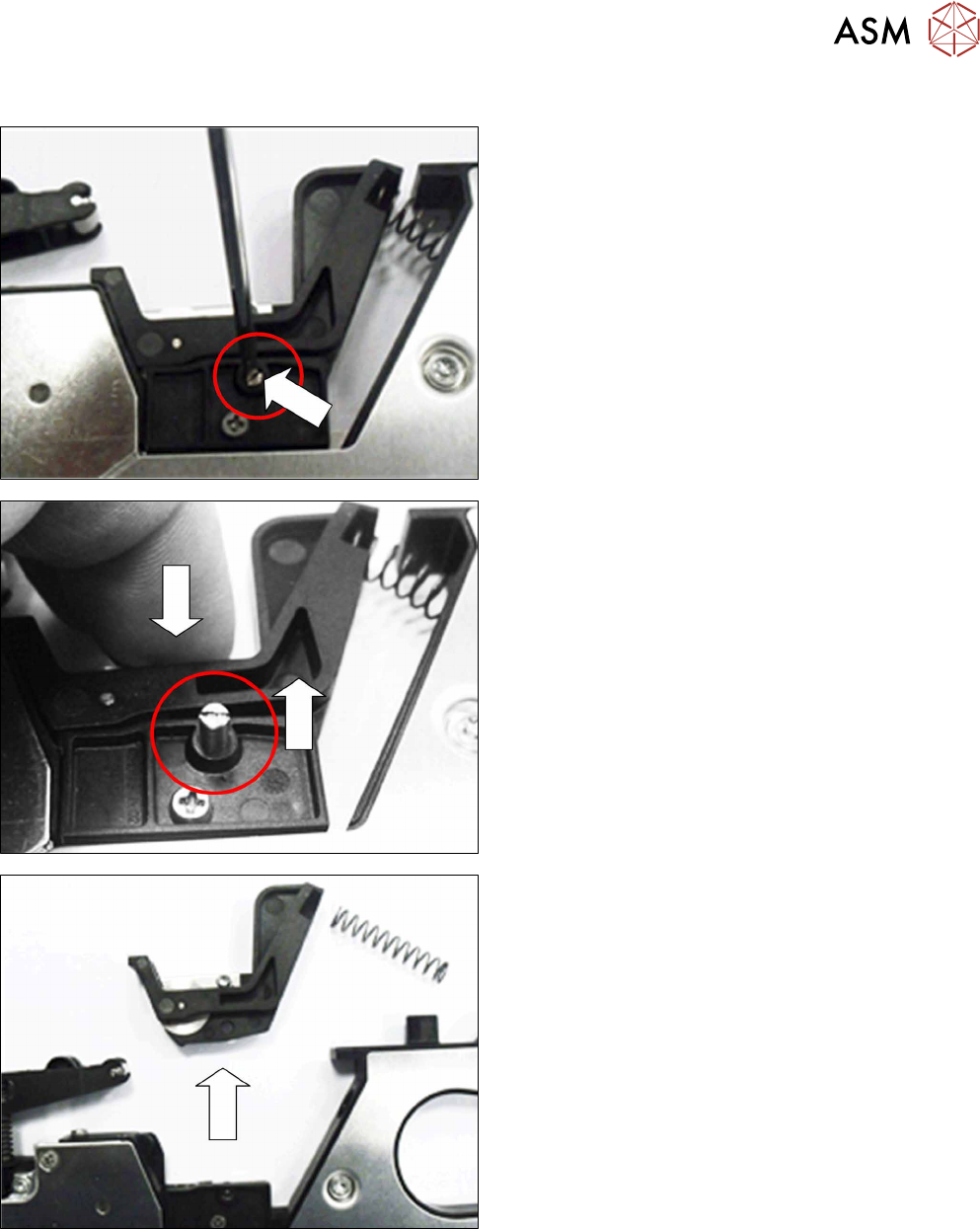

6.9.1.1 Removing the rocker assembly
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Use a size 1 flat-bladed screwdriver to loosen the
bearing shaft (1)
for the rocker.
► Press down on the rocker from above, to take the
tension off the bearing shaft.
► Pull the bearing shaft upwards and out with flat
pliers or a similar tool.
► Lift the rocker up and out of the feeder module.
► Remove the pressure spring.
