6.9.1.2 Fitting the rocker assembly

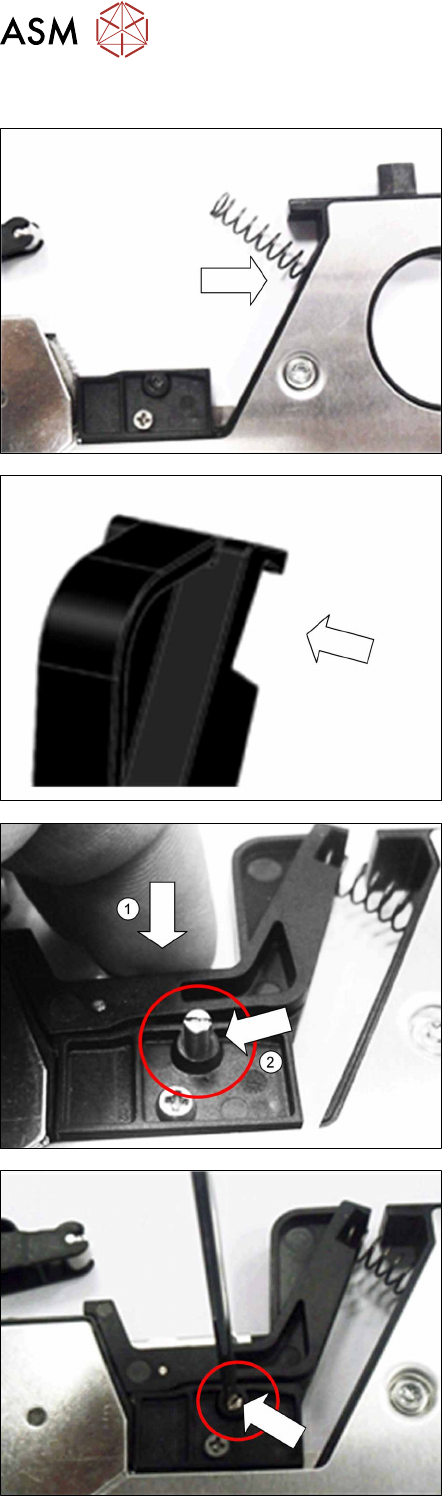

► Carefully place the feeder module with the right side
down on a stable, level and clean surface.
► Fit the pressure springs into the feeder module base
unit.
► Push the pressure spring sideways into the rocker
guidance.
► Press the rocker from above (as shown) into a posi-
tion from which you have a full view of the bearing
shaft hole.(1)
► Insert the bearing shaft with its thread first into this
hole.(2)
► Fasten the bearing shaft hand-tight with a size 1 flat-
bladed screwdriver.
6 Repairs to SmartFeeder 4 mm X / Xi
6.9 Rocker
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 61
6.9.2 Replacing individual rocker parts
Required spare parts:

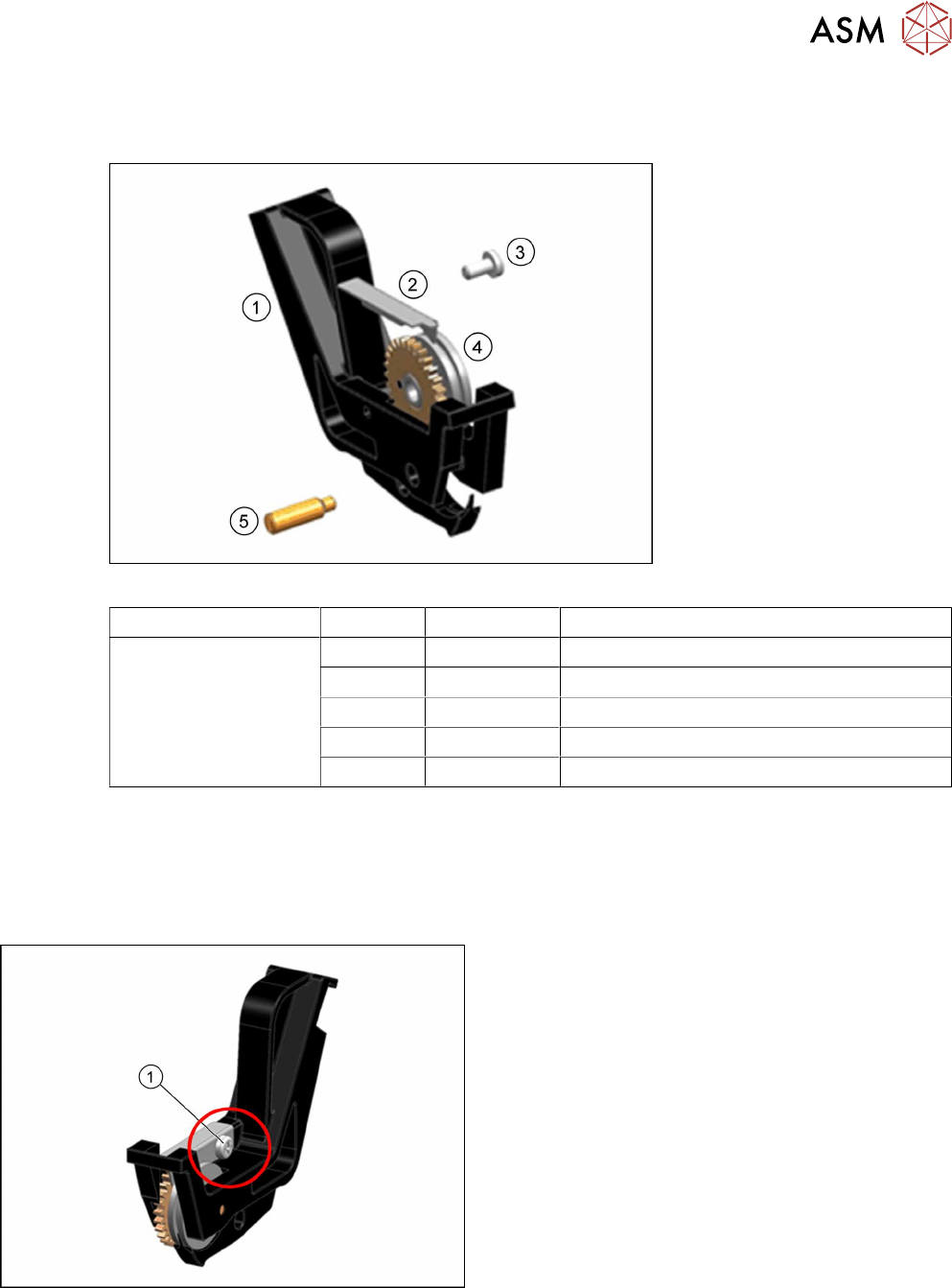

Fig.14: Individual rocker parts
Feeder module Position Item no. Designation
SmartFeeder 4mm X
SmartFeeder 4 mm Xi
1 03135354-xx Rocker for foil disposal X4Smart
2 03135459Sxx Cover plate, rocker V2 X4Smart
3 00322564-xx SN 213307-H-M2 x 4-A2
4 03156694-xx Tamp wheel assy. steel X4Smart
5 03042321-xx Bearing shaft for rocker /X8
Tools required:
●
Flat-bladed screwdriver size 1
●
TORX screwdriver T8
6.9.2.1 Removing the individual parts of the rocker
To gain access to the individual spare parts of the
rocker foil disposal assembly, first remove the cover
plate.
► Remove the screw(1), fastening the cover plate.
Use a size T8 TORX screwdriver for this.
6 Repairs to SmartFeeder 4 mm X / Xi
6.9 Rocker
62 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
► Remove the cover plate.(2)
► Remove the bearing shaft.(3)
Use a size 1 flat-bladed screwdriver for this.
► Remove the tamp wheel.(4)
The spare parts in the rocker foil disposal assembly package can now be accessed and replaced
where necessary.
6.9.2.2 Fitting the individual parts of the rocker

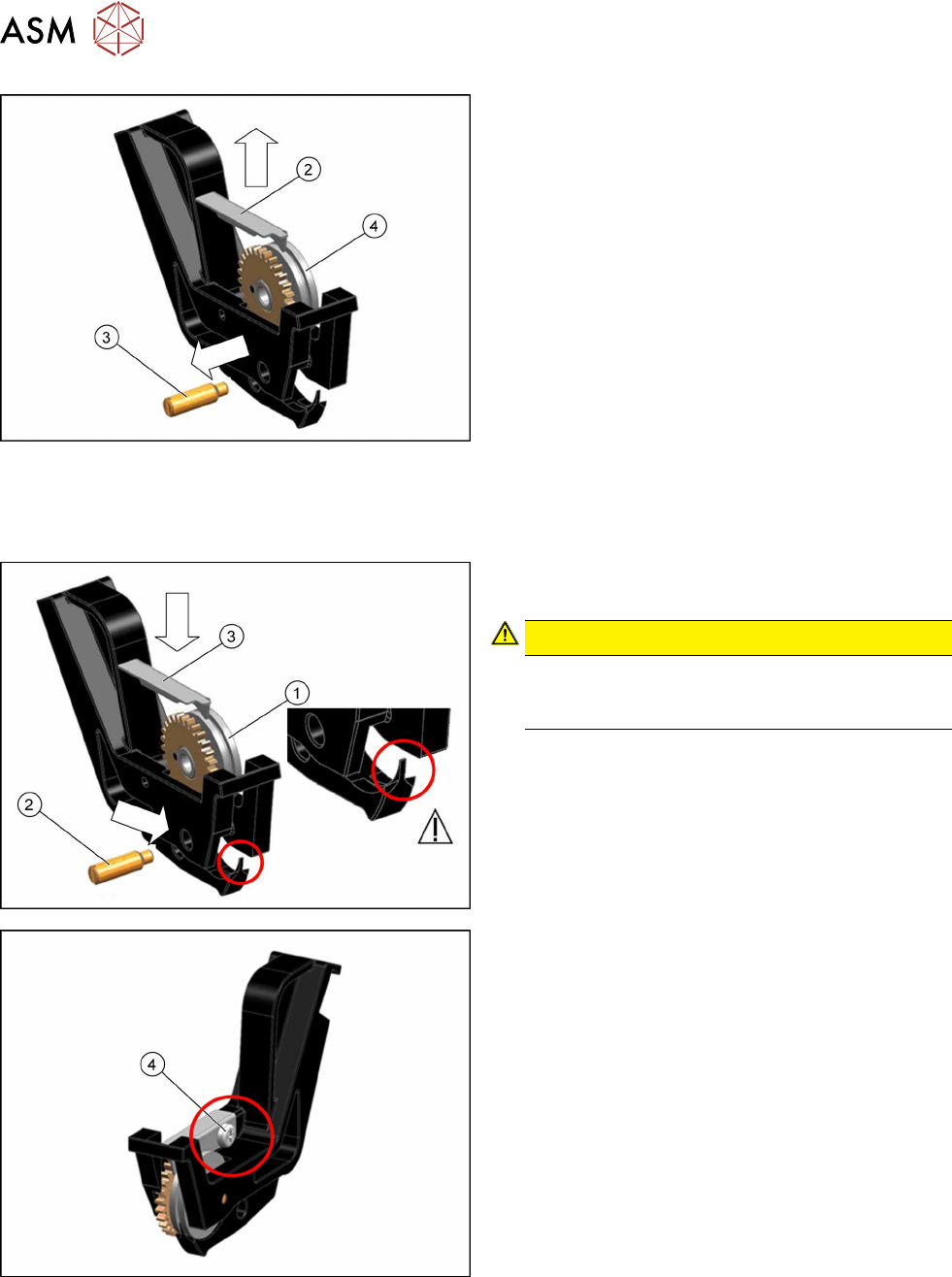

► Insert the tamp wheel into the rocker, as shown
in the diagram.(1)
CAUTION!
When inserting the tamp wheel, make sure
that the plastic tab on the rocker is not bent
or broken off!
.
► Fasten the tamp wheel with the bearing shaft.(2)
Use a size 1 flat-bladed screwdriver to help you.
► Insert the cover plate as shown.(3)
► Screw the cover plate to the rocker.(4)
Use a size T8 TORX screwdriver for this.
