6 Repairs to SmartFeeder 4 mm X / Xi 6.10 Tamp wheel / spiral gear Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 63 6.10 Tamp wheel / spiral gear Spare part required Fig.…
6 Repairs to SmartFeeder 4 mm X / Xi
6.9 Rocker
62 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
► Remove the cover plate.(2)
► Remove the bearing shaft.(3)
Use a size 1 flat-bladed screwdriver for this.
► Remove the tamp wheel.(4)
The spare parts in the rocker foil disposal assembly package can now be accessed and replaced
where necessary.
6.9.2.2 Fitting the individual parts of the rocker
► Insert the tamp wheel into the rocker, as shown
in the diagram.(1)
CAUTION!
When inserting the tamp wheel, make sure
that the plastic tab on the rocker is not bent
or broken off!
.
► Fasten the tamp wheel with the bearing shaft.(2)
Use a size 1 flat-bladed screwdriver to help you.
► Insert the cover plate as shown.(3)
► Screw the cover plate to the rocker.(4)
Use a size T8 TORX screwdriver for this.
6 Repairs to SmartFeeder 4 mm X / Xi
6.10 Tamp wheel / spiral gear
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 63

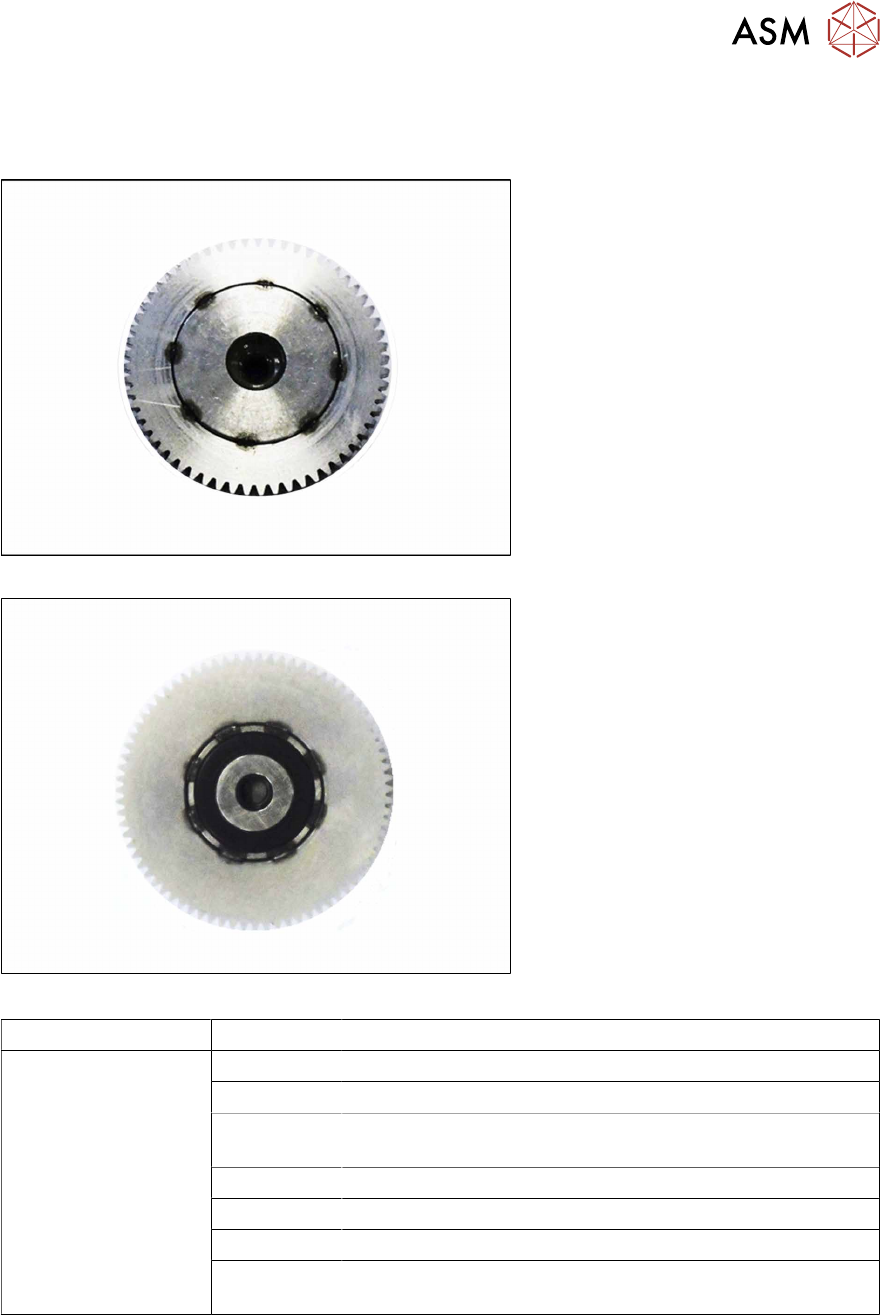

6.10 Tamp wheel / spiral gear
Spare part required
Fig.15: Tamp wheel knurled assy.
Fig.16: Spiral gear for cover foil disposal assy. X8Smart
Feeder module Item no. Designation
SmartFeeder 4mm X
SmartFeeder 4 mm Xi
03131680-xx Tamp wheel knurled assy. X4Smart V2
03103111-xx Spiral gear for cover foil disposal assy. X8Smart
03050825-xx Bearing screw
(counterpart to spiral gear)
03135899-xx Adjusting shim 6x18x0.1 2 pieces K 50 a.DIN 988 (bottom)
03043774-xx Compensating disk /d3.1 D15 t0.1 (top)
03103057-xx Bearing cap, foil drive X8Smart
03023228-xx SO 7046-2-M2.5 x 6-A2-70-H
(screws for bearing cap)
Tools required
●
Phillips screwdriver, small
●
Flat-bladed screwdriver
●
Allen key size 4
●
Tweezers
6 Repairs to SmartFeeder 4 mm X / Xi
6.10 Tamp wheel / spiral gear
64 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020

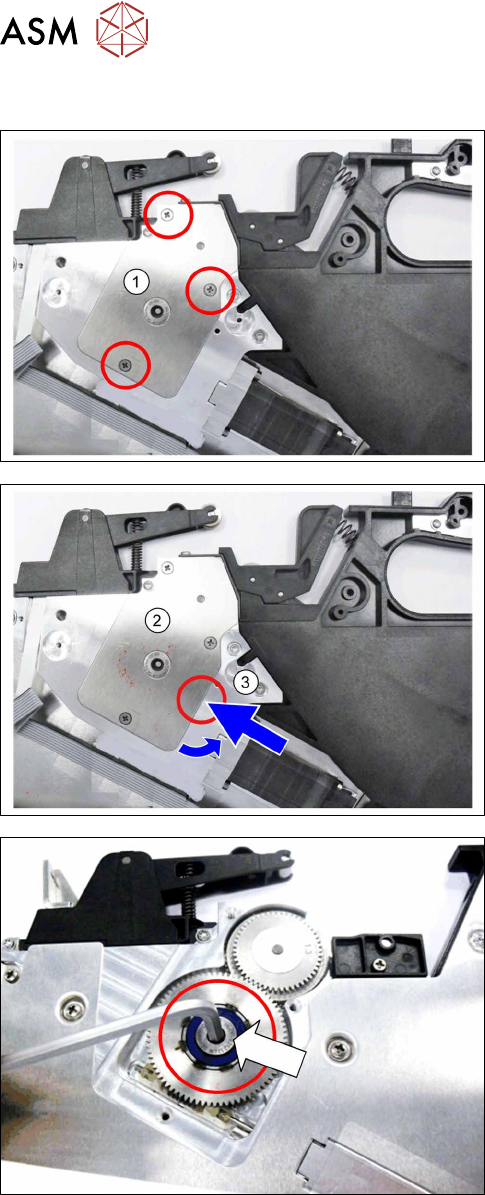

6.10.1 Removing the tamp wheel
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Remove the left side cover (see 6.3.1 "Removing
the Left Side Cover" [}30]).
► Remove the 3 Phillips screws(1) marked in the
diagram from the bearing cap for the foil drive.
► Lift the bearing cap(2) up with a pair of tweezers
or a small screwdriver(3)
and remove it.
► Remove the rocker (see 6.9.1.1 "Removing the
rocker assembly" [}59]).
► Remove the wiper (see 6.11.1 "Removing the
wiper 4 mm X" [}69]).
► Loosen the Allen screw on the spiral gear.
Use a size 4 Allen key for this.
