6 Repairs to SmartFeeder 4 mm X / Xi 6.14 Leaf spring 74 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 6.14 Leaf spring Required spare part Fig.20: Leaf spring Feeder mod…
6 Repairs to SmartFeeder 4 mm X / Xi
6.13 Foil disposal blade
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 73
6.13 Foil disposal blade
Required spare part

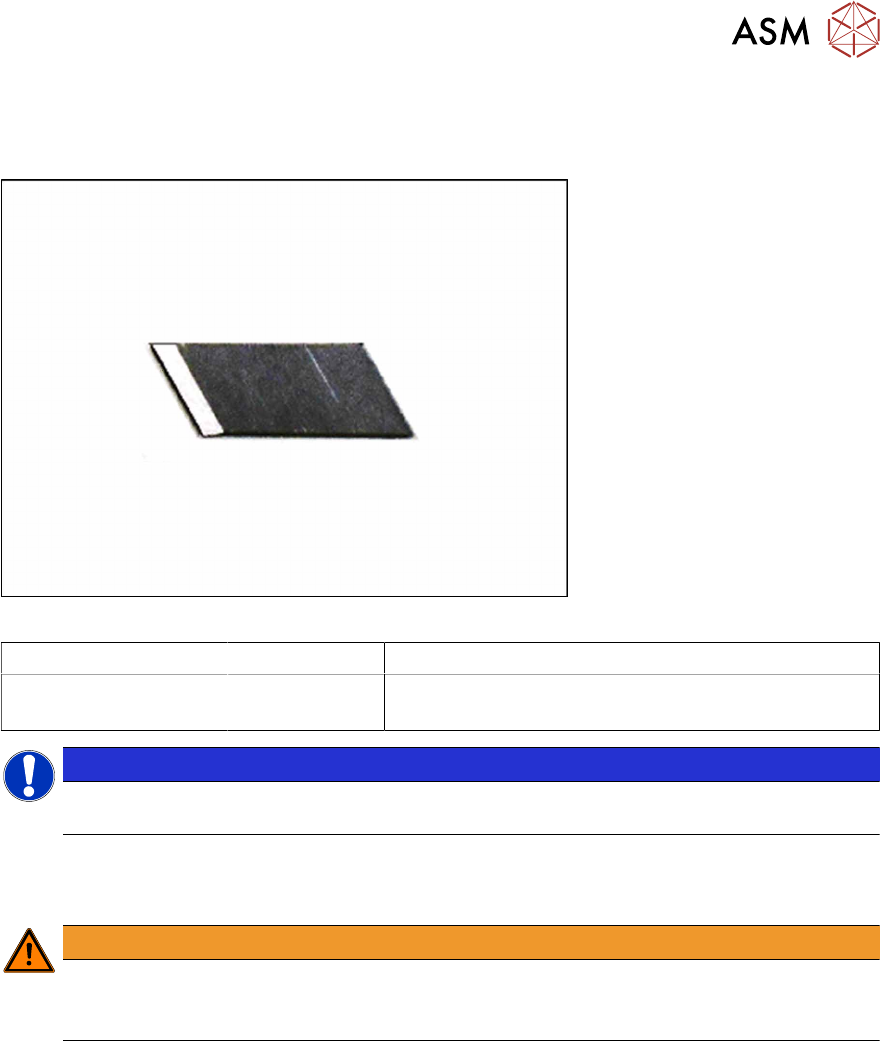

Fig.19: Blade partition wall
Feeder module Item no. Designation
SmartFeeder 4mmX
SmartFeeder 4 mm Xi
00341370Sxx Blade partition wall
NOTICE
Pay attention when preparing the individual blades. Individual blades must be broken at the
cutter edge. Ensure all safety precautions are observed.
Tools required
●
TORX screwdriver 0.6Nm, size T8
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
6.13.1 Removing the Blade Partition Wall
► Place the feeder on a stable, level and clean surface.
► Open the flap.
► Loosen the screw fastening the blade and remove the old blade.
6.13.2 Fitting the Blade Partition Wall
► Place the new blade in position and tighten the screw.
6 Repairs to SmartFeeder 4 mm X / Xi
6.14 Leaf spring
74 Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020
6.14 Leaf spring
Required spare part

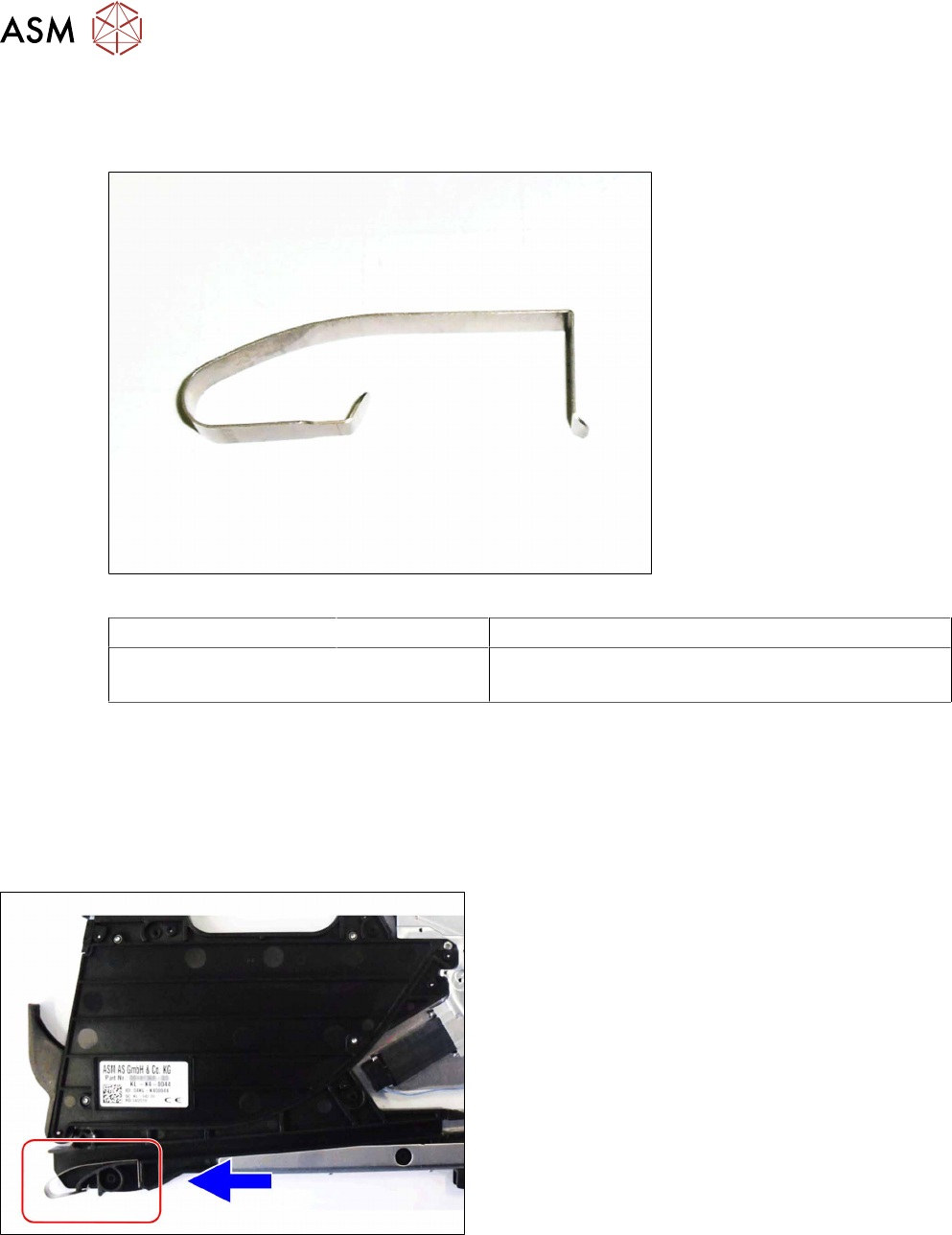

Fig.20: Leaf spring
Feeder module Item no. Designation
SmartFeeder 4mmX
SmartFeeder 4 mm Xi
03071618-xx Leaf spring tape infeed /X2x8 PT V1
Tools required
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
●
Flat or universal pliers
6.14.1 Replacing the leaf spring
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Remove the right side cover (see 6.3.3 "Remov-
ing the Right Side Cover" [}31]).
► Use a pair of pliers to pull the leaf spring up and
out of the feeder module.
► Fit the new leaf spring into the feeder module as
shown.
► Make sure that the end of the leaf spring can
move freely downwards.
► Fasten the right side cover (see6.3.4 "Fitting the
Right Side Cover" [}32] ).
6 Repairs to SmartFeeder 4 mm X / Xi
6.15 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 8 mm X / Xi SIPLACE SmartFeeder 2 x 8 mm X / Xi 11/2020 75
6.15 Handle with control panel
6.15.1 Handle assembly
The handle assembly can not be replaced and is not available as a spare part.
6.15.2 Replacing the control panel
Required spare part

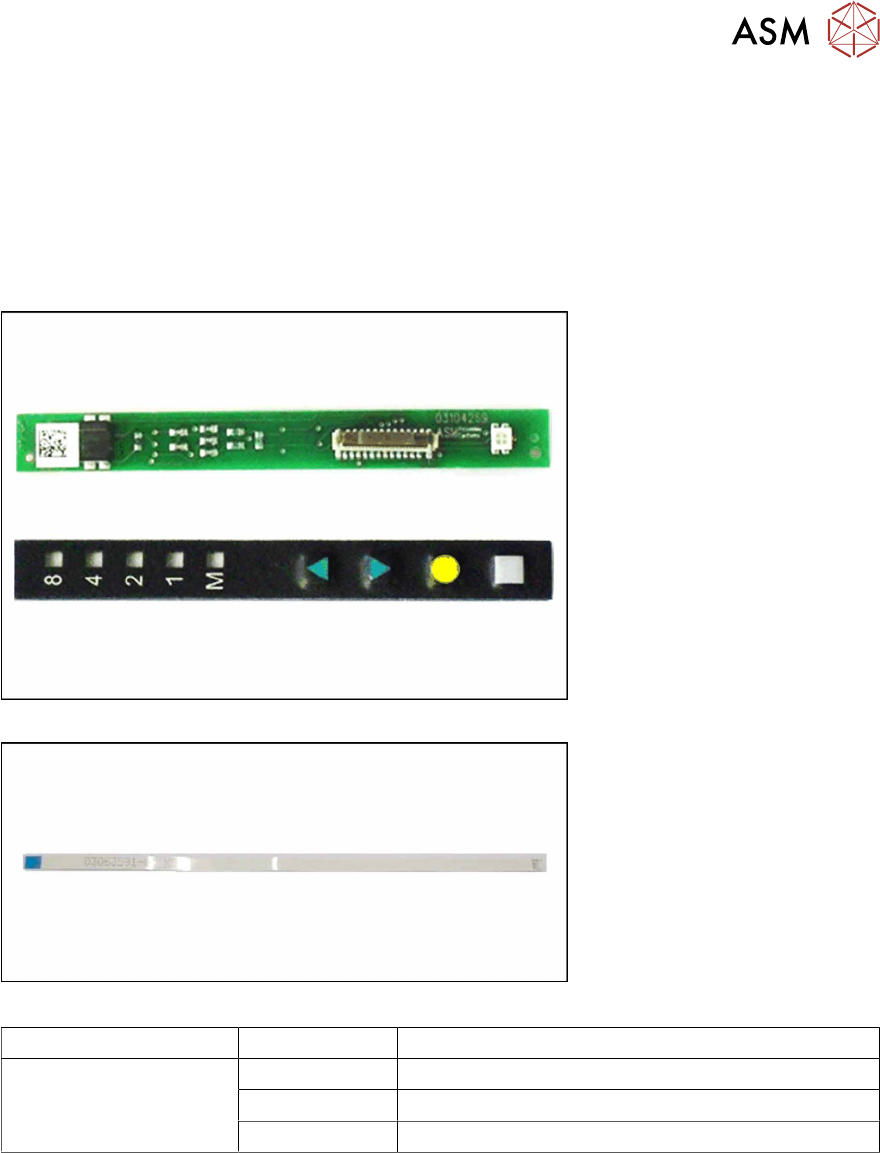

Fig.21: Board assy. control panel (top), control panel assy. (bottom)
Fig.22: Cable control panel
Feeder module Item no. Designation
SmartFeeder 4mm X
SmartFeeder 4 mm Xi
03104269-xx Board assy. control panel X8Smart
03102428 -xx Control panel assy. X8Smart
03063592-xx Cable control panel X2x8
Tools required
●
TORX screwdriver size T8, 0.6Nm
●
Tweezers or small screwdriver
