35 Technical Data Dimensions and Set-up Conditions Placement System’s Center of Gravity
34
Technical Data
Dimensions and Set-up Conditions
Length of the basic machine 1572 mm
Width of the basic machine
with component changeover tables
including monitors
with keyboards
2285 mm
2597 mm
2555 mm
2574 mm
Height of the machine
with indicator lamp
with folded-up protective covers
max. 1812 mm
1911 mm (PCB conveyor height 830 mm)
1981 mm (PCB conveyor height 900 mm)
2011 mm (PCB conveyor height 930 mm)
2034 mm (PCB conveyor height 950 mm)
Machine ground clearance 107 mm (PCB conveyor height 830 mm)
177 mm (PCB conveyor height 900 mm)
207 mm (PCB conveyor height 930 mm)
230 mm (PCB conveyor height 950 mm)
Weight
Basic machine
Basic machine with 2 CO changeover tables
Full configuration with feeder modules
2192 kg
2364 kg
2436 kg
Footprint 4.21 m²
Load per unit area
a
a) The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine. Further data available on request.
4.72 kN/m²
Number of machine feet 4
Maximum noise emissions 74 dB (A)
Room temperature between 15 °C and 35 °C
Atmospheric humidity 30 to 75% (no higher than 45% on aver-
age to prevent any possibility of conden-
sation on the machine)
35
Technical Data
Dimensions and Set-up Conditions

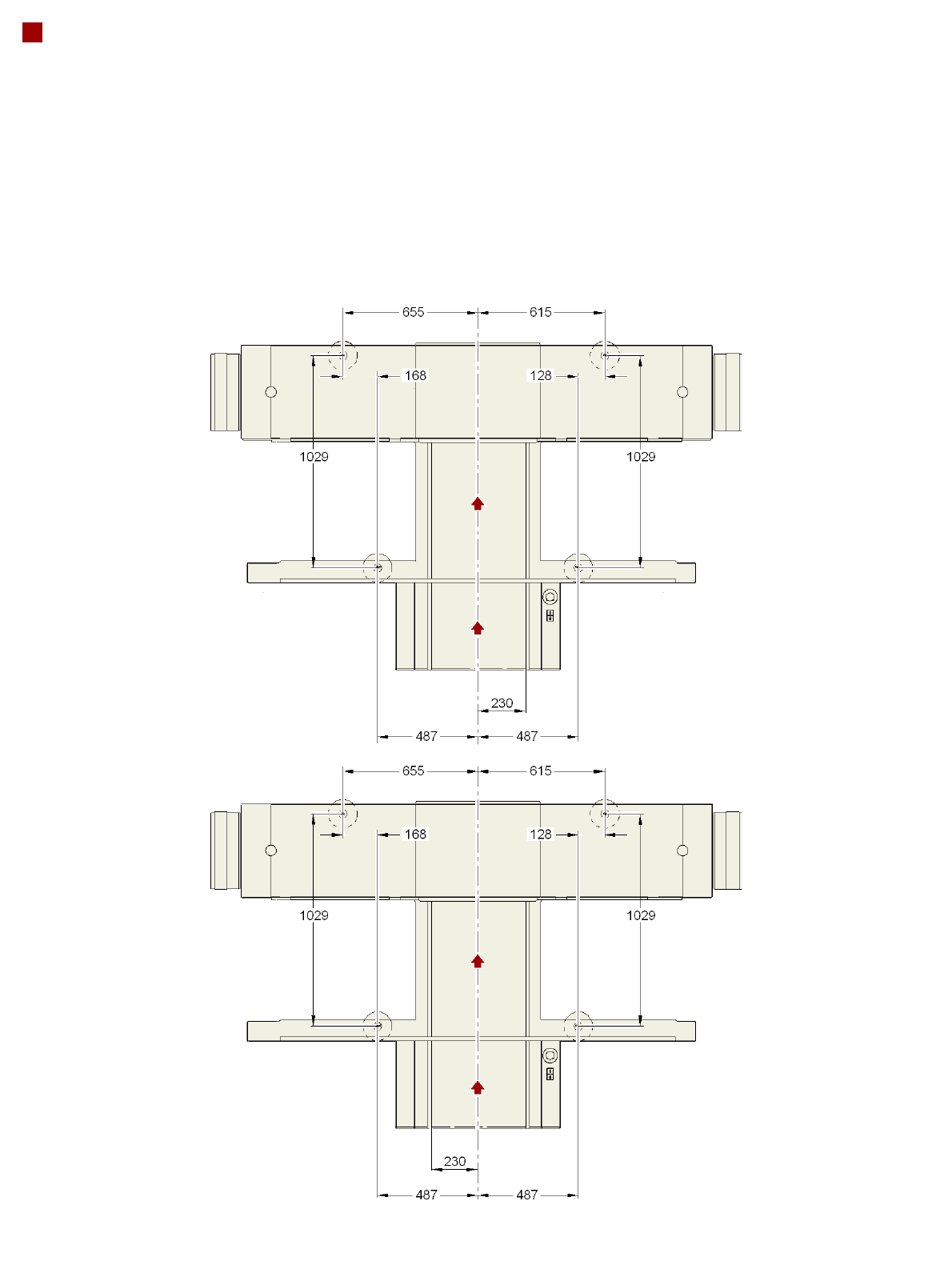

Placement System’s Center of Gravity
36
Technical Data
Spacing Distances for the Single Conveyor
Stationary conveyor
side left
Stationary conveyor
side right
