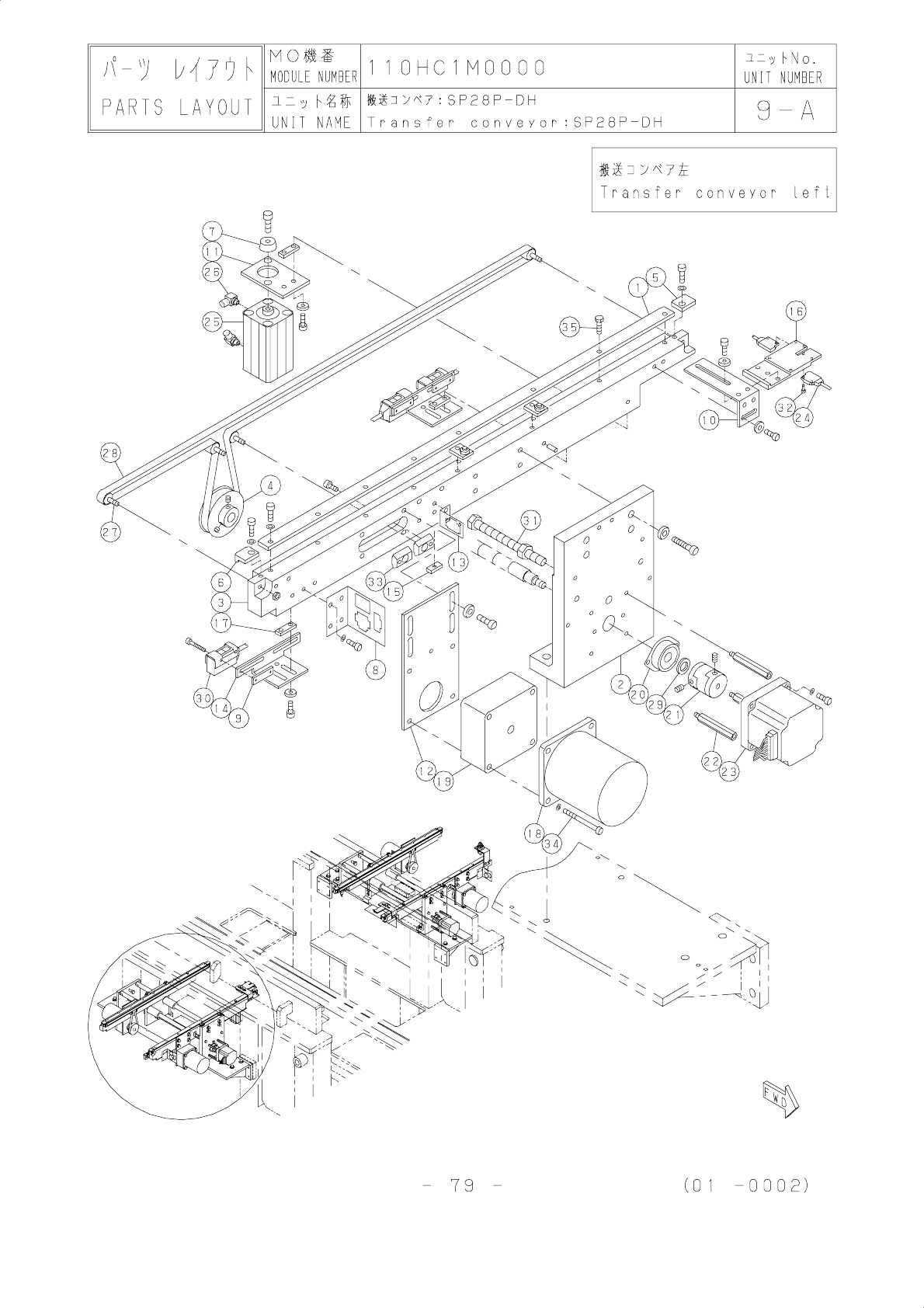

SP28P-DH - 第101页

1 KXFB022AA00 GUIDE 4 2 KXFB022CA00 BRACKET 2 3 KXFB022EA00 FRAME 2 4 KXFB022GA00 PULLEY 4 5 KXFB01J2A00 GUIDE 4 6 KXFB01J3A00 GUIDE 4 7 KXFB001HA00 STOPPER 1 8 KXFB00J8A00 BRACKET 2 9 KXFB001PA00 PW004A0 5 10 KXFB022NA0…

1 KXFB022AA00 GUIDE 4

2 KXFB022CA00 BRACKET 2

3 KXFB022EA00 FRAME 2

4 KXFB022GA00 PULLEY 4

5 KXFB01J2A00 GUIDE 4

6 KXFB01J3A00 GUIDE 4

7 KXFB001HA00 STOPPER 1

8 KXFB00J8A00 BRACKET 2

9 KXFB001PA00 PW004A0 5

10 KXFB022NA02 BRACKET 2

11 KXFB022PA00 BRACKET 1

12 KXFB001TA00 BRACKET 4

13 KXFB002MA00 BRACKET 4

14 KXFB022RA00 BRACKET 3

15 KXFB0020A00 NUT 4

16 KXFB0ABWA00 PLATE 1

17 KXFB01UAA00 NUT 4

18 KXF02VXAA00 MOTOR M7RA15G4L 4

19 KXF02VVAA00 GEAR-HEAD M7GA5B 4

20 KXF03G0AA00 BEARING SFB38-10 4

21 KXF08BXAA00 COUPLING MOL-25-φ6.35×φ6.35 2

22 KXF0A6ZAA00 SPACER BSF-445 8

23 KXF07R6AA00 MOTOR KH56KM2-651 2

24 KXF09TDAA00 SENSOR EX-14B 3 A

25 KXF0B61AA00 CYLINDER CQSBS20-40DC 1

26 KXF02T9AA00 ELBOW M-5HL-4 3

27 110HC181201 CAM-FOLLOWER CF4-22VBRE01(with nut) 16 A

28 110HC181222 BELT XVT-952-1400L(DA) 5 A

29 KXF05ULAA00 WASHER MSRB10-2.0 2

30 110HC181270 SENSOR EX-42+MS-EX-KM 5 A

番号

ＭＯ機番

ユニット名称

搬送ｺﾝﾍﾞｱ:SP28P-DH

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Transfer conveyor:SP28P-DH

PART LIST

MODULE NUMBER

パーツリスト

110HC1M0000

9-A

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −80 02 0002−（）
