SP28P-DH - 第125页

1 KXFB024AA00 HOUSING 1 2 KXFB00LMA02 MANIFOLD 1 3 KXFB024HA01 BRACKET 1 4 KXFB024JA00 BRACKET 1 5 KXFB00C5A01 BRACKET 1 6 KXFB001PA00 PW004A0 2 7 KXF0A7FAA00 PUMP PB1011-01-X8 1 8 KXF02BPAA00 JOINT KQL04-01S 2 9 1956C28…

1 KXFB024AA00 HOUSING 1

2 KXFB00LMA02 MANIFOLD 1

3 KXFB024HA01 BRACKET 1

4 KXFB024JA00 BRACKET 1

5 KXFB00C5A01 BRACKET 1

6 KXFB001PA00 PW004A0 2

7 KXF0A7FAA00 PUMP PB1011-01-X8 1

8 KXF02BPAA00 JOINT KQL04-01S 2

9 1956C282070 TANK MG5-355-02(DA) 1

10 KXF07RJAA00 JOINT L4N6×4-PT1/8 3

11 1956C282100 TUBE PN4-6×4(milk-white)(1500mm) 1

12 KXF07ZFAA00 C-RING C-type fixing ring for wheel nominal 32 1

13 1956C282121 TUBE PN4-10×6.5(milk-white)(100mm) 1

14 1956C282130 FILTER Y3/8B(mesh 100) 1

15 KXF0DXLEA00 BUSH VB-3/8×1/8(SCS 13A) 1

16 1956C283011 HOSE-BAND SY 32 2

17 1956C283020 SOCKET Socket 1 1/4(DA) 6

18 KXF07ENAA00 NIPPLE Volute nipple PT 3/4 2

19 KXF057FAA00 BUSH Bush 1×3/4 1

20 KXF0860AA00 HOSE Duct EE-type φ50×7m 1

21 KXF05QVAA00 HOSE-BAND ABA band 19∼28 2

22 KXF00TLAA00 FILTER AF4000-005 1 A

23 KXF09ULAA00 VALVE ADK11-25A-B3ABS-DC24V 2

24 KXF04ZPAA00 ELBOW Elbow 1 1/4 1

25 KXF060GAA00 HOSE-BAND S-60 6

26 KXF055WAA00 NIPPLE Nipple 1 1/4 3

27 KXF07EKAA00 TEES Cheese 1 1/4 1

28 KXF0564AA00 NIPPLE Reducing nipple 2×1 1/4 2

29 KXF07G6AA00 NIPPLE Reducing nipple 1×1 1/4 3

30 KXF05HJAA00 JOINT KQH08-02S 3

番号

ＭＯ機番

ユニット名称

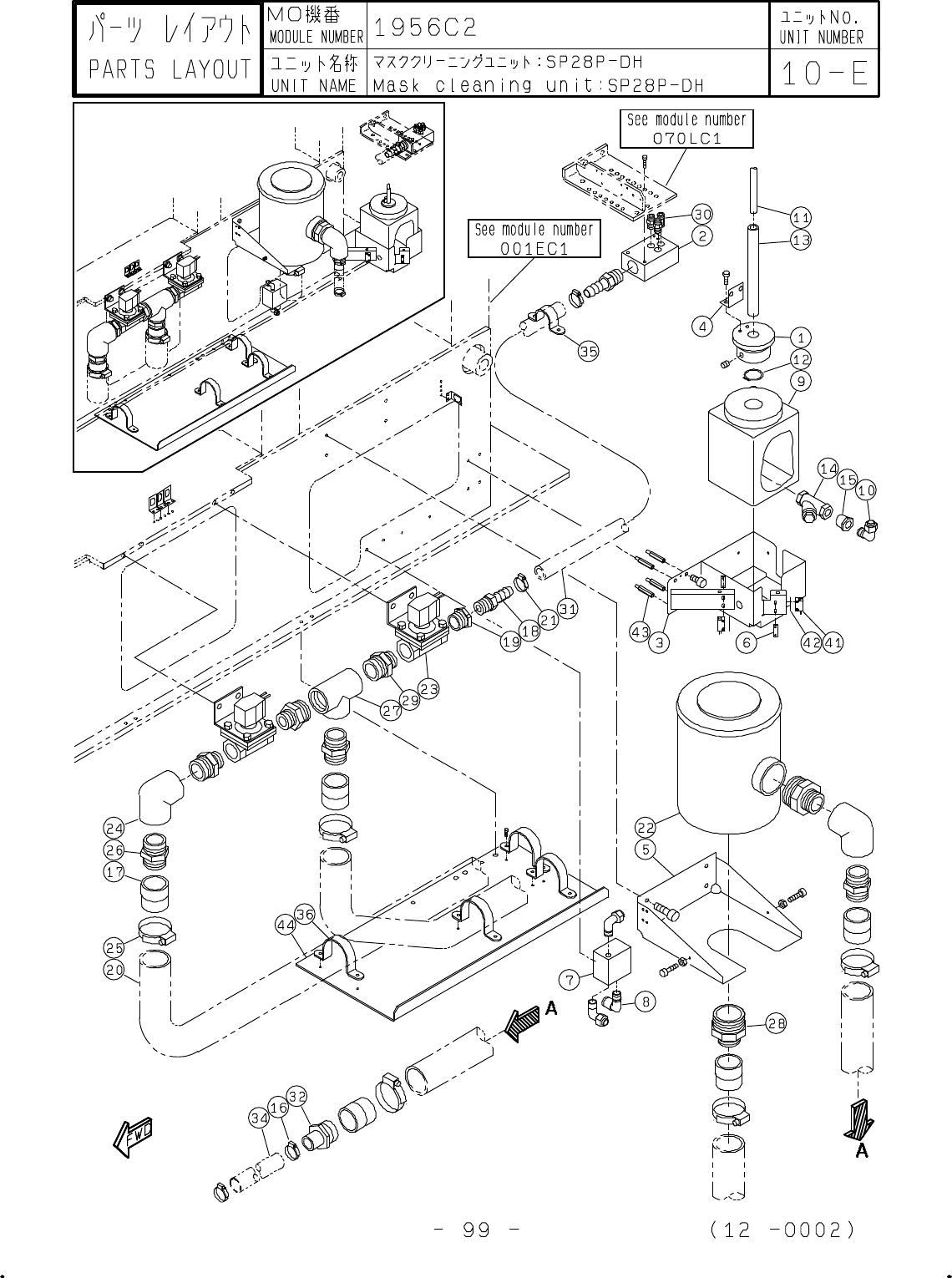

ﾏｽｸｸﾘｰﾆﾝｸﾞﾕﾆｯﾄ:SP28P-DH

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Mask cleaning unit:SP28P-DH

PART LIST

MODULE NUMBER

パーツリスト

1956C2M0000

10-E

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −100 13 0003−（）
