SP28P-DH - 第225页
1 KXFB02A2A00 PLATE 1 2 3 4 5 6 7 KXFB02ARA00 BRACKET 1 8 KXFB02AHA01 COVER 1 9 KXFB02AJA00 COVER 1 10 KXFB00JHA00 COVER 1 11 KXFB02AMA00 BRACKET 1 12 KXFB02APA00 BRACKET 1 13 KXFB02AQA00 BRACKET 1 14 15 KXFB00JJA00 BRAC…
1 KXFB02A2A00 PLATE 1
2
3
4
5
6
7 KXFB02ARA00 BRACKET 1
8 KXFB02AHA01 COVER 1
9 KXFB02AJA00 COVER 1
10 KXFB00JHA00 COVER 1
11 KXFB02AMA00 BRACKET 1
12 KXFB02APA00 BRACKET 1
13 KXFB02AQA00 BRACKET 1
14
15 KXFB00JJA00 BRACKET 1
16 KXFB002MA00 BRACKET 4
17
18
19
20
21
22 1957C181530 SCREW Cross recessed truss head screw M3×5L(black) 4
23 1957C181540 REGULATOR EV2500-108-C11E2B4-FL280525(DA) 1
24 KXF02ALAA00 JOINT KQE06-01 1
25 KXF09YZAA00 GAUGE G46-7-01 1
26 KXF02DNAA00 JOINT KQU06-00 2
27
28 KXF0A7VAA00 SILENCER SL-M5 2
29 KXF0DZASA00 JOINT GWJS6-M5 2
30 KXF02TLAA00 TEES M-5UT 1
NO
番号
ＭＯ機番
ユニット名称
ｶｰﾄﾘｯｼﾞﾍｯﾄﾞ対応:SP28P-DH
UNIT NAME
PART NUMBER
品番 部品名 型式 数量 ﾗﾝｸ 備考

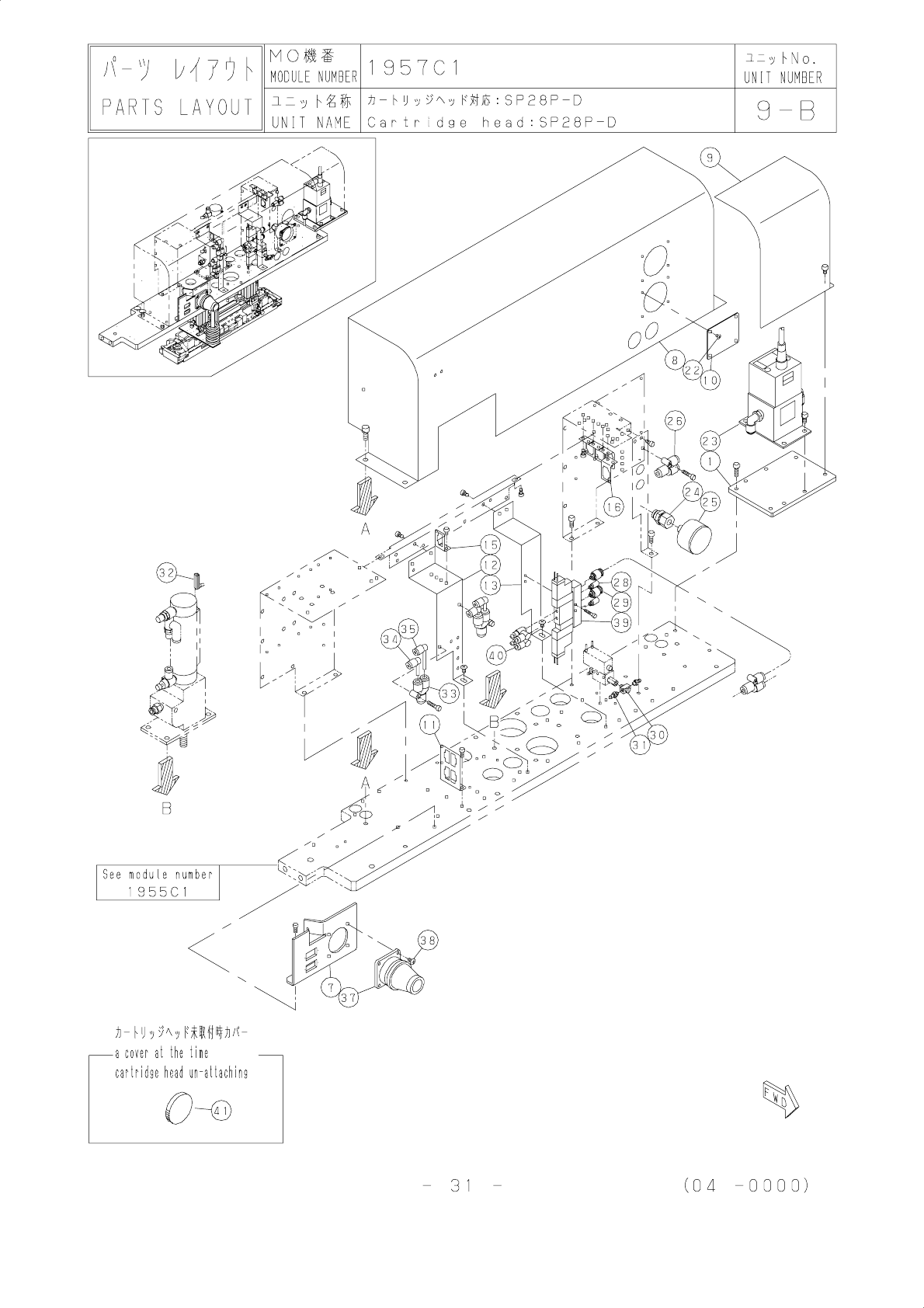

Cartridge Head support: SP28P-DH
PART LIST
MODULE NUMBER
パーツリスト
1957C1M0000
9-B
UNIT NUMBER
ユニットＮｏ.
PART NAME TYPE Q'TY RANK REMARKS
− −32 05 0001−（ ）
