1 KXFB026NA00 BRACKET 1 2 KXFB026PA00 BRACKET 1 3 KXFB026QA00 COVER 1 4 KXFB00MBA00 BRACKET 2 5 KXFB0056A00 BRACKET 2 6 KXFB026MA00 COVER 1 7 KXFB02DAA00 BRACKET 2 8 150YC181010 LAMP-STAND SB411W 2 9 KXFP6H4NA00 LAMP LL0…

1 KXFB026NA00 BRACKET 1

2 KXFB026PA00 BRACKET 1

3 KXFB026QA00 COVER 1

4 KXFB00MBA00 BRACKET 2

5 KXFB0056A00 BRACKET 2

6 KXFB026MA00 COVER 1

7 KXFB02DAA00 BRACKET 2

8 150YC181010 LAMP-STAND SB411W 2

9 KXFP6H4NA00 LAMP LL004708 2 A

10 KXF09Q6AA00 GROMMET C-30-NG-79-M 2

11 150YC185130 BOLT Hexagon socket head cap screw M5×15L-10.9-MFZnⅡ(DA) 2

番号

ＭＯ機番

ユニット名称

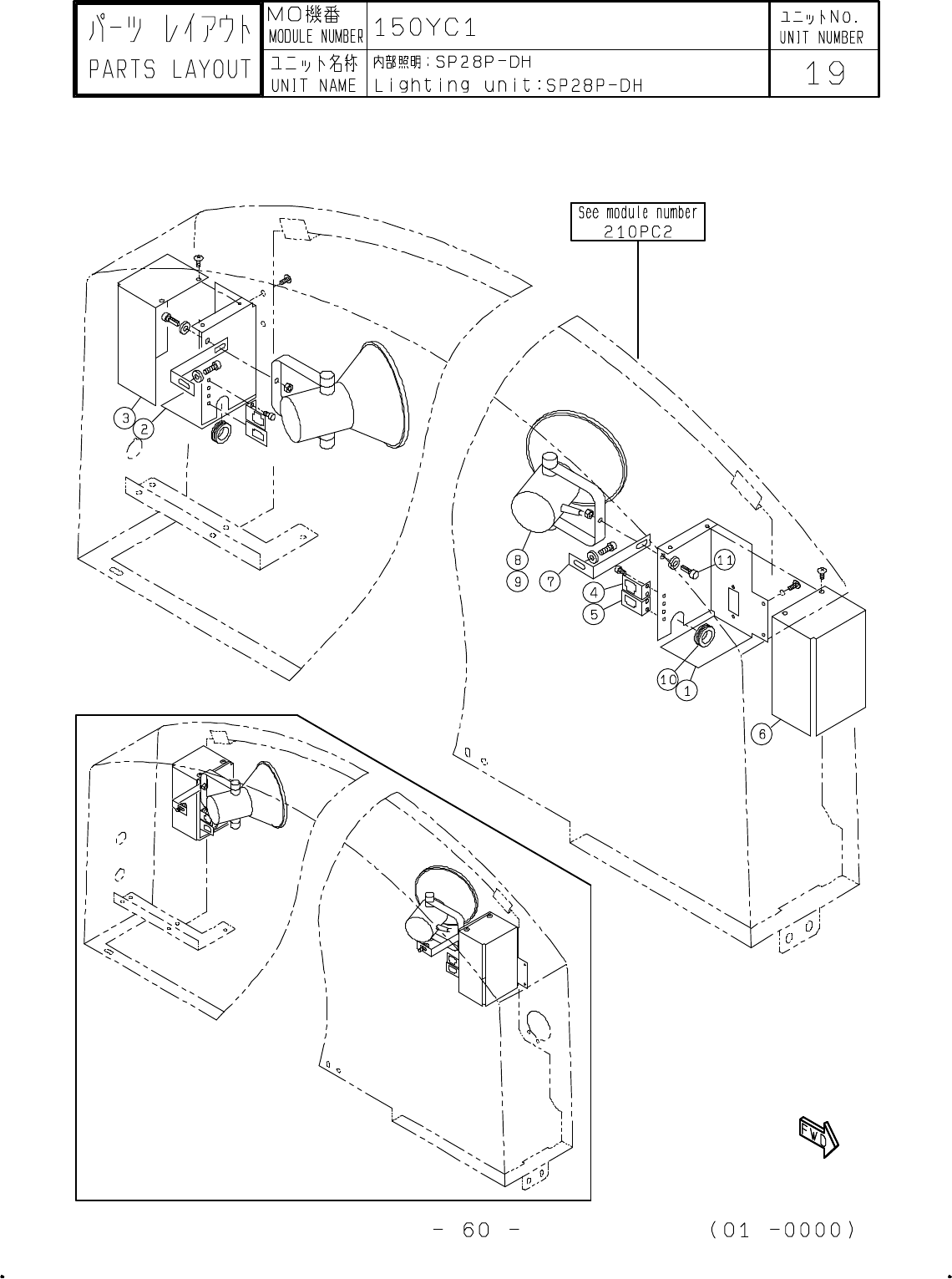

内部照明:SP28P-DH

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Lighting unit:SP28P-DH

PART LIST

MODULE NUMBER

パーツリスト

150YC1M0000

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −61 02 0001−（）
