1 150TC112011 SLEEVE 1

2 150TC112022 BLOCK 1

3 150TC112031 PLATE 1

4 150TC112041 PLATE 1

5 150TC112050 BLOCK 1

6 150TC162011 BRACKET 1

7 150TC162020 BRACKET 2

8 KXF02AXAA00 JOINT KQH06-00 1

9 KXF09RVAA00 COUPLER MC-10PM 1

10 KXF02WSAA00 COUPLER MC-04SH 1

11 150TC182030 JOINT M-1/4×1/8 SUS 1

12 KXF08JEAA00 CAP ACO1 Aluminum cap(17705) 1

13 KXF08WJAA00 CARTRIDGE PC170(Hard-type) 2

14 KXF08WKAA00 PLUNGER PC01 2

15 KXF08WLAA00 PLUG PC03 2

16 150TC182081 HOLDER MH170(17728)(DA) 1

17 KXF08JDAA00 SENSOR CX-21 1 A

18 KXF077WAA00 BALL-PLUNGER BPJ6 2

19 KXF08WMAA00 NOZZLE LOP-32-63 5 A

20 KXF00YAAA00 SPEED-CONTROLLER AS1001F-04 1

21 KXF02CQAA00 JOINT KQP-04 1

22 150TC182150 VALVE 4GA119-C4-A2NH-3 1

23 KXF02SZAA00 ELBOW M-5ALU-4 1

24

25

26

27

28

29

30

NO

番号

ＭＯ機番

ユニット名称

ﾊﾝﾀﾞ自動供給U(ﾕﾆﾊﾞｰｻﾙ):SP28P-DH

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Cream solder supply unit(Universal):SP28

PART LIST

MODULE NUMBER

パーツリスト

150TC1M0000

29-A

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −81 02 0000−（）

1 150TC161011 COVER 1

2 150TC161022 BRACKET 1

3 150TC161032 BRACKET 1

4 150TC161041 GUIDE 1

5 150TC161051 GUIDE 1

6 150TC161061 BRACKET 1

7 150TC161071 BRACKET 1

8 150TC161140 BRACKET 1

9 150TC161150 BRACKET 1

10 KXF00X6AA00 REGULATOR AR1000-M5B-X507 1

11 KXF09W1AA00 AMP PS-T1 1 A

12 KXF08JLAA00 SENSOR PS-202 1 A

13 KXF08JMAA00 BOLT Wing bolt M4×12L,1-type 2

14 KXF02T0AA00 ELBOW M-5ALU-6 2

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

NO

番号

ＭＯ機番

ユニット名称

ﾊﾝﾀﾞ自動供給U(ﾕﾆﾊﾞｰｻﾙ):SP28P-DH

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

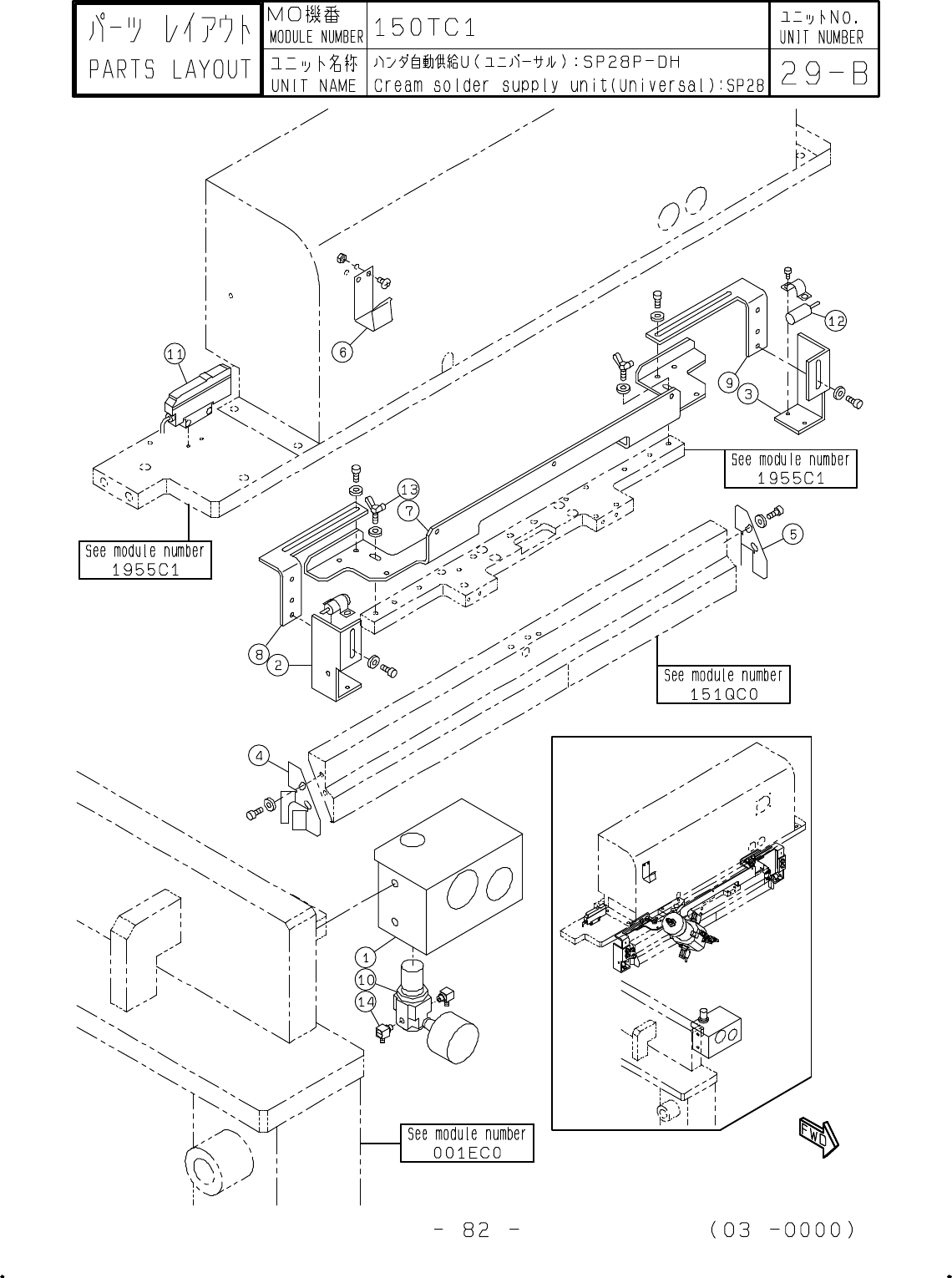

Cream solder supply unit(Universal):SP28

PART LIST

MODULE NUMBER

パーツリスト

150TC1M0000

29-B

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −83 04 0000−（）
