1 210PC261216 COVER 1

2 210PC261432 COVER 1

3 210PC262013 COVER 1

4 210PC262053 COVER 1

5 210PC262073 COVER 1

6 210PC262085 COVER 1

7 210PC262092 COVER 1

8 KXF07Z8AA00 BOLT Hexagon socket countersunk head bolt M5×12L 6

9 210PC281340 CAP CP-328-B-4-ivory(DA) 22

10 210PC281350 CAP CP-328-B-5-ivory(DA) 6

12 KXF04LJAA00 BOLT Hexagon socket countersunk head bolt M4×12L 18

番号

ＭＯ機番

ユニット名称

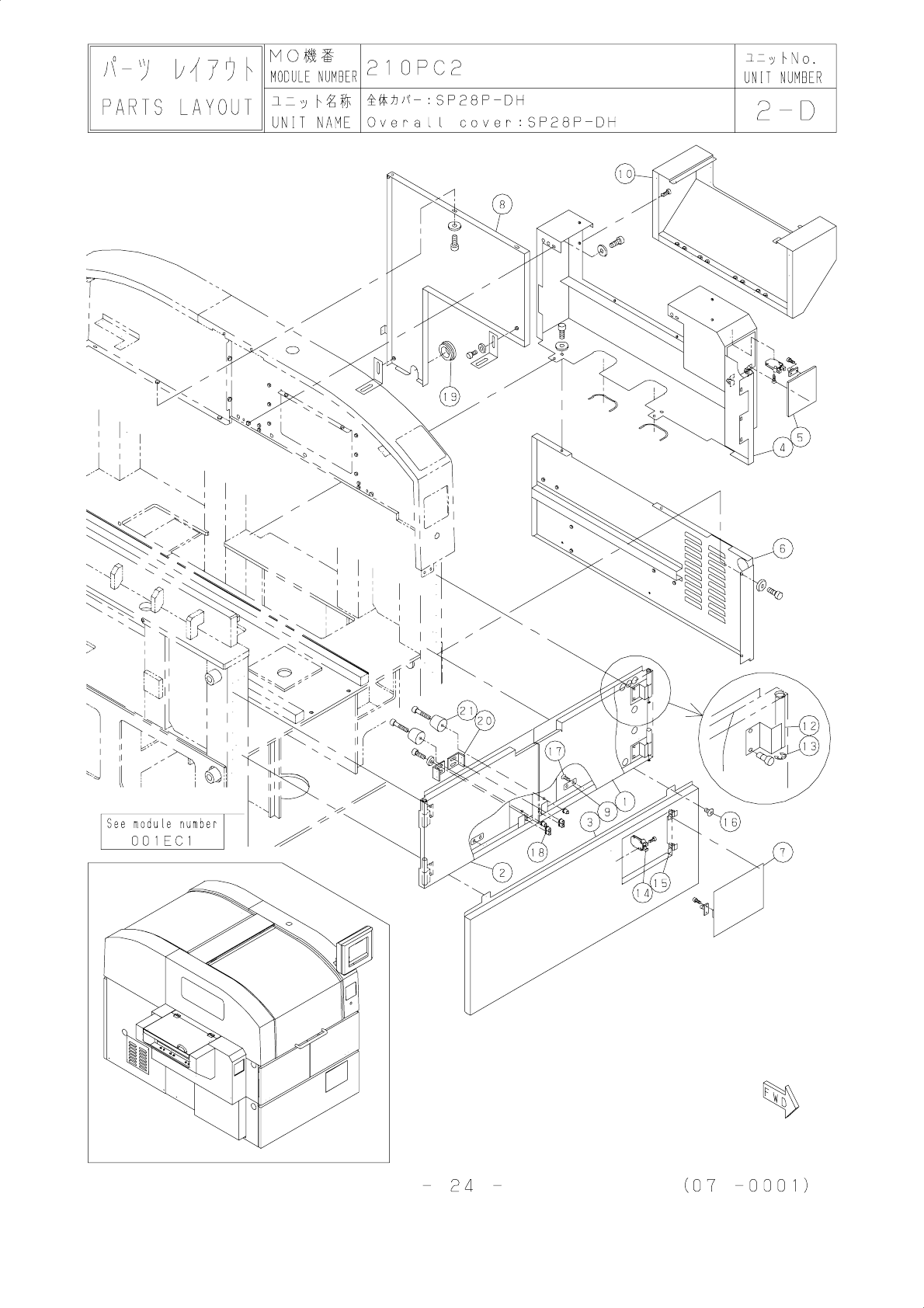

全体ｶﾊﾞｰ:SP28P-DH

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Overall cover:SP28P-DH

PART LIST

MODULE NUMBER

パーツリスト

210PC2M0000

2-C

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −23 06 0001−（）

1 KXFB01TWA01 COVER 1

2 KXFB01TYA00 COVER 1

3 KXFB01TZA01 COVER 1

4 KXFB01U1A00 COVER 1

5 KXFB002SB00 COVER 1

6 KXFB01U2A00 COVER 1

7 KXFB002UA00 COVER 1

8 KXFB01U6A00 COVER 1

9 KXFB0033A01 PLATE 2

10 KXFB01UEA01 COVER 1

12 210PC281100 HINGE BA-50-3(DA) 4

13 KXF01XDAA00 E-RING E-type fixing ring nominal 5 4

14 KXF096XAA00 CATCH C-540 2

15 KXF013PAA00 HINGE B-508-16 4

16 KXF04ETAA00 SCREW Cross recessed truss head screw M4×8L 14

17 KXF04LFAA00 BOLT Hexagon socket countersunk head bolt M3×6L 4

18 KXF0B69AA00 NUT SFH535SF 6

19 KXF0A7KAA00 GROMMET C-30-SG-36A 1

20 KXFB027AA00 BRACKET 2

21 KXF0B68AA00 RUBBER-LEG C-30-RK-3225 2
