1 180GC112130 COLLAR 4

2 180GC112140 STOPPER 2

3 180GC112150 STOPPER 2

4 180GC113060 PLATE 1

5 180GC113070 TABLE 1

6 180GC114010 PLATE 4

7 180GC115060 BOLT 1

8 180GC115070 BOLT 1

9 180GC115080 COLLAR 2

10 180GC161173 BRACKET 1

11 180GC161183 COVER 1

13 180GC164143 DOG 1

14 180GC164190 PLATE 4

15 KXF085VAA00 SPACER BSF-460 2

16 180GC182012 BALL-SCREW 14MF3S2-122C3(DA) 3

17 KXF0A76AA00 COLLAR NCLB10-16-12.0 4

18 180GC182080 COLLAR CLUH30-16-9 4

19 KXF00KSAA00 BEARING 6200ZZ 18

20 180GC183072 BALL-SCREW 14MF3S2-166C3(DA) 1

21 KXF09S6AA00 LM-BEARING SMK20GWUU 4

22 180GC184081 SHAFT SF20×242(DA) 4

23 180GC184221 T-BELT 015-AT5-0383E-F 1

24 KXF09TPAA00 WASHER SW25 1

25 180GC184250 BOLT Hexagon socket head cap screw M8×35L(DA) 4

26 KXF05Z5AA00 WASHER MSRB8-1.0 4

27 KXF09YYAA00 BEARING 6203ZZ 4

28 KXF07UKAA00 SPACER BSF-480 2

29 180GC184410 BOLT Hexagon socket head cap screw M10×65L 1

番号

ＭＯ機番

ユニット名称

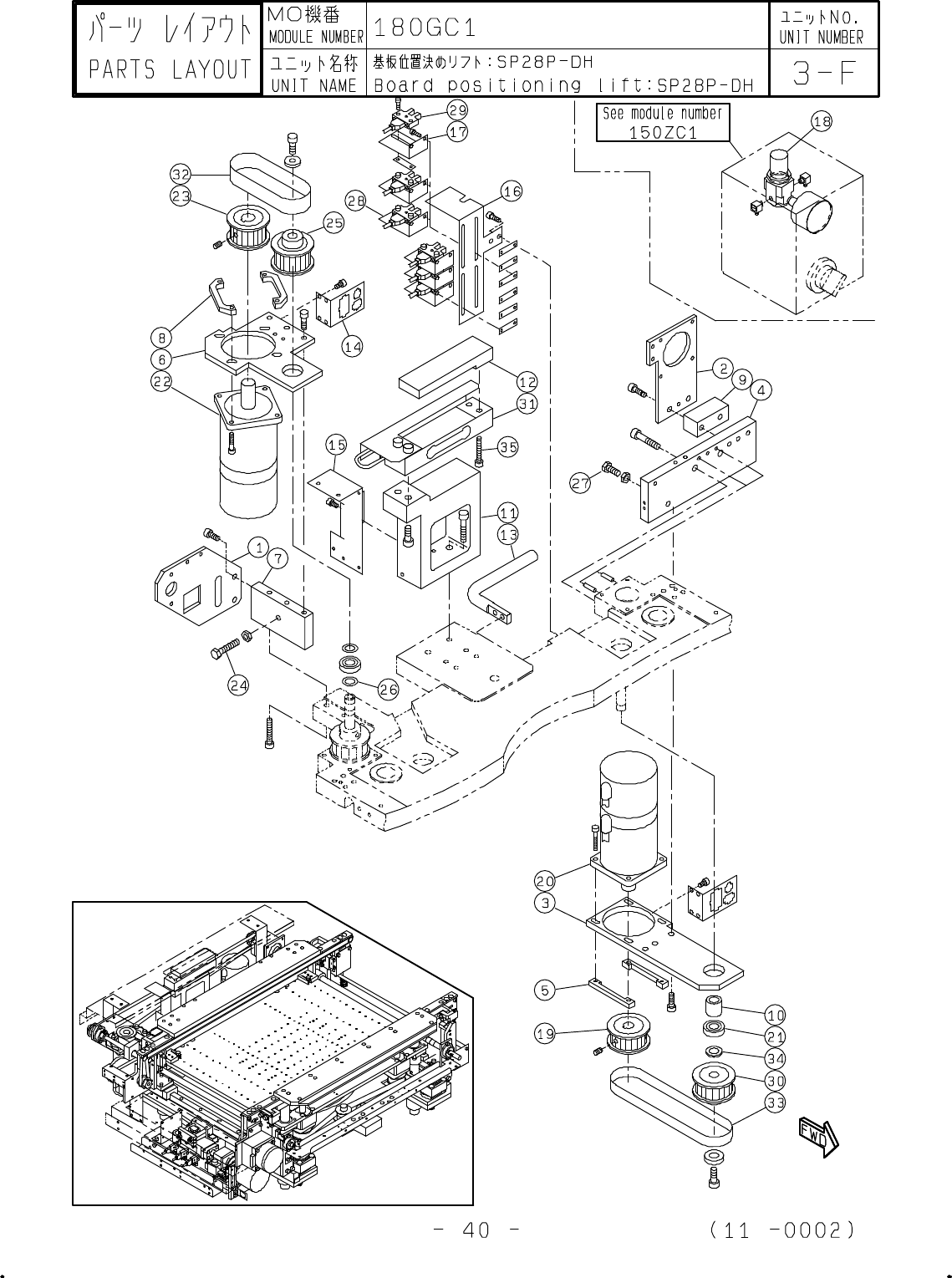

基板位置決めﾘﾌﾄ:SP28P-DH

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Board positioning lift:SP28P-DH

PART LIST

MODULE NUMBER

パーツリスト

180GC1M0000

3-E

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −39 10 0001−（）

1 180GC111022 PLATE 1

2 180GC113083 PLATE 1

3 180GC113141 PLATE 1

4 180GC113152 PLATE 1

5 180GC113160 NUT 2

6 180GC113171 PLATE 1

7 180GC113200 PLATE 1

8 180GC113240 NUT 2

9 180GC113271 SPACER 1

10 180GC114110 COLLAR 1

11 180GC115011 BRACKET 1

12 180GC115021 PLATE 1

13 180GC115040 KNOB 1

14 180GC161010 BRACKET 2

15 180GC161211 BRACKET 1

16 180GC164153 BRACKET 1

17 180GC164181 BRACKET 6

18 KXF00X6AA00 REGULATOR AR1000-M5B-X507 1

19 180GC183160 T-PULLEY 24-XL-050-AF-SZ(DA) 1

20 180GC183170 MOTOR MSMZ022A1F 1

21 KXF00MJAA00 BEARING 6900ZZ 2

22 180GC183210 MOTOR MSMZ042A1F 1

23 180GC183220 T-PULLEY 24-XL-075-AF-SZ(DA) 1

24 180GC183244 BOLT Hexagon head bolt M6×30L(all screws，no mark) 1

25 180GC183321 T-PULLEY 24-XL-075-BF-SZ(DA) 1

26 KXF05UDAA00 WASHER MSRB10-1.0 4

27 180GC183440 BOLT Hexagon head bolt M6×15L(no mark) 1

28 KXF07B1AA00 PH-SENSOR PM-K53-C1 1 A

29 KXF07B0AA00 PH-SENSOR PM-K53B-C1 5 A

30 180GC184130 T-PULLEY 24-XL-050-BF-SZ(DA) 1
