SP28P-DH - 第85页
1 KXFB00J9A00 PLATE 2 2 KXFB04HQA00 BRACKET 2 3 KXFB01ZRA00 SHAFT 2 4 KXFB01ZSA00 HOLDER 2 5 KXFB01ZTA01 PLATE 2 6 KXFB0066A00 PLATE 2 7 KXFB01ZUA00 HOLDER 2 8 KXFB01ZXA01 HOLDER 2 9 KXFB006EA01 HOUSING 4 10 KXFB006RA00 …
1 KXFB00J9A00 PLATE 2
2 KXFB04HQA00 BRACKET 2
3 KXFB01ZRA00 SHAFT 2
4 KXFB01ZSA00 HOLDER 2
5 KXFB01ZTA01 PLATE 2
6 KXFB0066A00 PLATE 2
7 KXFB01ZUA00 HOLDER 2
8 KXFB01ZXA01 HOLDER 2
9 KXFB006EA01 HOUSING 4
10 KXFB006RA00 PLATE 2
11 KXFB006SA00 PLATE 2
12 KXFB006TA00 PLATE 2
13 KXFB006UA00 PLATE 2
14 KXFB006VA01 COVER 2
15 KXFB0200A00 COVER 2
16 KXF085UAA00 COUPLING MOL-20-φ6×φ6 2
17 KXF073AAA00 WORM-WHEEL G80A 30+R1 2
18 KXF02AHAA00 KNOB KPF5-B 2
19 KXF072KAA00 BUSH LCB-5-5 4
20 1955C181340 WORM M=0.8 SUS(DA) 2
21 KXF03GDAA00 LM-SHAFT SFJ10-55 2
22 KXF028TAA00 WASHER K16 4
23 KXF07EGAA00 BEARING UP000 4
24 KXF09Y4AA00 KNOB KCF-24×M6-BK 2
25 1955C181403 BOLT HFMB6-40 2
26 KXF09WSAA00 PLUNGER BSZ6 2
27 KXF09XPAA00 PLUNGER BPNF6 4
28 KXF02XVAA00 D-PIN MS3-10 4
29
30
NO
番号
ＭＯ機番
ユニット名称

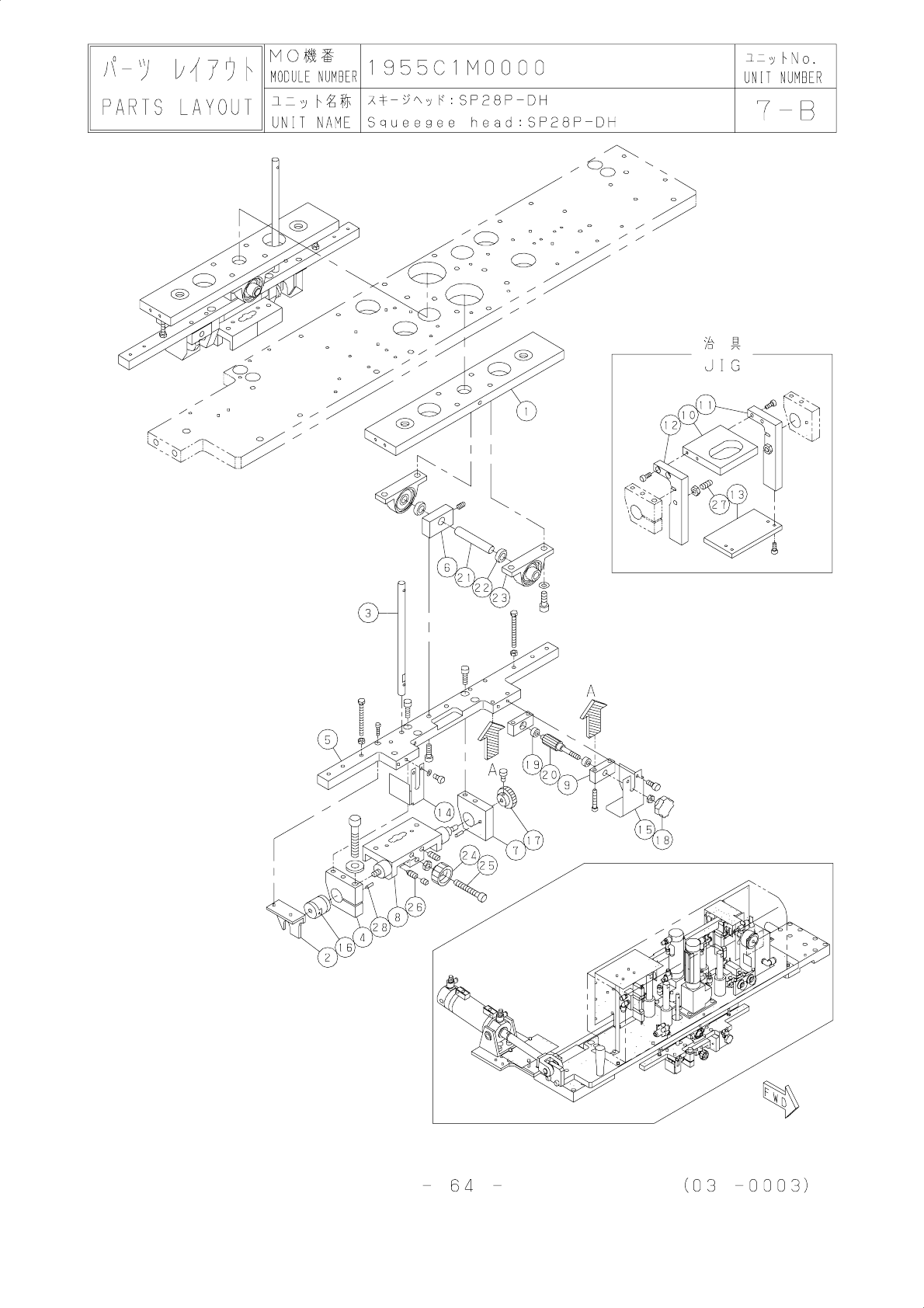

ｽｷｰｼﾞﾍｯﾄﾞ:SP28P-DH
UNIT NAME
PART NUMBER
品番 部品名 型式 数量 ﾗﾝｸ 備考
Squeegee head:SP28P-DH
PART LIST
MODULE NUMBER
パーツリスト
1955C1M0000
7-B
UNIT NUMBER
ユニットＮｏ.
PART NAME TYPE Q'TY RANK REMARKS
− −65 04 0003−（ ）
