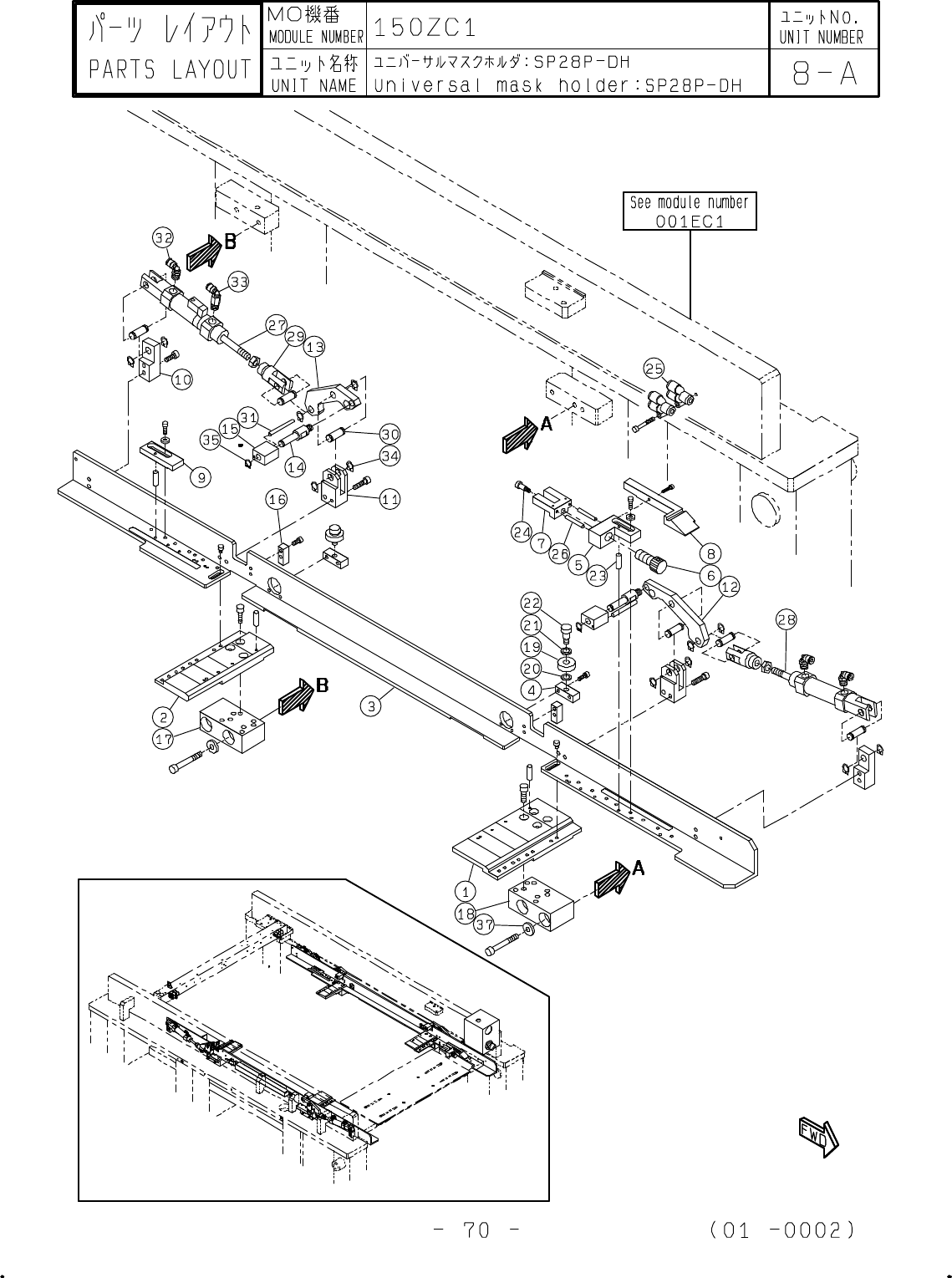

SP28P-DH - 第91页

1 150ZC111012 BRACKET 1 2 150ZC111022 BRACKET 1 3 150ZC111050 GUIDE 1 4 150ZC111110 BLOCK 2 5 150ZC111120 BLOCK 1 6 150ZC111130 BOLT 1 7 150ZC111140 PLATE 1 8 150ZC111152 GUIDE 1 9 150ZC111160 STOPPER 1 10 150ZC111190 BL…

1 150ZC111012 BRACKET 1

2 150ZC111022 BRACKET 1

3 150ZC111050 GUIDE 1

4 150ZC111110 BLOCK 2

5 150ZC111120 BLOCK 1

6 150ZC111130 BOLT 1

7 150ZC111140 PLATE 1

8 150ZC111152 GUIDE 1

9 150ZC111160 STOPPER 1

10 150ZC111190 BLOCK 4

11 150ZC111200 BLOCK 4

12 150ZC111210 LEVER 2

13 150ZC111220 LEVER 2

14 150ZC111230 SHAFT 4

15 150ZC111240 BLOCK 4

16 150ZC111250 BLOCK 2

17 150ZC111271 BRACKET 2

18 150ZC111281 BRACKET 2

19 KXF09UEAA00 BEARING 608DD 2

20 KXF05Z5AA00 WASHER MSRB8-1.0 2

21 KXF08Y5AA00 WASHER MSRB8-2.0 2

22 KXF08XVAA00 BOLT MSB8-10 2

23 KXF02XVAA00 D-PIN MS3-10 4

24 KXF09XSAA00 BOLT MSB6-10 1

25 KXF02DKAA00 JOINT KQU04-00 6

26 KXF02Y0AA00 D-PIN MS3-20 2

27 KXF0A70AA00 CYLINDER CDM2D20-25-C73S 1

28 KXF0A71AA00 CYLINDER CM2D20-25 3

29 150ZC181250 JOINT Y-020B 4

30 KXF05RQAA00 HINGE-PIN CDP-1 4
