FG-S01 1-02 1012-003 23 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 401 6300816334 PIPE FITTINGS 1 806TLA1 10030-A001 225F0353 402 6300037661 PIPE FITTINGS 1 806TLA1 10030-A002 225F0055 407 6301402307 COVER…

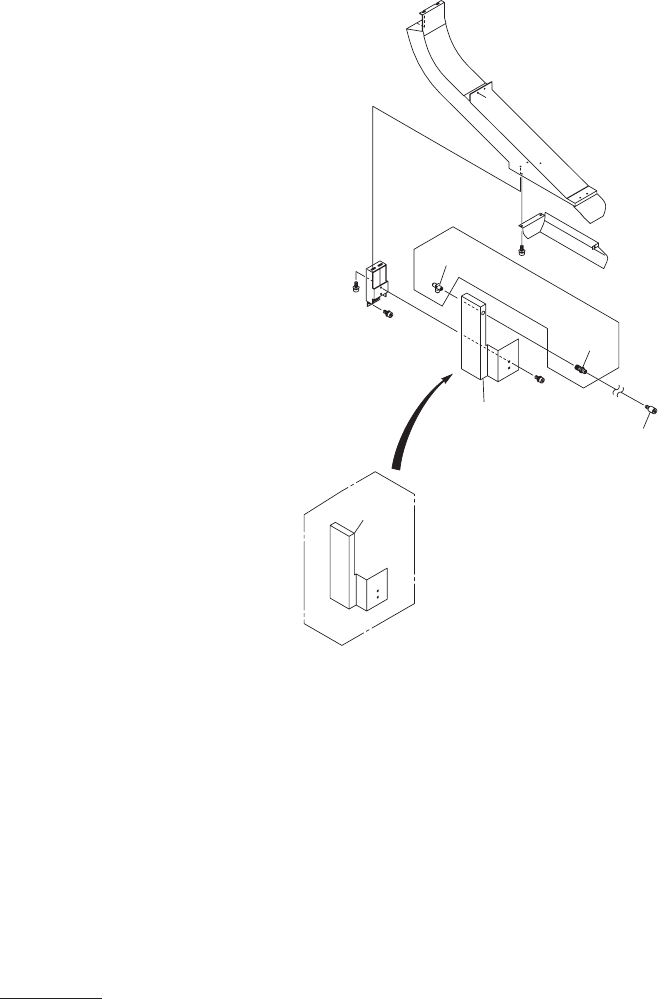

FG-S011-01
0608-001
22
417
407
EXCHANGE
ADD
FG-S006-01
402
401
FX-G200
See Fig.FX-3
Key No.218
エア分岐配管追加
Additional Piping to Branch Air
FG-S011-01
( 左奥、右前）
FG-S011-01 (Left-Rear,Right-Front)
Fig. B-5
本体部 - 排出部
Main Body Section-Discharger
FG-S011-02
1012-003
23
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
401 6300816334 PIPE FITTINGS 1
806TLA110030-A001
225F0353
402 6300037661 PIPE FITTINGS 1
806TLA110030-A002
225F0055
407 6301402307 COVER 1→0 FG-S006-01
806TLA110020-A107
211AA138
417 6301498492 COVER 1
806TLA110030-A107
211AB174
B-5

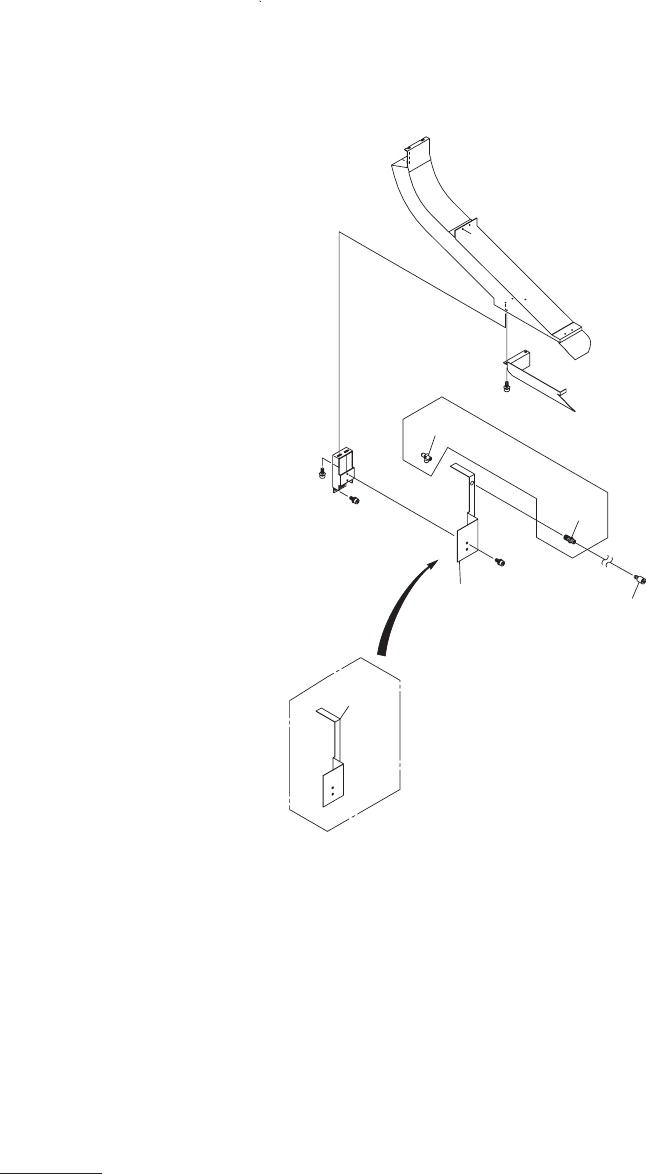

FG-S011-02
0608-001
24
417
407
EXCHANGE
FG-S006-02
ADD
402
401
FX-G200
See Fig.FX-3
Key No.218
エア分岐配管追加
Additional Piping to Branch Air
FG-S011-02
（左前、右奥）
F
G-S011-02(Left-Front,Right-Rear)
Fig. B-5
本体部 - 排出部
Main Body Section-Discharger
