FG-S005-01 1004-003 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 101 6301281315 MOTOR,AC-SER VO 1 -M01 806TR-1 10-201 4M150213 105 6301286617 BRACKET 2 806TR-1 10-105 21 1F8580 106 6301286624 BRACKET 2 806TR…
FG-S005-01
0805-001
173
172
.
156
.
173
172
.
156
.
167
166
.
152
.
169
168
.
154
.
175
174
.
162
.
175
174
.
162
.
175
174
.
162
.
175
174
.
162
.
167
166
.
152
.
167
166
.
152
.
169
168
.
154
.
167
166
.
152
.
171
170
.
155
.
171
170
.
155
.
135
143
161
121
105
121
106
144
151
151
108
122
121
106
122
121
105
109
101
113
1
12
1
11
153
136
144
143
161
125
116
137
125
126
163
125
163
126
187
187
116
125
1
17
124
120
123
1
19
123
1
18
145
130
117
124
137
注) Key No.121,122,130(○印)は重要保守部品となっております。交換方法について
は高度な技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No.121 and 122 and 130 (with a circle) is an important maintenance
component.
Because high-grade technique is required for the r
eplacement of this component,
consult our service personnel.
186
185
.
184
.
183
182
.
181
.
132
131
133
131
186
185
.
184
.
183
182
.
181
.
133

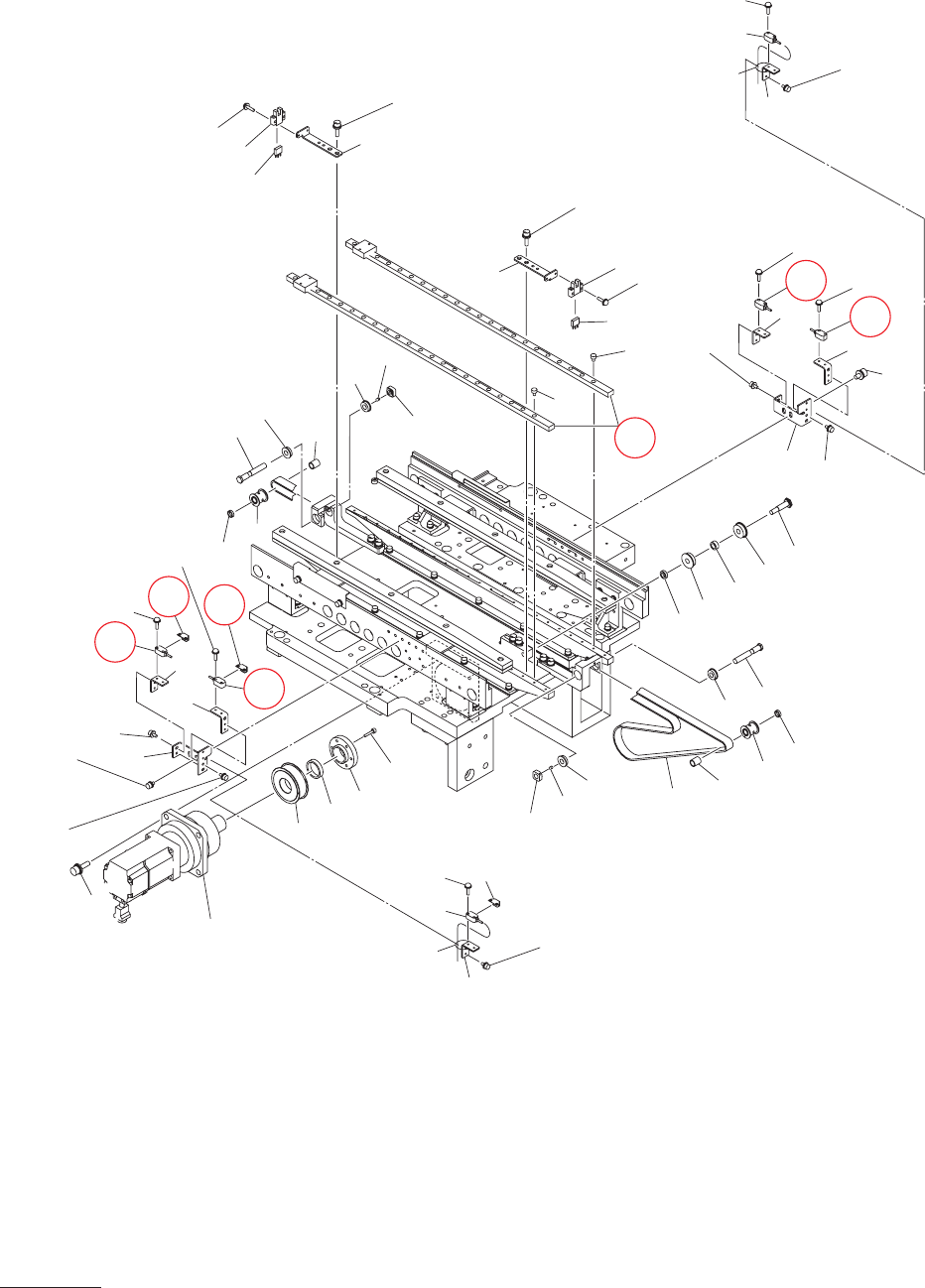

トラバース部
(FG-S005-01)
TRAVERSE SECTION(FG-S005-01)
Fig. TR-2
トラバース駆動部
Traverse Driving Section
TR-2 illust-1
FG-S005-01
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
101 6301281315 MOTOR,AC-SERVO 1 -M01 806TR-110-201 4M150213
105 6301286617 BRACKET 2 806TR-110-105 211F8580
106 6301286624 BRACKET 2 806TR-110-106 211F8581
108 6301300856 BRACKET 1 806TR-110-108 211F8804
109 6301300863 BRACKET 1 806TR-110-109 211F8805
111 6301281322 COUPLING 1 806TR-110-211 223C0205
112 6301281339 COUPLING 1 806TR-110-212 223C0206
113 6301280912 PULLEY,TIMING 1 806TR-110-213 223Q0577
116 6301299273 SHAFT 2 806TR-110-011 213A1099
117 6301299266 COLLAR 2 806TR-110-012 216A1179
118 6301233222 SHAFT 1 806TR-110-020 213A1015
119 6301233079 COLLAR 1 806TR-110-021 216A1115
120 6301233086 COLLAR 1 806TR-110-022 216A1116
121 6300892079 SENSOR,PELEC 2 -B0417,-B0418
806TR-110-221 23G00182
122 6300892086 SENSOR,PELEC(SLIT) 2 806TR-110-222 23G00183
123 6300969009 BEARING,RADIAL 2 806TR-110-223 222D0343
124 6301281094 PULLEY,TIMING 2 806TR-110-224 223Q0578
125 6300011715 BEARING,RADIAL 4 806TR-110-225 222D0050
126 6300050851 BEARING,PARTS(LOCK NUT) 2 806TR-110-226 222G0014
130 6301292601 GUIDE,LINEAR 2 806TR-110-230 222L0718
131 080694A3 ASSY_SENSOR 1 806TRA110050-A001 080694A3
132 6300892086 SENSOR,PELEC(SLIT) 1 806TRA110050-A002 23G00183
133 6301320489 BRACKET 2 806TRA110050-A003 211F9075
135 6301303659 BRACKET 1 806TR-110-035 211F8830
136 6301284361 BRACKET 1 806TR-110-036 211F8552
137 6301299259 COLLAR 2 806TR-110-043 216A1178
143 6300000245 SENSOR,PHOTO 2 -B0101,-B0102
806TR-110-243 23G10001
144 6300000269 SENSOR,PHOTO(CONNECTOR) 2 806TR-110-244 23G10003
145 6301292175 BELT,TIMING 1 806TR-110-245 223L0276
151 6300007497 BOLT,HEX-SCT 48 M3X4 221A0004
152 6300007503 BOLT,HEX-SCT 8 M3X6 221A0005
153 6300007664 BOLT,HEX-SCT 6 M4X20 221A0021
154 6300007732 BOLT,HEX-SCT 4 M5X8 221A0028
155 6300007893 BOLT,HEX-SCT 4 M6X20 221A0044
156 6300008029 BOLT,HEX-SCT 4 M8X25 221A0057
161 4110406202 SCR PAN 3X10 4 M3X10 PAN 221E0488
162 4110407803 SCR PAN 3X12 8 M3X12 PAN 221E0489
163 6300008883 SET SCREW 2 M3X4 SET 221C0001
166 4111412806 WASHER SPR 3 8 SW3 221H0281
167 4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
168 4111416705 WASHER SPR 5 4 SW5 221H0287
169 4111414107 WASHER V 5X10X1 4 FW5 221H0318
170 4111413001 WASHER SPR 6 4 SW6 221H0289
FP-G100R
FG-S005-01
TR-2
TR-2 list-1
FG-S005-01
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
171 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
172 4111413100 WASHER SPR 8 4 SW8 221H0291
173 4111414503 WASHER V 8X17X1.6 4 FW8 221H0323
174 4110864408 WASHER SPR 3 8 SW3 F 221H0280
175 4111191909 WASHER V 3X7X0.5 8 FW3 F 221H0311
181 6300007503 BOLT,HEX-SCT 4 M3X6
806TRA110050-A101
221A0005
182 4111412806 WASHER SPR 3 4
806TRA110050-A102
221H0281
183 4111413902 WASHER V 3X7X0.5 4
806TRA110050-A103
221H0312
184 4110407803 SCR PAN 3X12 4
806TRA110050-A104
221E0489
185 4110864408 WASHER SPR 3 4
806TRA110050-A105
221H0280
186 4111191909 WASHER V 3X7X0.5 4
806TRA110050-A106
221H0311
187 23N30737 ACCESSORY_WIRIN 2 23N30737
FP-G100R
FG-S005-01
TR-2
TR-2 list-2
