9 WF3 JTF-ML2 Maintenance Mount tower back onto TX machine 5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31
Wear Part: Consumables:
www.asm-smt.com
1 Hold JTF at the two handles. 2 Hook in the tower. 3 Fasten the tower with two screws.
www.asm-smt.com
10 WF3 JTF-ML2 Maintenance Mount conveyor back onto TX machine 5 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T69
Wear Part: Consumables:
www.asm-smt.com

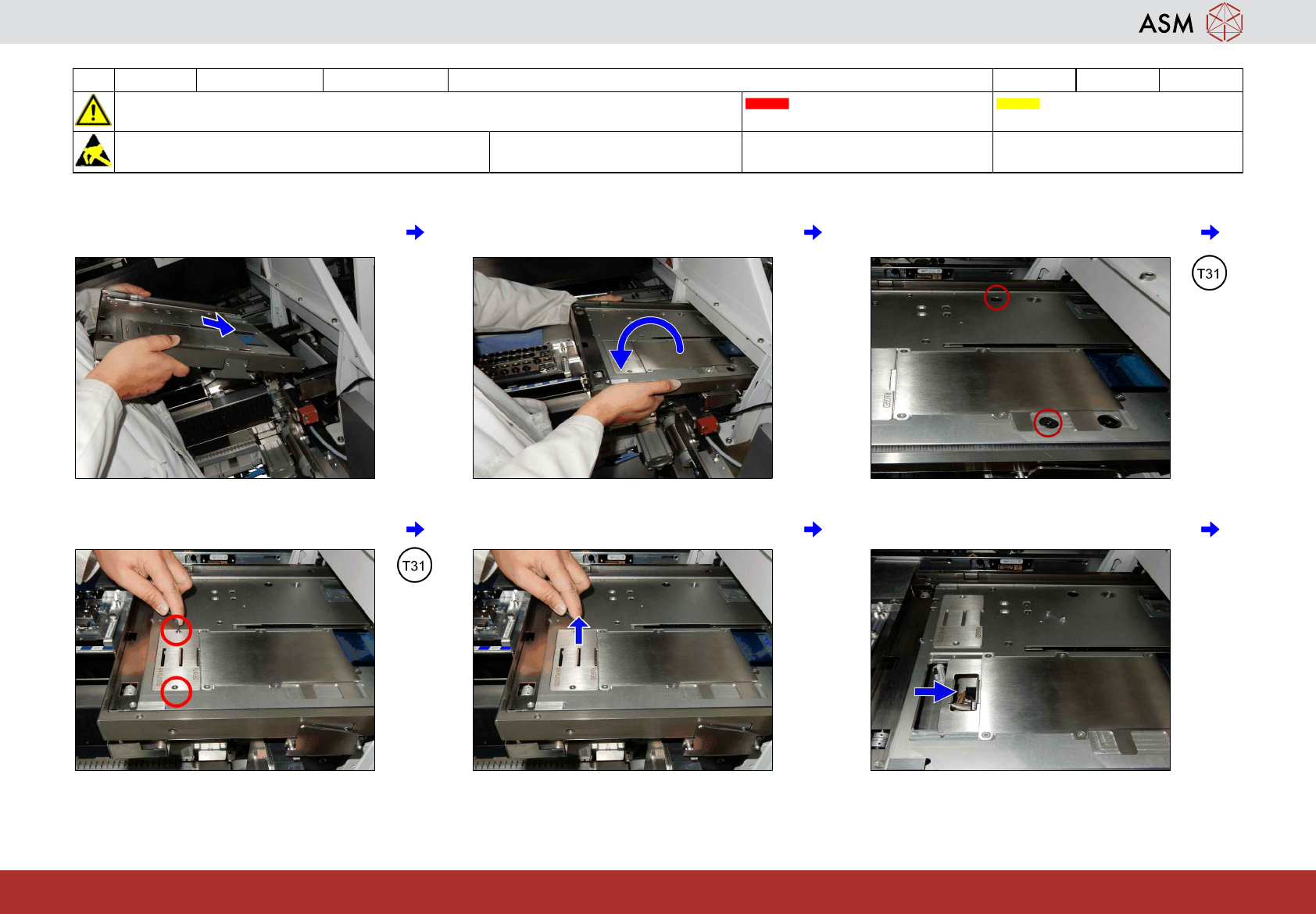

1 Insert conveyor into the pivot. 2 Swing the conveyor down onto the JTF-
ML2 adapter.
3 Tighten the two screws.
4 Remove the two screws. 5 Remove the cover. 6 Push the plate until end position.
