4-50 4 Making the dispensing stable 5.4.1 Setting method Make the machine data setting to use this retry function. Enter the retry count. On the [Machine] - “Machine Data” – “Dot Station / Position” screen, enter the r e…
4-49
4
Making the dispensing stable
n
Clearing the correction amount
To clear the correction amount when a recognition error occurs in position correction dispensing:
If the message “Ea13001: Position Correct Dispense Failure” appears, press the [RESET] button on the operation panel.
To clear the correction amount during predispensing retry:
On the retry selection screen, place a check in the “Correction clear” check box and then press the [Retry] button or
press the [Reset] button.

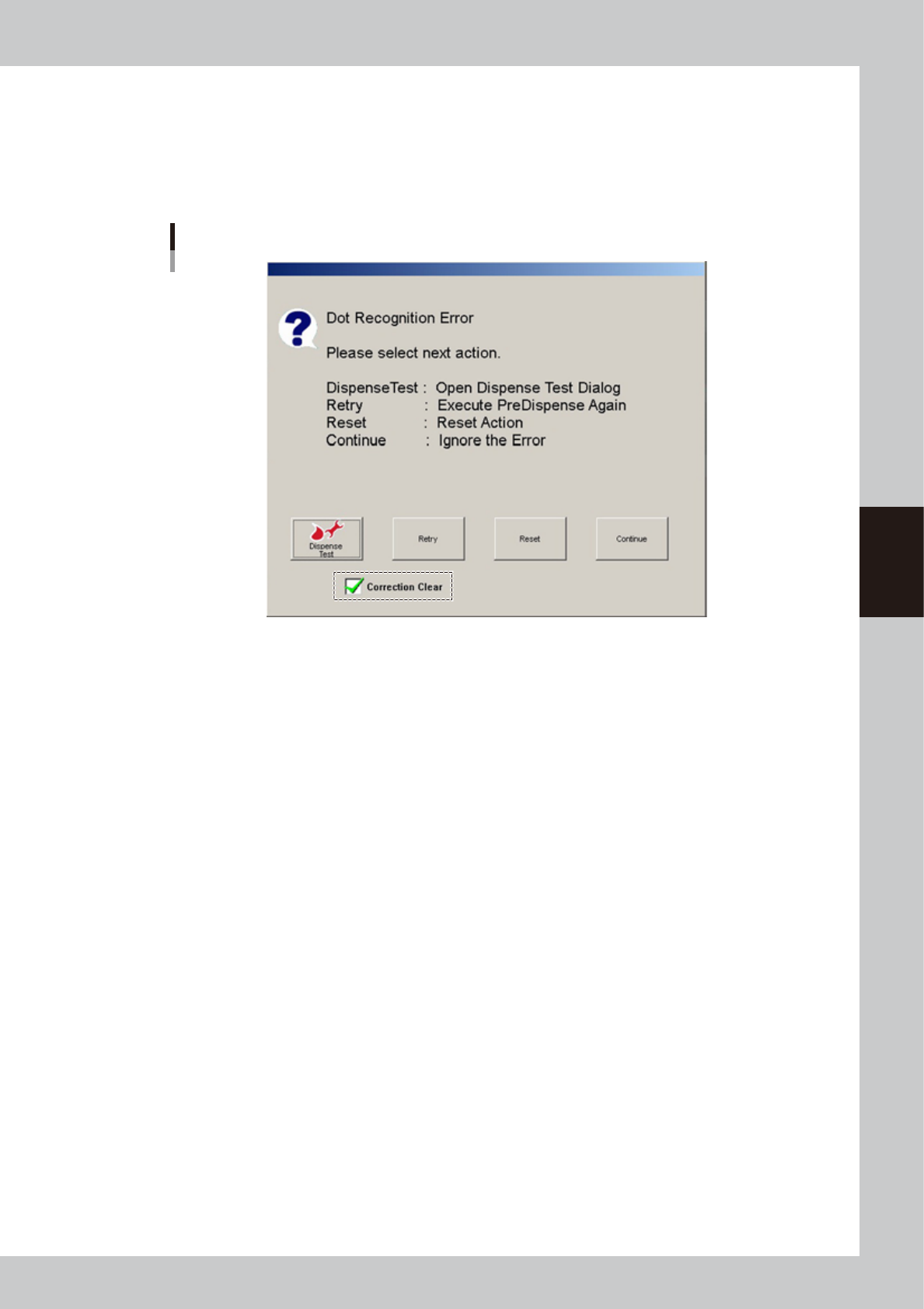

Retry selection screen
64449-N7-00
4-50
4
Making the dispensing stable
5.4.1 Setting method
Make the machine data setting to use this retry function.
Enter the retry count.

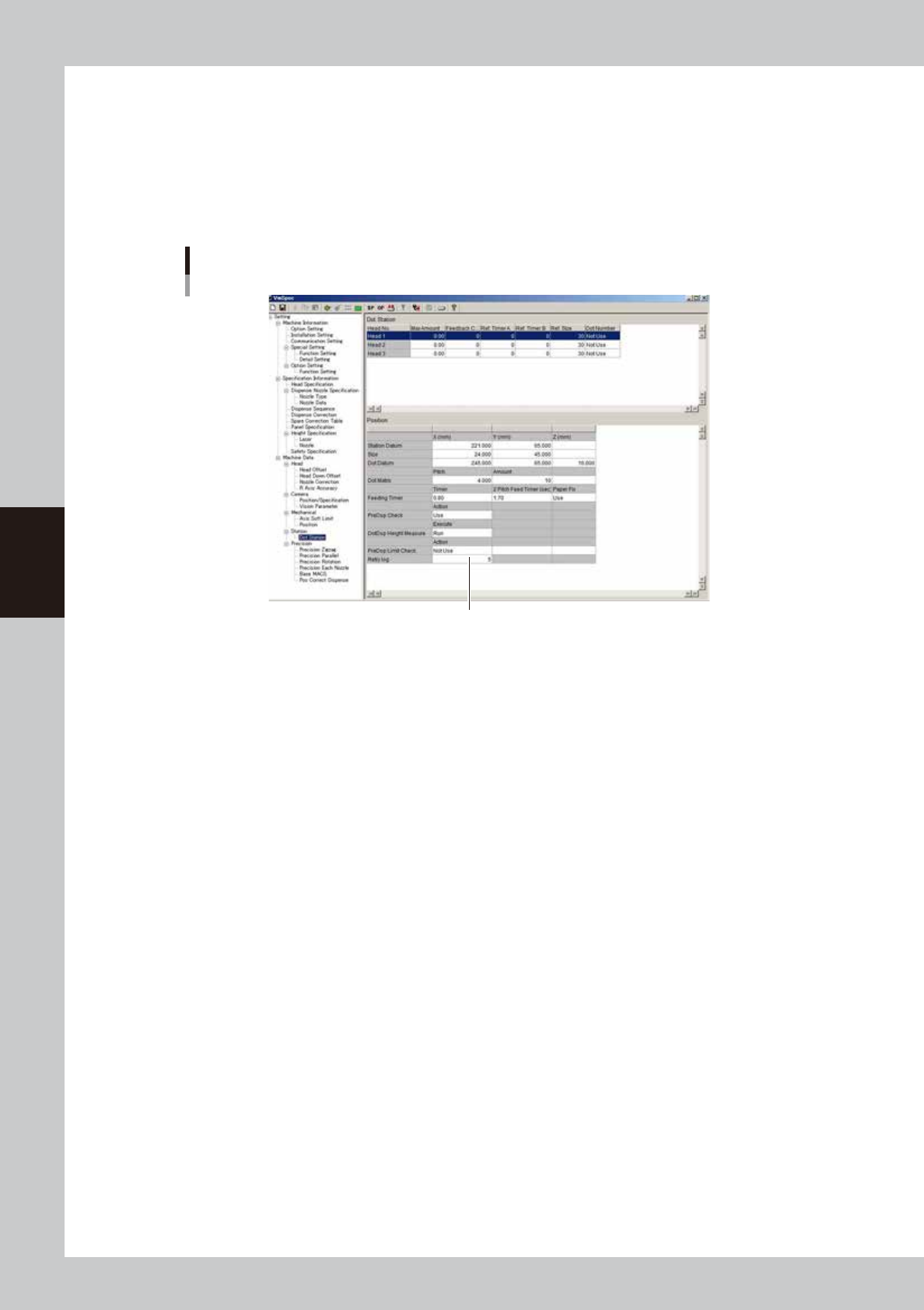

On the [Machine] - “Machine Data” – “Dot Station / Position” screen, enter the retry count in “Retry
log”.
The setting range is 0 to 14. If set to “0”, no retry will be performed. (Recommended retry count: 5)
Retry count
Enter the retry count.
64450-N7-00
4-51
4
Making the dispensing stable
6. Editing a dispense sequence
If the diameter of dots dispensed on the board is not constant or if adhesive stringing occurs or dots are
slanted, you must edit the dispense sequence to perform stable dot dispense.
This section explains how to edit the dispense sequence.
6.1 Performing a predispensing test
Dispensing dot conditions usually differ depending on the type of adhesive. To maintain optimum dispensing,
we recommend performing a predispensing test with the default settings and then check the current conditions
regarding the following points.
• Does the stopper make proper contact with the board?
• Does adhesive stringing occur when the nozzle moves up?
• Are dispensed dots uniform in size and shape?
If any of the above symptoms occur, edit the dispense sequence. This will enable stable dispensing operation.
6.2 Editing the dispense sequence
The dispense sequence is used to eliminate variations in dispensing that occurs due to component and adhesive
type or to improve cycle time by changing the dispense timing and ascent speed. This will allow the machine
to perform stable dispensing on the board.
n
NOTE
Before editing, we recommend making a system backup or making a note of the settings so that you can restore
them when needed.
1
Open the dispense sequence edit screen.
Press the [Dispense Sequence] button on the Setup screen.

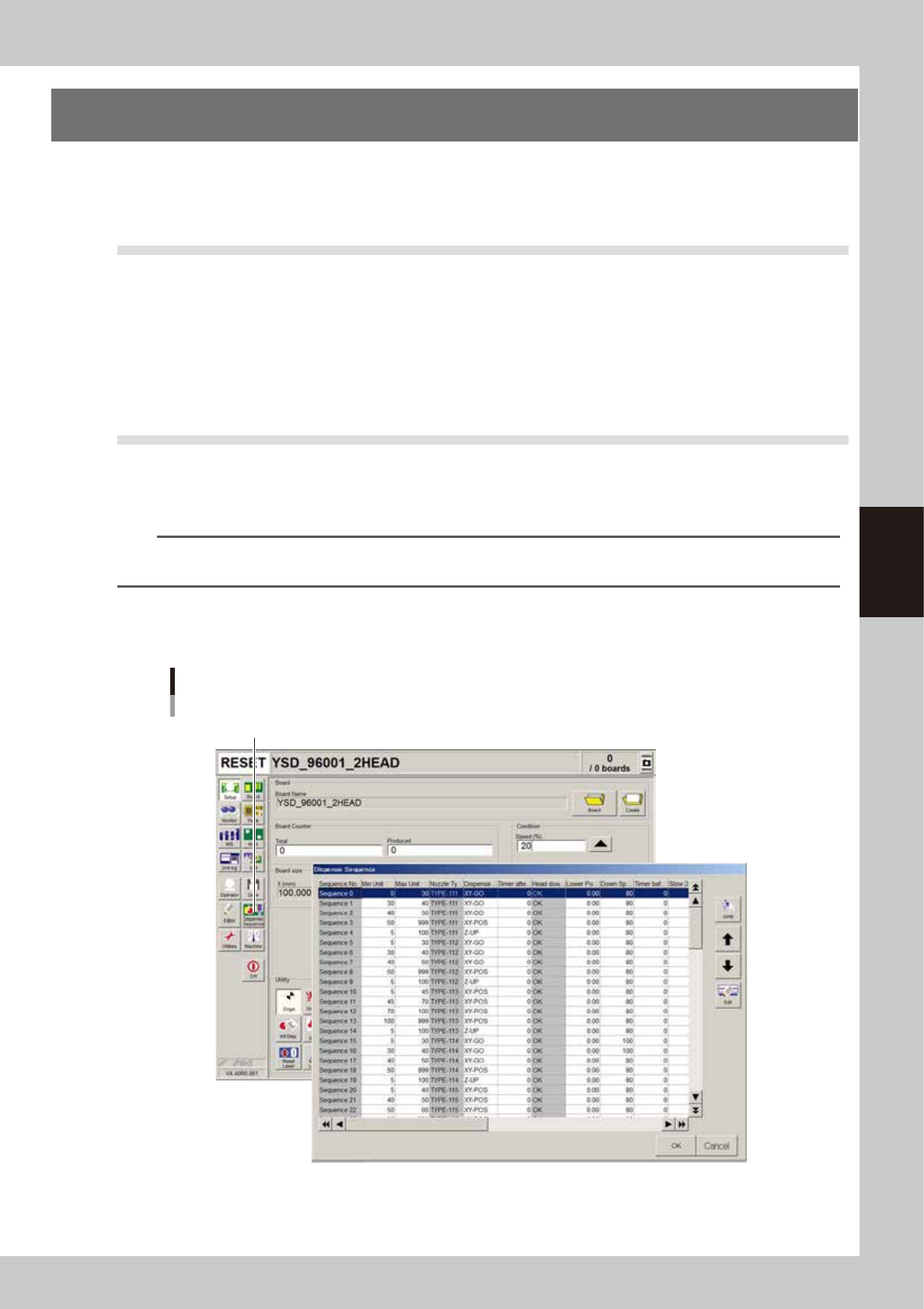

Setup screen
[Dispense Sequence] button
64451-N7-00
