5-12
5
Creating the board data

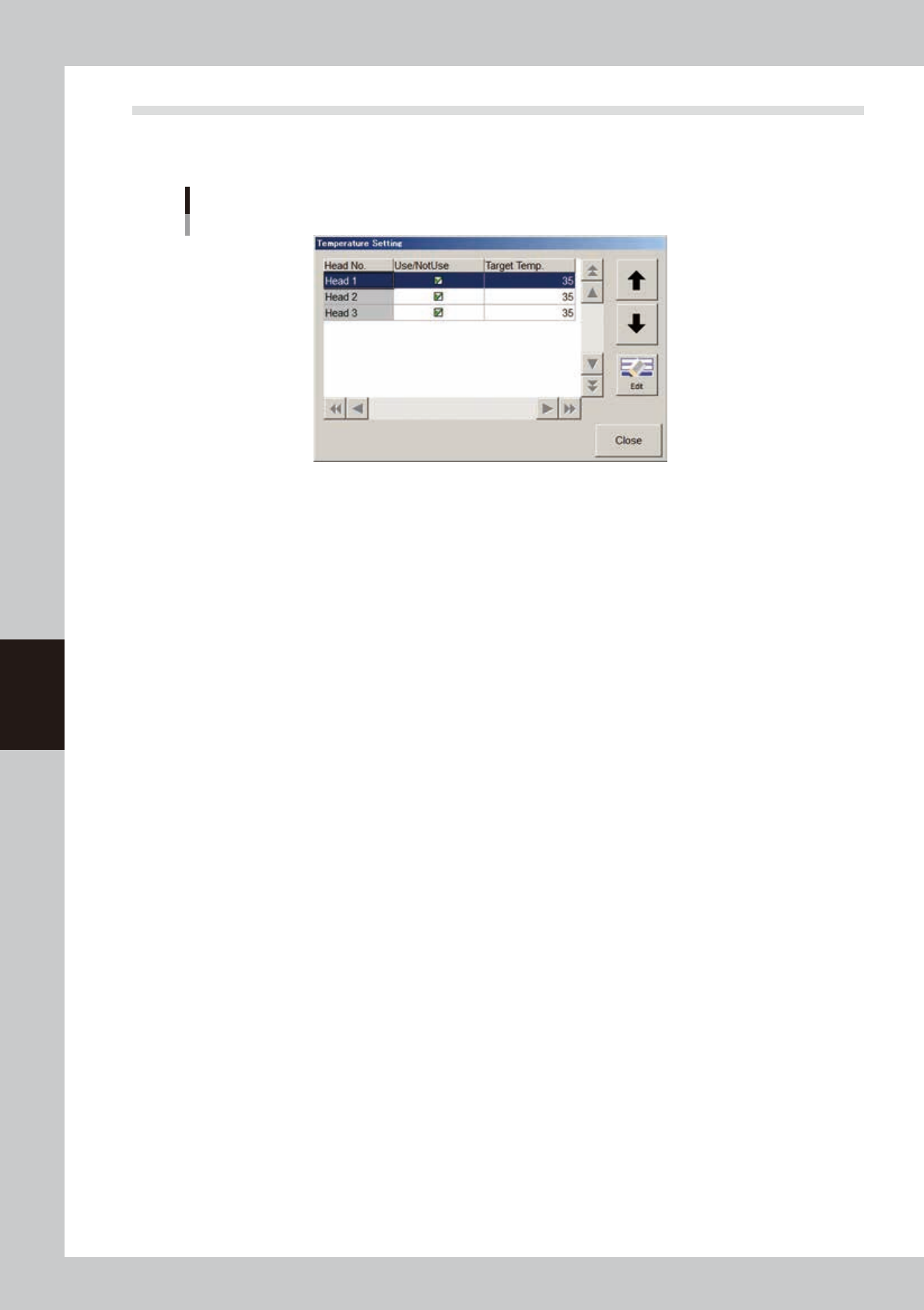

3.2 Temperature setting
On the Setup screen, press the [Temp. Setting] button to open the “Temperature Setting” dialog box and set the
temperature that matches the adhesive bond to use.
Temperature setting
64558-N7-00
Use/Not Use
Place a check in the check box when using temperature setting.
Target Temp.
Enter the temperature you want to set. (Setting range: from ambient temperature to 50°C)
5-13
5
Creating the board data

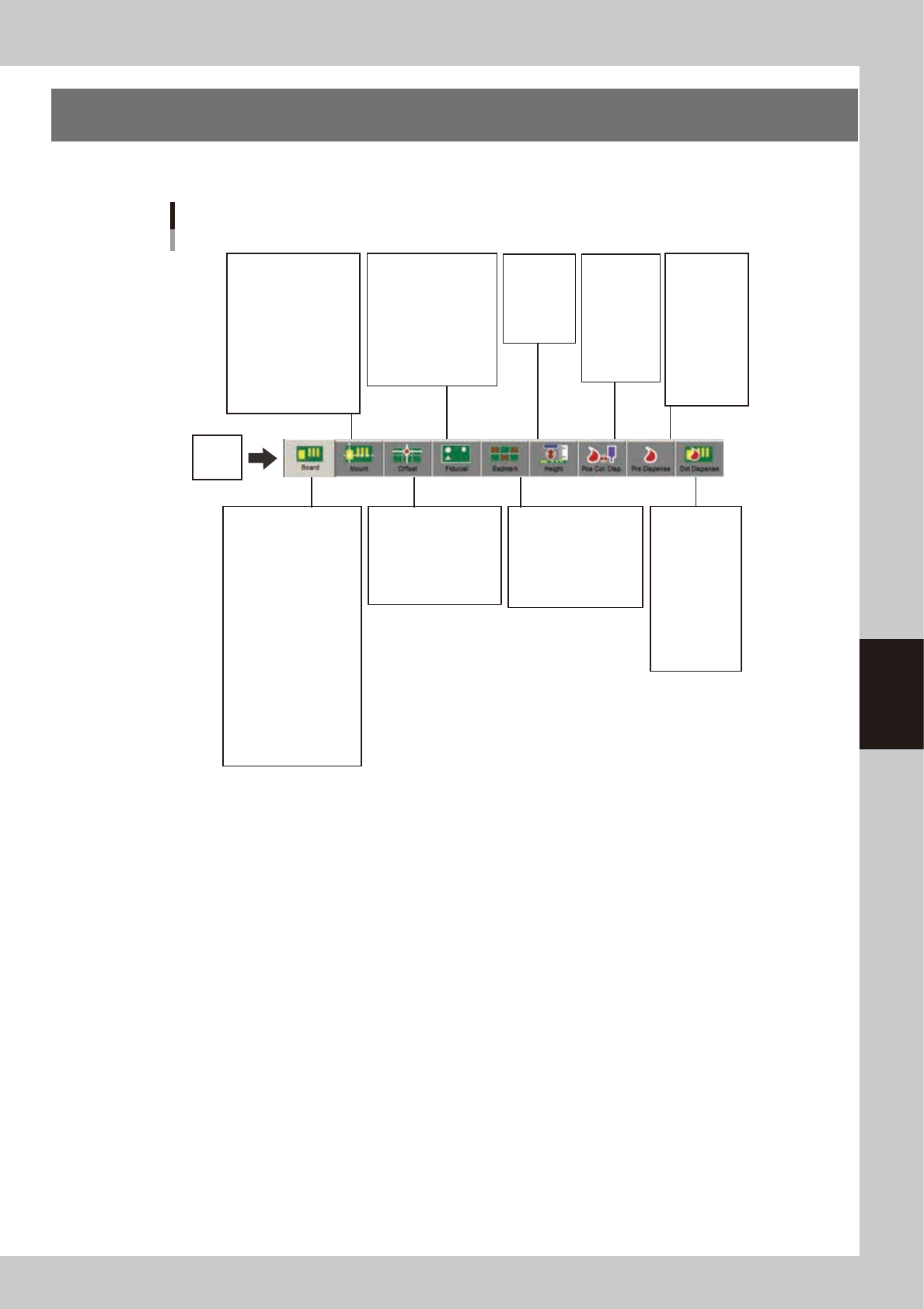

4. Creating the board information
This section describes how to create board information such as for board size and production methods.
Board
Board data parameters
Data No.
Pattern Name
Skip
X, Y, R
P. No.
Part Name
Head
Bad.
Fid.
Original Block No.
Data No.
Pattern Name
Type
Skip
X, Y, R
Original Block No.
Data No.
Pattern Name
Type
X1, Y1
Mark 1
X2, Y2
Mark 2
Original Block No.
Data No.
Pattern Name
Type
X, Y
Mark
Original Block No.
Board Size XY
Board Size Height
Board Comment
Prod. Board Counter
Prod. Board Count Max.
Prod. Block Counter
Unloader Counter
Unloader Count Max.
Board Fix Device
Pre Fix Timer sec
Trans Height
Conveyor Timer sec
Dot Checking
Refresh Dispense
Conveyor Motor Speed
Conveyor Transfer Way
Data No.
Pattern Name
Skip
Qty.
Head
Sequence
X, Y, R
Mark
Feedback
Data No.
Pattern Name
Skip
Qty.
Head
Sequence
X, Y, R
Fid.
Bad.
Height
Data No.
Comment
Mode
Mark
X, Y
Data No.
Pattern Name
Skip
Qty.
Head
Sequence
X, Y, R
Mark
64304-N7-00
5-14
5
Creating the board data

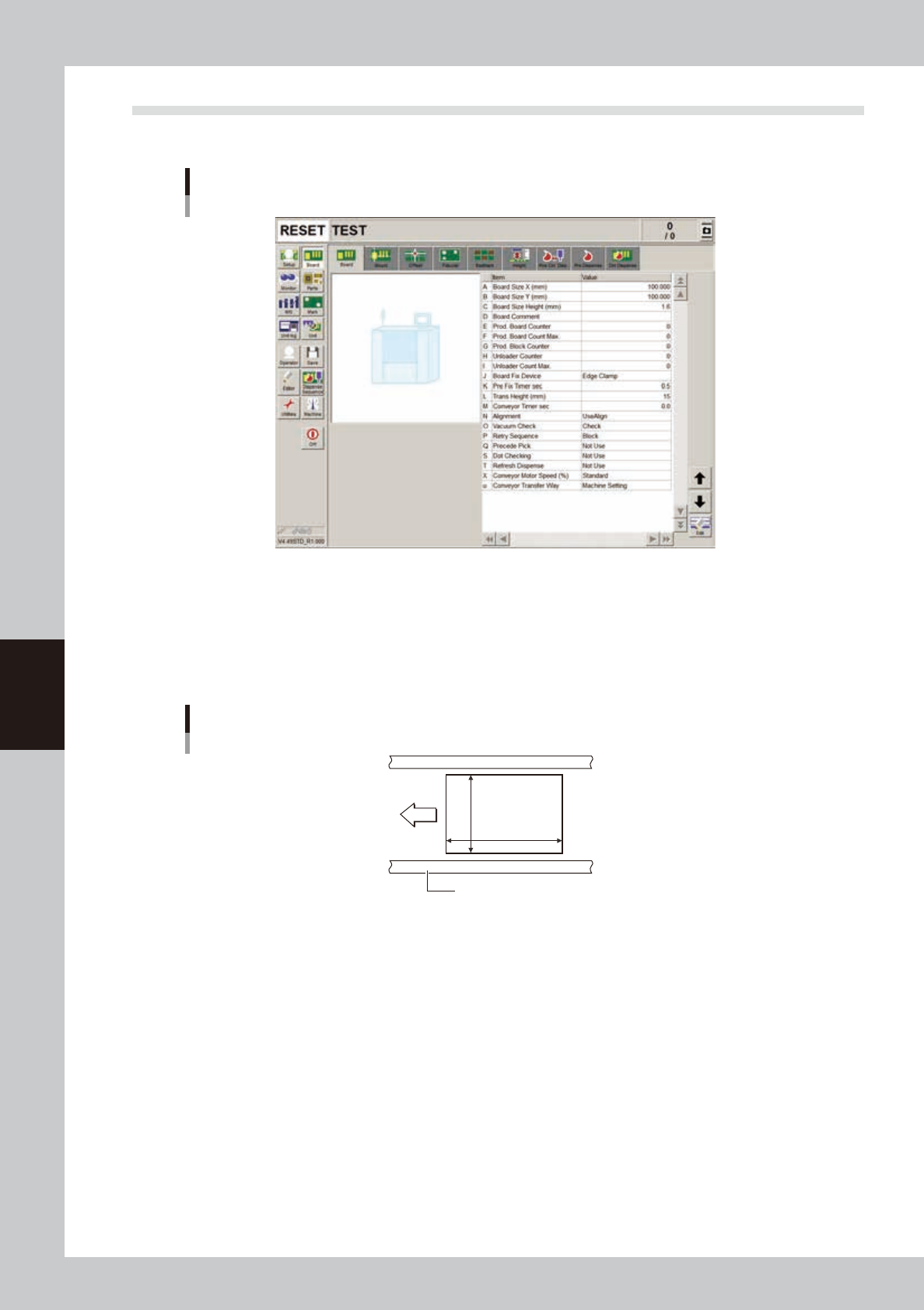

4.1 Board parameters
Selecting the [Board] tab opens the screen that allows you to set or check the following board parameters.
Board parameter screen
64505-N7-00
A, B: board Size XY
Enter the length of the board in the XY directions in millimeters. The conveyor width (W-axis) will be adjusted according
to the Y length in automatic operation.
X: Length in the board flow direction
Y: Length in the conveyor width direction
Board Size
X [mm]
Y [mm]
Board
Board flow direction
Conveyor rail
64301-N7-00
C: Board Size Height
Enter the thickness of the board in millimeters.
D: Comment
You can enter a comment for the board as necessary.
E: Prod. board Counter
Enter the number of boards already produced. Set this value to “0” as a start.
F: Prod. board Count Max.
Enter the number of boards that you want to produce. When this is set to “0”, the machine continues to produce boards
as long as they are fed on the conveyor.
G: Prod. Block Counter
Enter the number of blocks on one board when producing multi-block boards.
H: Unloader Counter
Specify the number of boards transferred into the unloader. Set this value to “0” as a start.
